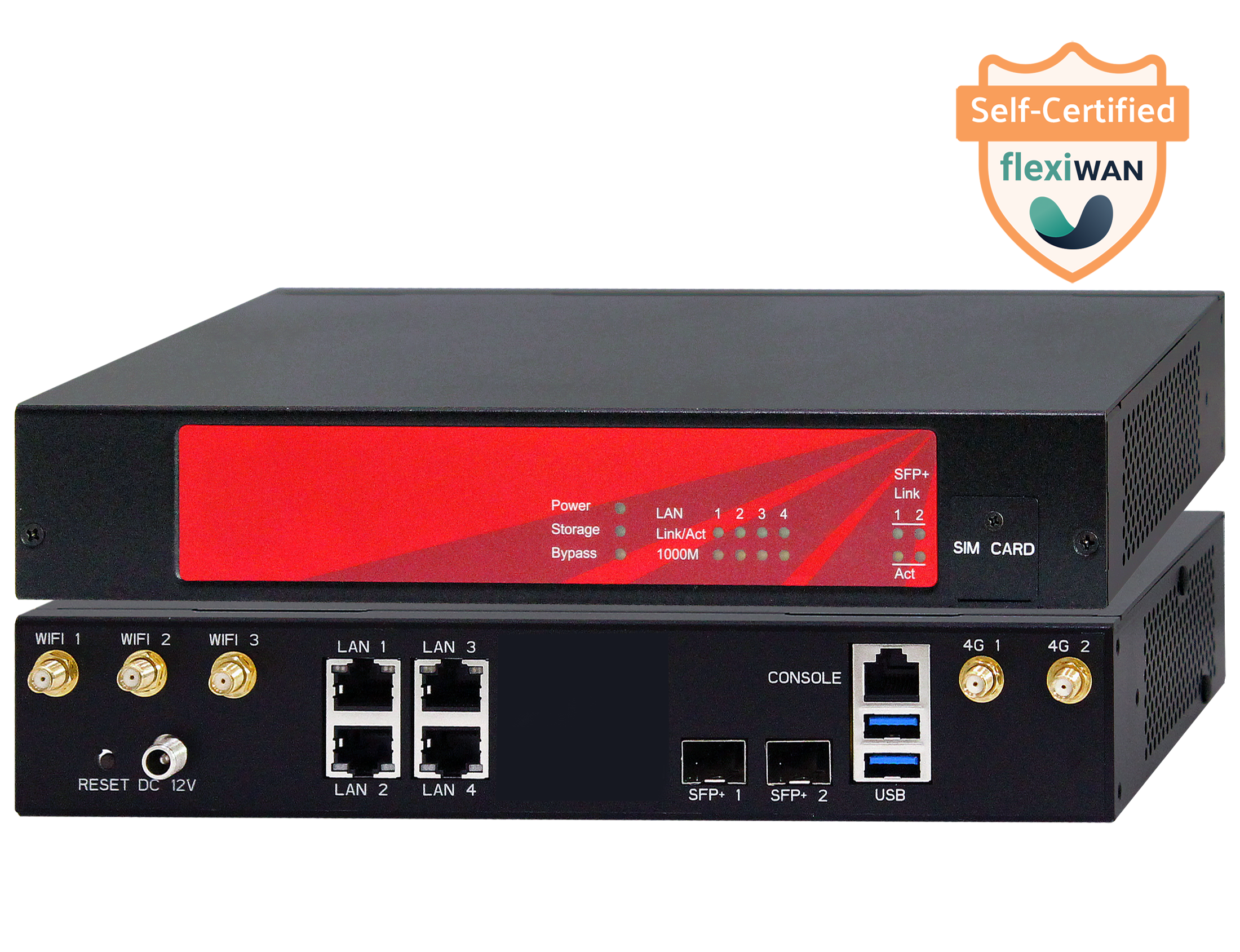

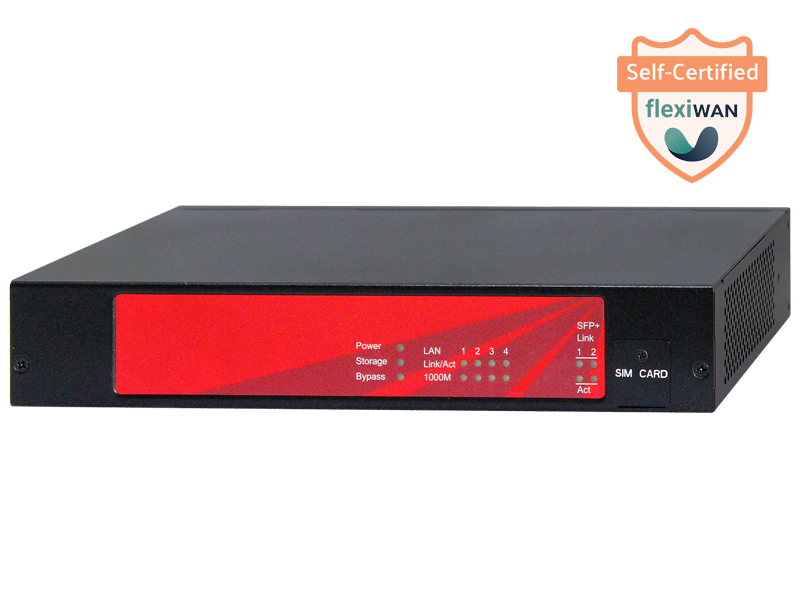

Intel® Denverton Platform, Desktop Networking Appliance.
Acrosser recommended fixiwan on AND-DNV3N1, and AND-DNV3N1 is tested and certificated by flexiwan.
1. Intel® Denverton C3000 Platform
2. 1 x SO-DIMM DDR4
3. Fanless Design
| System |
| CPU | Intel® Atom® C3308/C3558 Processor (2/4 core) |
| Chipset | Intel® Denverton SoC |
| Memory | 1 x SO-DIMM DDR4 |
| BIOS | AMI |
| WatchDog Timer | Software programmable 0~255 sec. |
| Ethernet |
| Chipset | Intel® i210 |
| Connector | 2 x 10GbE Fiber (SFP+) (for C3558) 4 x GbE Copper (RJ-45) |
| LAN bypass | 1 x pair |
| Storage |
| HDD Bay | 1x 2.5" SSD bay |
| I/O |
| Console Port | 1 x Serial console (RJ-45), |
| USB port | 2 x USB 3.0 |
| Antenna port | 4 x SMA for WLAN (IEEE 802.11a/b/g/n/ac) |
| GPIO | 8-bit GPIO (4-In, 4-Out), on-board pin header |
| Expansion | 1 x Mini PCIe Socket, For WiFi5 (for C3558) 1 x M.2B Socket with dual SIM sockets |
| Others |
| Battery | Lithium Battery, 3V 220mAH (CR2032) |
| Hardware Monitoring |
CPU Volt. CPU & SYS Temp.. |
| Security | TPM 2.0 (Infineon chipset) |
| QAT & DPDK | Support QAT & DPDK |
| Power Requirement |
| Power Supply Unit | 12V(40W) |
| Software |
| OS Support | Linux Kernel 4.8 or above, (64-bit) |
| Mechanical & Environment |
| Dimensions | 250 (W) x 44 (H) x 165 (D) mm |
| Operating Temp. | 0~ 40°C (32~104°F) |
| Storage Temp. | -20~80°C (-4~176°F) |
| Relative Humidity | 0 to 90% @40°C, non-condensing |
| Certifications | CE, FCC Class A, RoHS 2, cULus |
| Model Name |
| AND-DNV3N1-02 | Desktop Networking Appliance Intel® Denverton-NS platform 4 x GbE Copper 40W AC Adppter 1x 2.5" SSD Bay, 2x USB 2.0 1x M.2 B key socket for 4G |
| AND-DNV3N1-04F | Desktop Networking Appliance Intel® Denverton-NS platform 4 x GbE Copper；2x 10GbE Fiber 40W AC adapter 1x 2.5" SSD Bay, 2x USB 3.0 1x Mini PCIe socket for WiFi 1x M.2 B key socket for 4G or SSD |
| Packing List |
| ● AND-DNV3N1 system x 1 |
| ● SATA cable x 1 |
| ● USA / EU / JPN / UK / AS / NZS / SA / power cord x 1 |
| ● Box packing x 1 |
| ● Screw for bracket (HDD bracket) x 14 |
| Ordering Information |
|
AND-DNV3N1-02 |
Desktop Networking Appliance Intel® Denverton-NS platform 4 x GbE Copper 40W AC Adppter 1x 2.5" SSD Bay, 2x USB 2.0 1x M.2 B key socket for 4G |
|
AND-DNV3N1-04F |
Desktop Networking Appliance Intel® Denverton-NS platform 4 x GbE Copper；2x 10GbE Fiber 40W AC adapter 1x 2.5" SSD Bay, 2x USB 3.0 1x Mini PCIe socket for WiFi 1x M.2 B key socket for 4G or SSD |
Specifications are subject to change without notice.
