| Description |

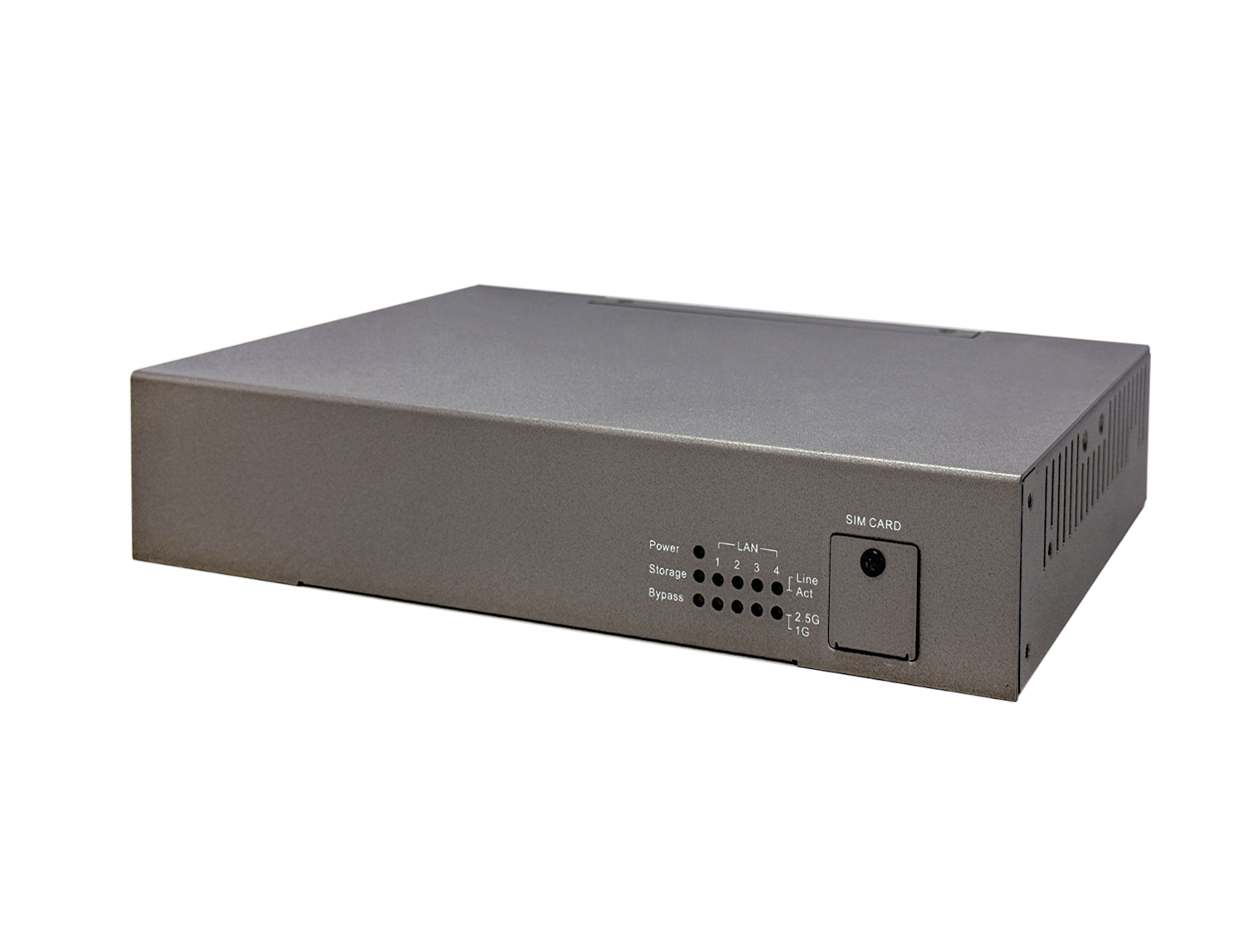

The NSA-50A1 Desktop Network Appliance is an entry-level CPE tailored for software companies, internet providers, and small businesses. Powered by the Intel Atom™ C3338R Processor, it integrates Intel QuickAssist Technology (QAT) for efficient encryption and compression, delivering reliable performance across LAN, firewall, and security gateway applications.
Secure and Reliable Processing
Intel QuickAssist Technology accelerates data encryption and compression, ensuring secure transmissions while maintaining system performance for other critical functions. Additionally, the TPM 2.0 chip provides robust hardware-level security, safeguarding sensitive operations.
Flexible Connectivity
Designed for versatility, the NSA-50A1 suits SMBs, home offices, cafes, or small hotels needing networks to support multiple devices. Its 4 x 2.5 GbE Ethernet ports with DPDK support enable direct memory access, low latency, and high throughput for demanding networking tasks. Wireless connectivity is also supported via:
1 x M.2 2230 E Key for Wi-Fi
1 x M.2 3042/3052 B Key for LTE/5G
Versatile Applications
From enhancing VPN performance for remote workers to powering edge computing or serving as a uCPE platform, the NSA-50A1 delivers reliable and consistent results across a range of applications.
| I/O Connectors |
| Ask an Expert > |
|
   3.gif) |
| Features |
| • Intel® Atom® Processor C3338R • 1 x DDR4 SO-DIMM • Optional DC-IN 12V single power / Dual power • TPM 2.0 • Optional 4G LTE, 5G, WiFi • 1 x Serial console • Smart Fan design |
| |
| System |
| CPU | Intel® Atom® Processor C3338R |
| Memory | 1 x DDR4 ECC SODIMM |
| Storage | 1 x 2.5” Internal HDD Bay |
| Real Time Clock | Lithium Battery, 3V 220mAH (CR2032) |
| Security | TPM 2.0 |
| Thermal Design | Smart Fan Design |
| Operating System | Linux Kernel 5.15 LTS & above (64-bit) |
| Support Protocol | Support QAT&DPDK |
| Power Supply |
| Power Requirement | Input voltage: 12VDC |
| Power Consumption | 40 W (typical) |
| Power Connector | 1 or 2 x 5.5mm x 2.1mm DC input, connectors (optional) |
| Environmental and Mechanical |
| Dimension | 215mm(W) x 143mm(D) x 44mm(H) |
| Weight | 1.2 kg |
| Operating Temperature | 32 °F ~ 104 °F (0 °C ~ 40 °C) |
| Storage Temperature | -4 °F ~ 176 °F (-20 °C ~ 80 °C) |
| Operating Humidity |
0% ~ 95% relative humidity(RH),\ non-condensing |
| Certification |
| Regulations | CE, FCC,RoHs |
| Interface |
| Ethernet | 4 x 2.5 GbE RJ-45 |
| USB | 2 x USB 3.0 (Type A) |
| Expansion Slot |
1 x M.2 B Key (3042/3052), USB3.0/2.0 (Shared with storage) 1 x M.2 E Key (2230), PCIe x1 + USB2.0 for Wi-Fi/BT |
| SIM Slot | 1 x SIM interface |
| Antenna | 6 x External Antenna holes |
| Console Port | 1 x Console RJ-45 |
| Indicators |
4 x Ethernet Link/Act Green LED 4 x Ethernet 2.5G Green/1G Orange LED 1 x System Power LED 1 x Storage LED 1 x LED Bypass LED |
| Other Interface |
| Other Interface | Reset button SW reset button |
Specifications are subject to change without notice.
| |
