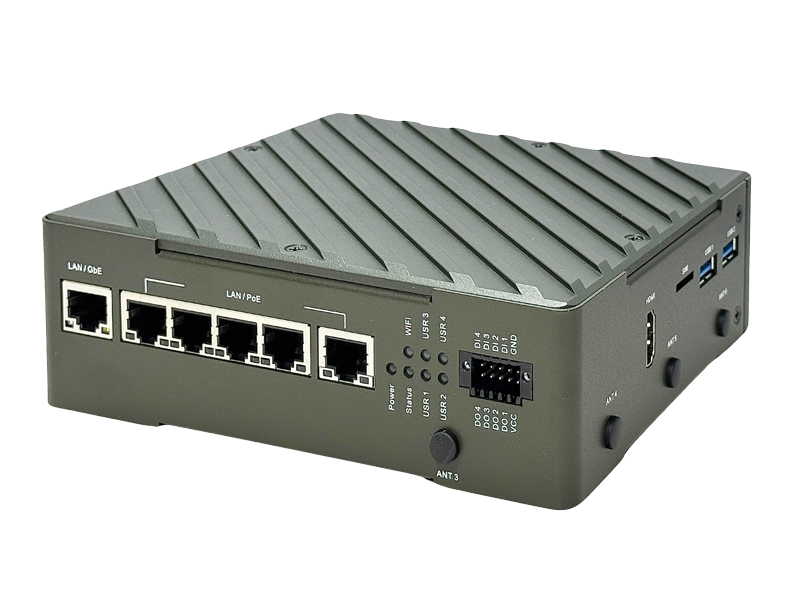

| NXP i.MX 8M Plus Quad-core Cortex-A53 Networking Micro Box NEC-C501 |
| I/O Connectors |
 |
| Ask an Expert > |
|
   3.gif) |
| Features |
|
• Powered by NXP i.MX8M Plus Quad Cortex-A53 |
| |
| System |
| CPU/MCU | NXP i.MX8M Plus, Quad-Core ARM Cortex-A53, 1.6GHz Processor |
| Memory | On Board LPDDR4, 2GB/4GB/8G (model variant) |
| Storage | On Board eMMC 16GB/32GB (model variant) External Micro SD slot, Max. 32GB |
| Real time clock | 1 x RTC, with 3V CR2032 lithium battery |
| Indicators | 7 x LED indicator |
| Security | 1 x TPM 2.0 |
| Cellular | 1x M.2 B key, USB3 signal |
| Wireless LAN | 1x M.2 E key, PCIe and USB2 signal |
| Operating System | Linux Debian 11, Yocto kirkstone 5.15 (Optional) |
| Support Protocol | - |
| Power Supply |
| Power Requirement |
DC 9-36V |
| Power Consumption | TBD |
| MTBF (Hours) | - |
| Environmental and Mechanical |
| Dimension | 6.33’' x 5.19” x 2.04” (161mm x 132mm x 52mm) |
| Weight | 860g |
| Mouting/ Installation |
Din Rail, Wall Mount (Optional) |
| Operating Temp. | -4 °F ~ 158 °F (-20 °C ~ 70 °C) |
| Storage Temperature | -40 °F ~ 176 °F (-40 °C ~ 80 °C) |
| Operating Humidity | 10% ~ 95% relative humidity, non-condensing |
| Certification |
| Regulations | CE, FCC |
| Carrier | Planning |
| Interface |
| Serial Port | 2 x RS232/RS485, DB9 |
| CAN Bus | - |
| Ethernet | 5 x GbE LAN, RJ45 (IEEE 802.3af/at PoE Optional) 1 x GbE LAN, RJ45 |
| USB | 2 x USB 3.0, Type A |
| DI/DO | 4 x Digital Input, Wet contact Terminal Block 4 x Digital Output, Isolation open collector, Terminal Block |
| AI/AO | -- |
| Display | 1 x HDMI |
| Power Connector | 1 x 2pin Terminal Block |
| Debug Port | 1 x Micro USB for console |
| Expansion slot | 1 x SIM card slot, 1 x Micro SD slot |
| Other Interface | -- |
| Ordering Information |
| 2NEC-C501-0101-01 | Networking Micro Box, ARM Cortex A53, LPDDR4 2GB eMMC 16GB 12/24VDC |
| 2NEC-C501-0112-01 | Networking Micro Box, ARM Cortex A53, LPDDR4 4GB eMMC 32GB 12/24VDC |
| 2NEC-C501-0122-01 | Networking Micro Box, ARM Cortex A53, LPDDR4 8GB eMMC 32GB 12/24VDC |
| 2NEC-C501-0101-02 | Networking Micro Box, ARM Cortex A53, LPDDR4 2GB eMMC 16GB 12/24VDC PSE |
| 2NEC-C501-0112-02 | Networking Micro Box, ARM Cortex A53, LPDDR4 4GB eMMC 32GB 12/24VDC PSE |
| 2NEC-C501-0122-02 | Networking Micro Box, ARM Cortex A53, LPDDR4 8GB eMMC 32GB 12/24VDC PSE |
| Packing List |
| 2 x Terminal Block |
| 1 x DIN Mounting Kits |
| Optional Accessories |
| 4G LTE | M.2 card. 4G LTE Module | Antenna | Antenna GPS |
| Wi-Fi | M.2 card. Wi-Fi Module |
Specifications are subject to change without notice.
| |
