| Description |
| Introducing the AES-BC27: a powerful embedded system designed for IoT and edge computing applications. Featuring the Broadcom BCM2711 quad-core Cortex-A72 SoC running at 1.5GHz, this advanced device delivers exceptional performance. With 1GB DDR4L RAM and 8GB eMMC storage (with options for 2GB/4GB RAM and 16GB eMMC), the AES-BC27 offers versatility to meet your specific needs. Its rich interface includes 2 RS-232/485 ports, 1 isolated digital input (DI), 1 isolated digital output (DO), 2 Gigabit Ethernet ports, 1 CAN-FD interface, and 2 USB 3.0 Type A ports, ensuring connectivity for various applications. It operates reliably in harsh conditions, with a wide voltage input range of 9-36V DC and a temperature range of -20°C to 70°C. The AES-BC27 is the ideal choice for industrial automation, IoT devices, and edge computing, offering both powerful performance and adaptability to diverse environments. |

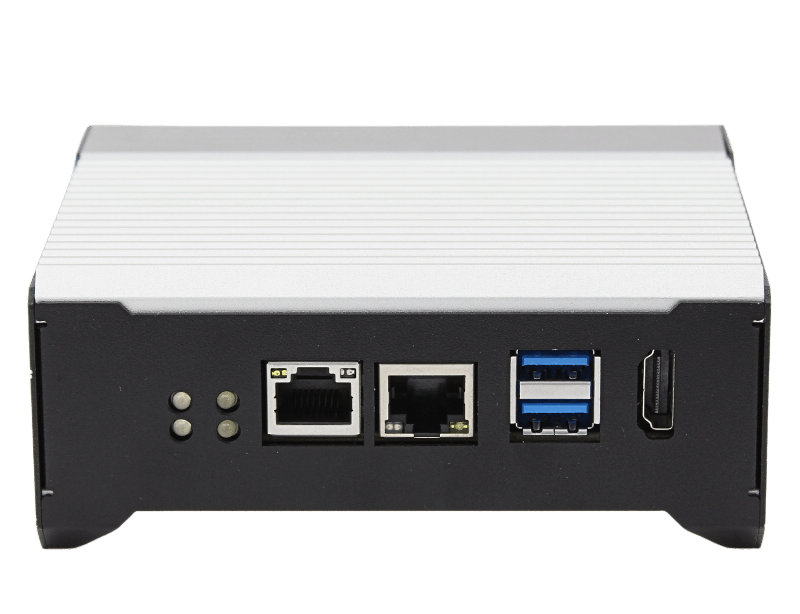

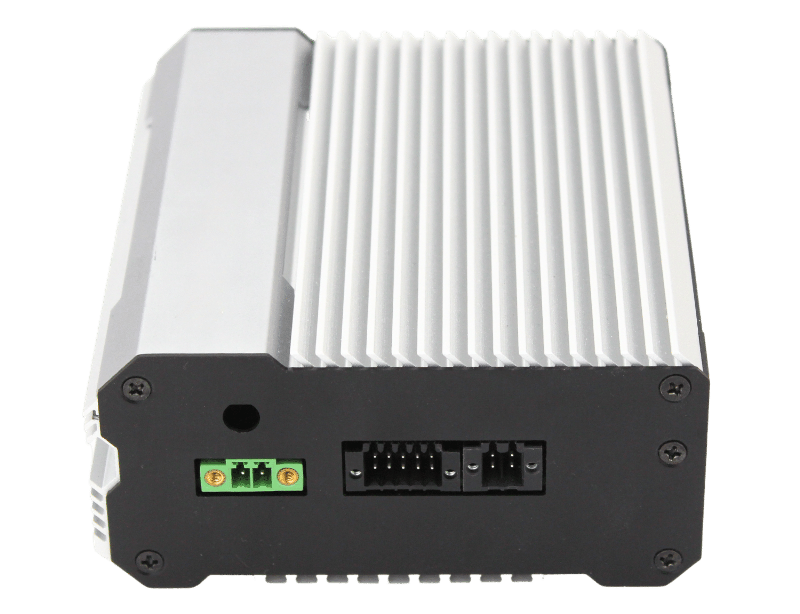

| I/O Connectors |
 |
| Ask an Expert > |
|
| Acrosser Academy |
   3.gif) |
| Features |
|
● Support Broadcom BCM2711 quad-core Cortex-A72 SoC @ 1.5GHz |
| |
| System |
| Processor | Broadcom BCM2711 Quad-core Cortex-A72 1.5GHz |
| Memory | 1 /2/4 GB (model variant) |
| Storage | 8/16 GB (model variant) |
| Real time clock | Yes |
| Cellular | 1 x B-key M.2 2280/3054 (USB signaling) |
| Security | TPM 2.0 |
| Wireless LAN | WiFi 802.11 b/g/n/ac, BT 5.0 (varies with installed CM4 SOM) |
| Operating System | Raspberry Pi OS |
| LED indicators | 3 x user definable LED indicators |
| Power Supply |
| Power Requirement |
9-36 VDC |
| Power Consumption |
TBD |
| Environmental and Mechanical |
| Dimension | 130mm x 122mm x 57mm |
| Weight | <600g |
| Mouting/ Installation |
Din Rail, Wall Mount |
| Operating Temp. | -4 °F ~ 158 °F (-20 °C ~ 70 °C) |
| Storage Temp. | -40 °F ~ 176 °F (-40 °C ~ 85 °C) |
| Operating Humidity | 10% ~ 95% relative humidity, non-condensing |
| Certification |
| Regulations | CE, FCC |
| Carrier | Planning |
| Interface |
| Serial Port | 2 x user selectable RS-232/485 |
| CAN bus | 1 x CAN-FD, terminal block |
| DI / DO | 1 x Isolated digital input (DI); 1 x isolated digital output (DO) |
| Ethernet | 2 x GbE LAN, RJ-45 |
| USB | 2 x USB 3.2 Gen 1, type A 1 X USB 2.0 OTG |
| Display | 1 x HDMI 2.0 |
| Other Interface | 1 x SIM card slot |
| Expansion slot | M.2 B-Key 2280/3054 |
| Ordering Information |
| AES-BC27E1 | AES-BC27, Broadcom BCM2711, 9~36VDC |
Specifications are subject to change without notice.
| |
| Dimension |
|
|
| |
