| Description |

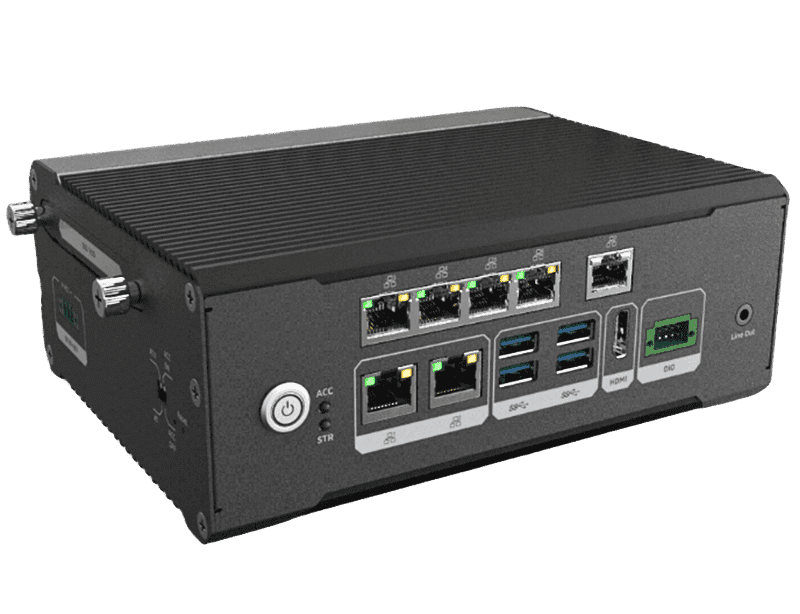

| Introducing the AIV-ORNXE, powered by NVIDIA® Jetson Orin™ NX. This versatile device combines high-performance computing with robust connectivity options for seamless data collection. With its 16GB or 8GB 128-bit LPDDR5 onboard memory, the AIV-ORNXE delivers exceptional speed and efficiency. Equipped with Gigabit LAN, USB 3.1, Serial Port, and CAN-FD interfaces, this device offers multiple I/O connections to facilitate easy integration with various systems. Whether you need to transfer data, connect peripherals, or communicate with external devices, the AIV-ORNXE has you covered. Designed to withstand challenging environments, the AIV-ORNXE operates reliably in temperatures ranging from -20˚C to 60˚C. Upgrade your data collection capabilities with the AIV-ORNXE and experience the power of NVIDIA® Jetson Orin™ NX. Enhance your workflow and unlock new possibilities with this advanced solution. |
| Ask an Expert > |
|
| I/O Connectors |
 |
| Acrosser Academy |
   3.gif) |
| Features |
| 1. Powered by NVIDIA® Jetson Orin™ NX 2.Onboard 16GB / 8GB 128-bit LPDDR5 3.Multiple I/O interface connections for data collection Gigabit LAN, USB 3.1, Serial Port, CAN-FD 4. Wide operating temperature range -20˚C to 60˚C |
| |
| System |
| CPU/GPU | NVIDIA® Jetson Orin™ NX 8/6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
| Memory | Onboard 16GB / 8GB 128-bit LPDDR5 |
| Storage | 1 x M.2 M-Key 2280, support NVMe |
| Real time clock | Yes |
| Indicators | LED indicator x 1 (Power) |
| Wireless | 1 x M.2 E-Key 2230 1 x M.2 B-Key 3052 |
| Operating System | Linux (NVIDIA Jetpack 5.1.1 and above) |
| Power Supply |
| Power Requirement | 9 to 48 VDC |
| Power Consumption | Max. 45W (with Fan, without 4x PoE) |
| Ignition Power Management |
12/24/48V Mode |
| Environmental and Mechanical |
| Dimension | 192 x 154.8 x 70.4mm |
| Weight | 0.9 kg |
|
Mouting/ |
Din Rail, Wall Mount, VESA Mount |
| Operating Temperature | -4 °F ~ 140 °F (-20 °C ~ 60 °C) |
| Storage Temperature | 40 °F ~ 176 °F (-40 °C ~ 85 °C) |
| Operating Humidity | 10% ~ 95% relative humidity, non-condensing |
| Certification |
| Regulations | CE, FCC |
| Carrier | Planning |
| Interface |
| Serial Port | CE, FCC |
| CAN Bus | Planning |
| Ethernet | 1 x GbE LAN support PD 60W, RJ45 1 x GbE LAN support PSE 15W, RJ45 DC Mode: 4 x GbE LAN support PSE Max 60W, RJ45 |
| USB | 4 x USB 3.1, Type-A |
| DI/DO | 8x Alarm I/O |
| Display | 1 x HDMI 2.0-Out |
| Power Connector | Terminal Block |
| Debug Port | 1 x Micro USB for console |
| Expansion Slot | 1 x SIM card slot 1 x Micro SD slot |
| Other Interface | -- |
| Packing List |
| ● AIV-ORNXE x1 |
| Ordering Information |
| AIV-ORNXE1 | NVIDIA® Jetson Orin™ NX, 8GB, 9 to 48 VDC |
| AIV-ORNXE2 | NVIDIA® Jetson Orin™ NX, 16GB, 9 to 48VDC |
| AIV-ORNXE3 | NVIDIA® Jetson Orin™ NX, 8GB, 4 x PoE, 9 to 48VDC |
| AIV-ORNXE4 | NVIDIA® Jetson Orin™ NX, 16GB, 4 x PoE, 9 to 48VDC |
| Optional Accessories |
| 4170A000012 | CPU Core P-Core | ||||
| 4B01XUD12060AS3 | Cable,DC Jack to 2P,L=50 | ||||
| 4K02X00000030AR | Power Cord EU | ||||
| 4K02X00000020AR | Power Cord US |
Specifications are subject to change without notice.
| |
