| Description |

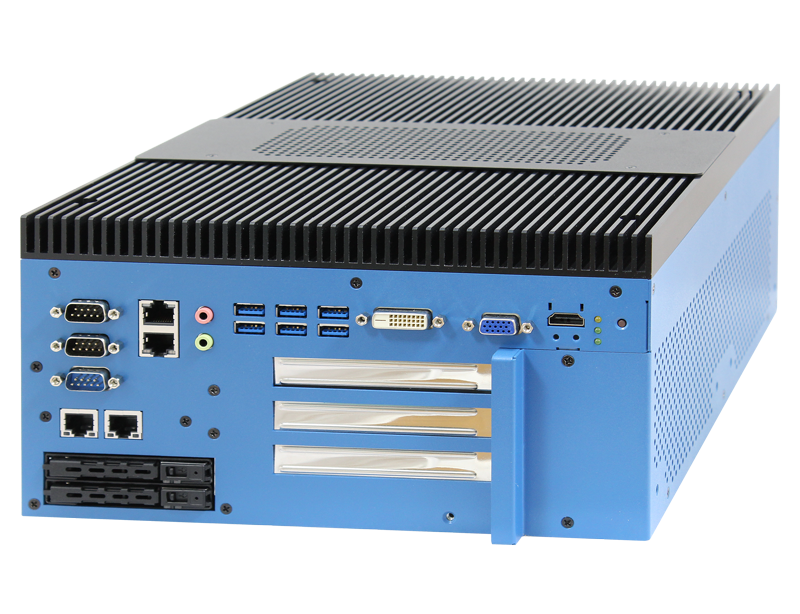

| The AAD-W480B1-P is a 10th generation Intel® Core™ Xeon/i9/i7 processor based Autonomous Driving Controller and Autonomous Driving Servers computer that is ideal for surveillance applications. It features a workstation-grade platform with a maximum of 80W TDP CPU and supports up to 64GB of DDR4 3200 SODIMM (Non-ECC) memory. The computer has two PCIe x16 slots with PCIe x8 signal, one PCIe x4 expansion slot, and can support one NVIDIA RTX 30 series graphics card with a maximum power of 320W. The device also features a CAN bus for communication, two front easy access 2.5” SATA III storage bays, and 9-50Vdc power input with in-vehicle power ignition control, with a maximum power input of 1,000W. Additionally, the AAD-W480B1-P has two isolated independent PSE ports for dual PoE. |
| I/O Connectors |
 |
| Acrosser Academy |
| |
 |
| Features |
|
● Workstation-grade Platform : 10th Gen Intel® Xeon®/Core™ i9/i7 Processor
|
 |
| System |
| CPU | Intel® 10th Gen. Xeon®/Core™ i9/i7 Processor, support max 80W TDP CPU, socket type, LGA1200 |
| Chipset | Intel® W480E |
| Memory | 2 x 260 PIN DDR4-3200 SODIMM supports up to 64GB (Up to 32GB per socket) |
| Video |
| Graphic Controller |
Intel® UHD Graphics 630 |
| Interface | 1 VGA, 1 DVI-D, 1 HDMI1.4b |
| Storage |
| SATA | 2 SATA III (6Gbps) support S/W RAID 0, 1 |
| M.2 | 1 M.2 Key M Socket (2280) NVMe SSD (Internal) |
| Storage Device | 2 Front-access 2.5" SSD/HDD Tray |
| I/O |
| LAN | LAN 1 : RJ45 Type Intel® I210IT GigE LAN LAN 2 : RJ45 Type Intel® I210IT GigE LAN |
| Serial | 4 DB9 Type RS-232/RS422/485 |
| USB | 6 Type A USB 3.2 Gen2 |
| DIO | 4DI,4DO, DB15 Type connector |
| Audio | 1 Mic-in, 1 Line-out |
| CAN BUS | 1 DB9 CANBus |
| PoE | 2 RJ45 Type PoE ports, Complies with IEEE 802.3af,up to 15.4W at 48V per PoE port-Complies with EN61000-4-2 (ESD) Air-15kV, Contact-8kV |
| Button | 1 Power Press Button |
| Antenna Hole | 7 Antenna Holes |
| Expansion |
| Mini PCIe | 2 x Full Size Mini PCIe Slots |
| M.2 | 1 x M.2 B Key(3042) |
| SIM Slot | 1 SIM Slot (Internal) |
| PCIe Slot | 2 PCIe[x16] Slot with PCIe x8 signal , 1 PCIe[x4] Slot |
| Others |
| TPM | Optional By Request |
| Watchdog Timer | 255 Levels |
| Smart Management |
Wake on LAN, PXE supported |
| HW Monitor | Monitoring temperature, voltages. Auto throttling control when CPU overheats. |
| Software |
| OS Support | Windows 10, Linux |
| Power Requirement |
| Power Input | 9V to 55V, DC-in |
| Power Interface | 3-pin Terminal Block : V+, IGN, V- With Power Ignition Control |
| Mechanical & Environment |
| Dimension | TBD |
| Weight | TBD |
| Mounting | Wallmount |
| Operating Temperature |
35W TDP CPU : -30°C to 70°C 65W TDP CPU : -30°C to 50°C 80W TDP CPU : -30°C to 40°C with system fan When Install Graphics Card: -20°C to 45°C with system fan |
| Storage Temp | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 90% Humidity, non-condensing |
| Shock | IEC 60068-2-27 SSD : 50G @ wallmount, Half-sine, 11ms |
| Vibration | IEC 60068-2-64 SSD : 5Grms, 5Hz to 500Hz, 3 Axis |
| EMC | CE / FCC class A/ E-Mark |
| Packing List |
| ● 1 x AAD-W480B1/2-P |
| ● 2 x Wall mount bracket |
| ● 1 x Terminal block |
| ● 1 x Screws Package |
| ● 1 x GPU fixing kit |
| CPU List | ||||
| Series | CPU | GHz | TDP (W) | ECC RAM |
| Intel® Xeon® | W-1290TE | 4.5 | 35 | Yes |
| W-1270E | 4.8 | 80 | ||
| W-1270TE | 4.4 | 35 | ||
| W-1250E | 4.7 | 80 | ||
| W-1250TE | 3.8 | 35 | ||
| Intel® Core™ | 9-10900E | 4.7 | 65 | NA |
| i9-10900TE | 4.5 | 35 | ||
| i7-10700E | 4.5 | 65 | ||
| i7-10700TE | 4.4 | 35 | ||
| Order Information |
| AAD-W480B1-P20 | AAD-W480B1-P, Socket Type CPU Platform, 3 PCIe, CANBus, PoE |
| AAD-W480B2-P20 | AAD-W480B2-P, Socket Type CPU Platform, 3 PCIe, CANBus, With System Fan |
| Optional Accessory |
| DDR4 32G | Certified DDR4 32GB 3200MHz RAM(Non-ECC) |
| DDR4 16G | Certified DDR4 16GB 3200MHz RAM(Non-ECC) |
| DDR4 8G | Certified DDR4 8GB 3200MHz RAM(Non-ECC) |
| DDR4 4G | Certified DDR4 4GB 3200MHz RAM(Non-ECC) |
| 5G Module | 5G & GNSS Module with Dual Antenna |
| 4G Module | 4G & GNSS Module with Dual Antenna |
| WiFi & Bluetooth Module | WiFi & Bluetooth Module with Dual Antenna |
*Please adopt wide operation temperature RAM, SSD, HDD to get better and stable system performance.
*If customer want to install CPU TDP up to 80W or high level GPU card, we will suggest to choose system sku with system fan version to get better therma l solution and system performance.
Specifications are subject to change without notice.
|
