| CPU |

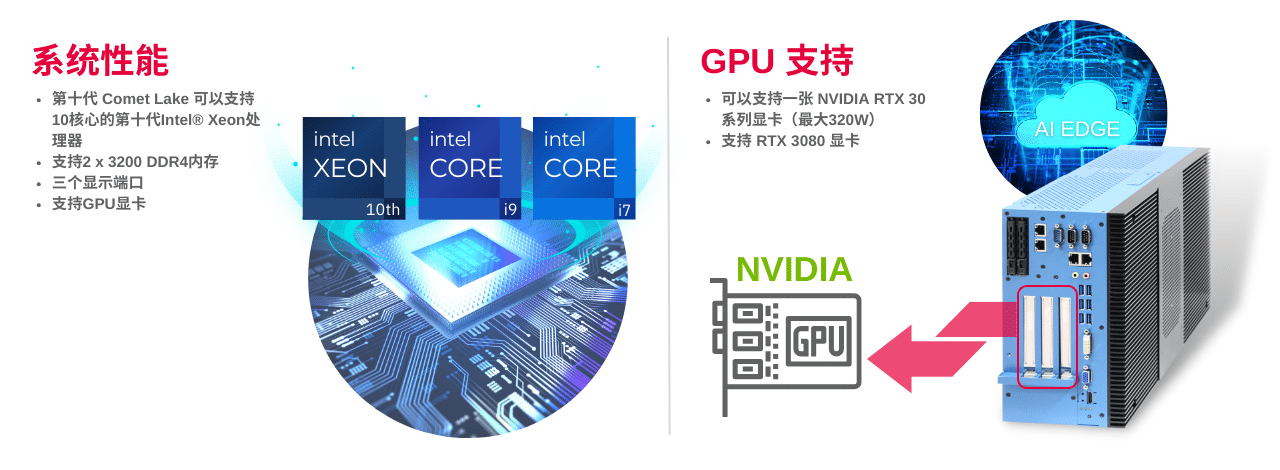

Intel® 10th Gen. Xeon®/Core™ i9/i7 Processor, support max 80W TDP CPU, socket type, LGA1200 |
| Chipset |
Intel® W480E |
| Memory |
2 x 260 PIN DDR4-3200 SODIMM supports up to 64GB
(Up to 32GB per socket) |
Graphic
Controller |
Intel® UHD Graphics 630 |

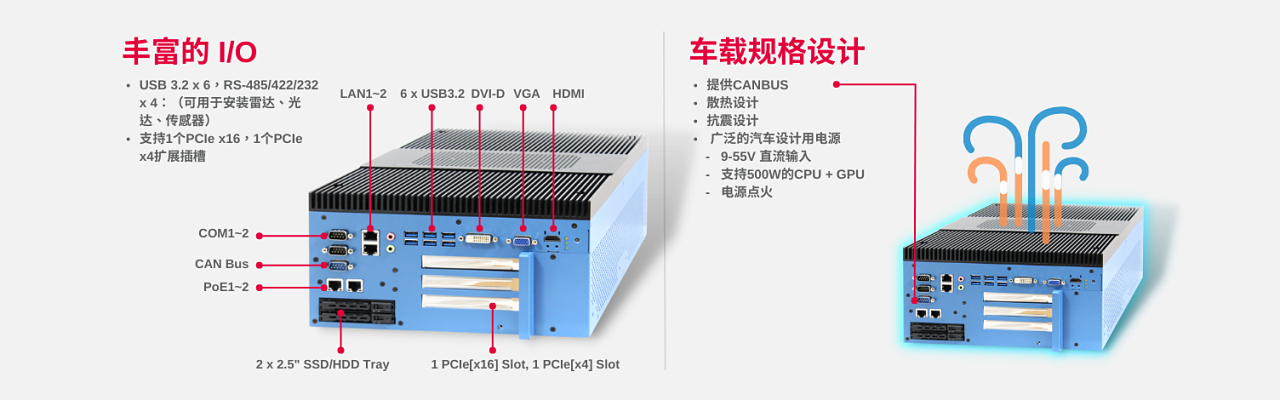

| Interface |
1 VGA, 1 DVI-D, 1 HDMI1.4b |
| SATA |
2 SATA III (6Gbps) support S/W RAID 0, 1 |
| M.2 |
1 M.2 Key M Socket (2280) NVMe SSD (Internal) |
| Storage Device |
2 Front-access 2.5" SSD/HDD Tray |
| LAN |
LAN 1 : RJ45 Type Intel® I210IT GigE LAN
LAN 2 : RJ45 Type Intel® I210IT GigE LAN |
| Serial |
4 DB9 Type RS-232/RS422/485 |
| USB |
6 Type A USB 3.2 Gen2 |
| DIO |
4DI,4DO, DB15 Type connector |
| Audio |
1 Mic-in, 1 Line-out |
| CAN BUS |
1 DB9 CANBus |
| LED |
Power, HDD, Status |
| Button |
1 Power Press Button |
| Antenna Hole |
7 Antenna Holes |
| Mini PCIe |
2 x Full Size Mini PCIe Slots |
| M.2 |
1 x M.2 B Key(3042) |
| SIM Slot |
1 SIM Slot (Internal) |
| PCIe Slot |
1 PCIe[x16] Slot, 1 PCIe[x4] Slot |
| TPM |
Optional By Request |
| Watchdog Timer |
255 Levels |
Smart
Management |
Wake on LAN, PXE supported |
| HW Monitor |
Monitoring temperature, voltages. Auto throttling control
when CPU overheats. |
| OS Support |
Windows 10, Linux |
| Power Input |
9V to 55V, DC-in |
| Power Interface |
3-pin Terminal Block : V+, IGN, V- With Power Ignition
Control |
| Dimension |
TBD |
| Weight |
TBD |
| Mounting |
Wallmount |
Operating
Temperature |
35W TDP CPU : -30°C to 60°C
65W TDP CPU : -30°C to 50°C
80W TDP CPU : -30°C to 40°C with system fan
When Install Graphics Card: -20°C to 45°C with system fan |
| Storage Temp |
-40°C to 85°C (-40°F to 185°F) |
| Humidity |
5% to 90% Humidity, non-condensing |
| Shock |
IEC 60068-2-27
SSD : 50G @ wallmount, Half-sine, 11ms |
| Vibration |
IEC 60068-2-64
SSD : 5Grms, 5Hz to 500Hz, 3 Axis |
| EMC |
CE / FCC class A/ E-Mark |

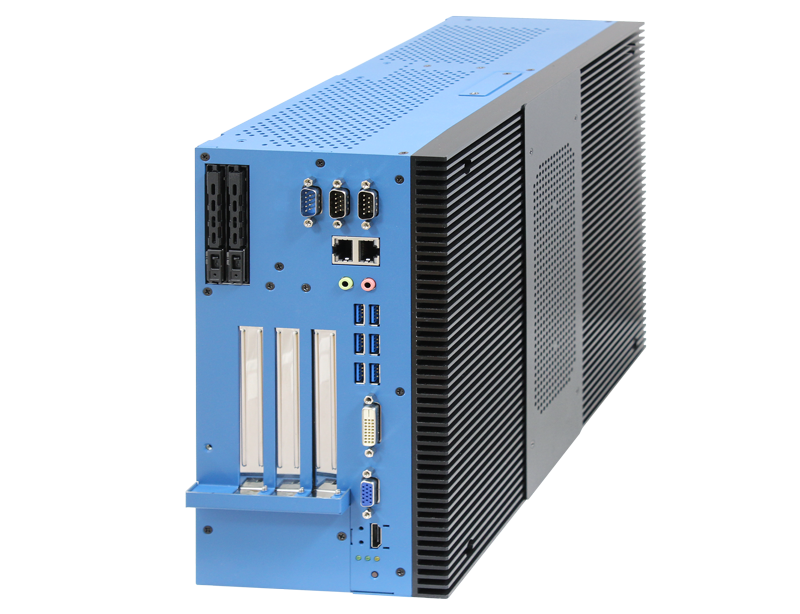

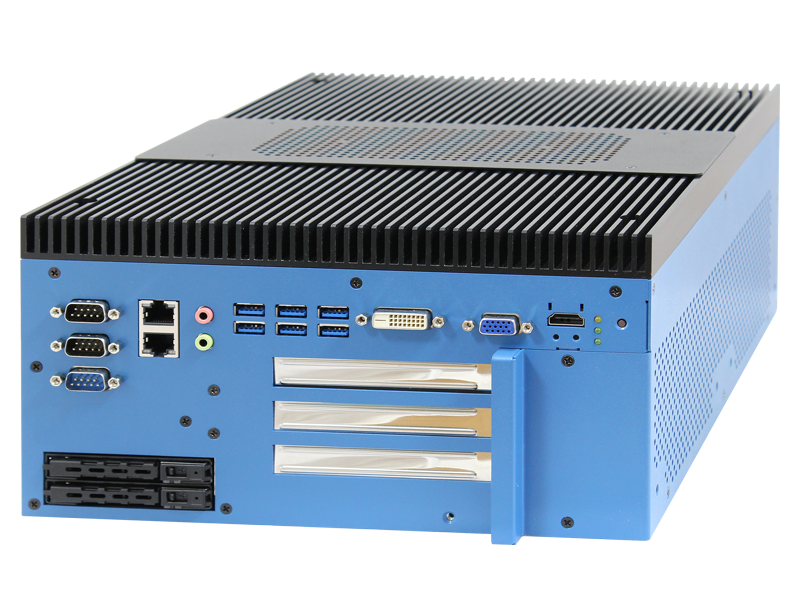

| ● 1 x AIS-7000 |
| ● 2 x Wall mount bracket |
| ● 1 x Terminal block |
| ● 1 x Screws Package |
| ● 1 x GPU fixing kit |
| CPU List |
| Series |
CPU |
GHz |
TDP (W) |
ECC RAM |
| Intel® Xeon® |
W-1290TE |
4.5 |
35 |
Yes |
| W-1270E |
4.8 |
80 |
| W-1270TE |
4.4 |
35 |
| W-1250E |
4.7 |
80 |
| W-1250TE |
3.8 |
35 |
| Intel® Core™ |
9-10900E |
4.7 |
65 |
NA |
| i9-10900TE |
4.5 |
35 |
| i7-10700E |
4.5 |
65 |
| i7-10700TE |
4.4 |
35 |
| AIS-7000-01 |
Socket Type CPU Platform, 2 PCIe,CANBus |
| AIS-7000-02 |
Socket Type CPU Platform, 2 PCIe,CANBus, With System Fan |
| DDR4 32G |
Certified DDR4 32GB 3200MHz RAM(Non-ECC) |
| DDR4 16G |
Certified DDR4 16GB 3200MHz RAM(Non-ECC) |
| DDR4 8G |
Certified DDR4 8GB 3200MHz RAM(Non-ECC) |
| DDR4 4G |
Certified DDR4 4GB 3200MHz RAM(Non-ECC) |
| 5G Module |
5G & GNSS Module with Dual Antenna |
| 4G Module |
4G & GNSS Module with Dual Antenna |
| WiFi & Bluetooth Module |
WiFi & Bluetooth Module with Dual Antenna |
*Please adopt wide operation temperature RAM, SSD, HDD to get better and stable system performance.
*If customer want to install CPU TDP up to 80W or high level GPU card, we will suggest to choose system sku with system fan version to get better therma l solution and system performance.
Specifications are subject to change without notice.
