| CPU |
1. Intel® Celeron® Bay Trail J1900, Quad-core, clock speed 2.0GHz
2. Intel® Celeron® Bay Trail J1800, Dual-core, clock speed 2.41GHz |
| Memory |
1 x 204-pin SO-DIMM socket support 1600MHz DDR3L up to 8GB |
| BIOS |
AMI UEFI |
| WatchDog Timer |
Software programmable 1~255 sec. |
| Graphic Controller |
Integrated graphics support for processors with Intel Graphics Technology
|
| Video Interface |
1 x VGA (1 x internal header) |
| Chipset |
6 x Intel GbE chip
|
| Connector |
6 x RJ45 with LED |
| LAN bypass |
6LAN SKU : 2-pair (LAN3 & LAN4；LAN5 & LAN6)
4LAN SKU : 1-pair (LAN3 & LAN4) |
|
SATA
|
1 x SATAII port
|
|
CF
|
1 x Compact Flash Type II socket
|
| HDD Bay |
1 x 2.5” HDD Bay |
| Expansion |
1 x mini PCIe slot |
| Console Port |
1 x Console (1 x RJ45) |
| USB |
1 x USB 3.0, 2 x USB 2.0
|
| Antenna Hole |
2 x SMA for Wi-Fi (IEEE 802.11a/b/g/n/ac) |
|
Power Input
|
1 x DC 12V input (1 x 2.5 DC jack)
|
|
OS Support
|
Windows 7 / Windows 8 / Linux
|
|
Dimension
|
235 x 152 x 44.5 mm
|
|
Operating Temp.
|
0~40°C
|
|
Storage Temp.
|
-20~80°C
|
|
Safety
|
CE, FCC class A |
| ● 1 x AND-J190N2/J180N2-C612 system |
| ● 1 x Driver CD |
| ● 1 x Console Cable (DB9) |
| ● 1 x SATA Cable |
| ● 1 x SATA Power Cable |
| ● 1 x Power Adaptor |
| ● 1 x Power Cord (Option for USA/UK/EU/JPN/AU/RSA/IND) |

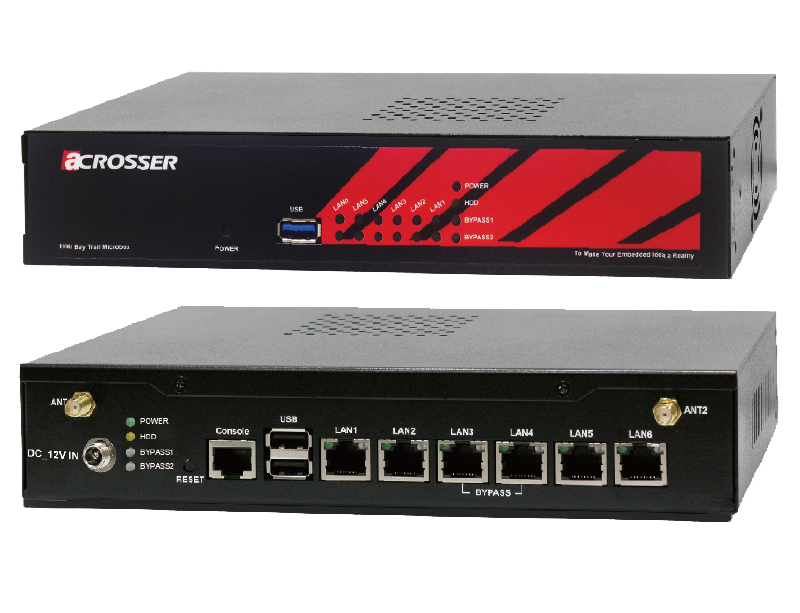

| AND-J190N2-C612 |
Intel® Celeron® Bay Trail J1900/J1800 Networking Microbox, DDR3L, GbE, USB
2.0/USB 3.0, SATA II, CF, Mini PCIe
|
| AND-J180N2-C612 |
Intel® Celeron® Bay Trail J1900/J1800 Networking Microbox, DDR3L, GbE, USB
2.0/USB 3.0, SATA II, CF, Mini PCIe
|
Specifications are subject to change without notice. |
