| Description |
| The IES-12A1 is an Intel Elkhart Lake IoT Edge Embedded System that features an onboard LPDDR4 memory with a capacity of 4GB and eMMC storage with a capacity of up to 64GB. It also has dual HDMI 2.0 displays that support 4K resolution at 60Hz, dual RJ45 GbE LAN, 2 USB 3.2 Gen1 ports, 2 USB 2.0 ports, and 2 RS232/422/485 ports for serial communication. The device is also equipped with TPM 2.0 for security and has a fan-less design for quiet operation. |

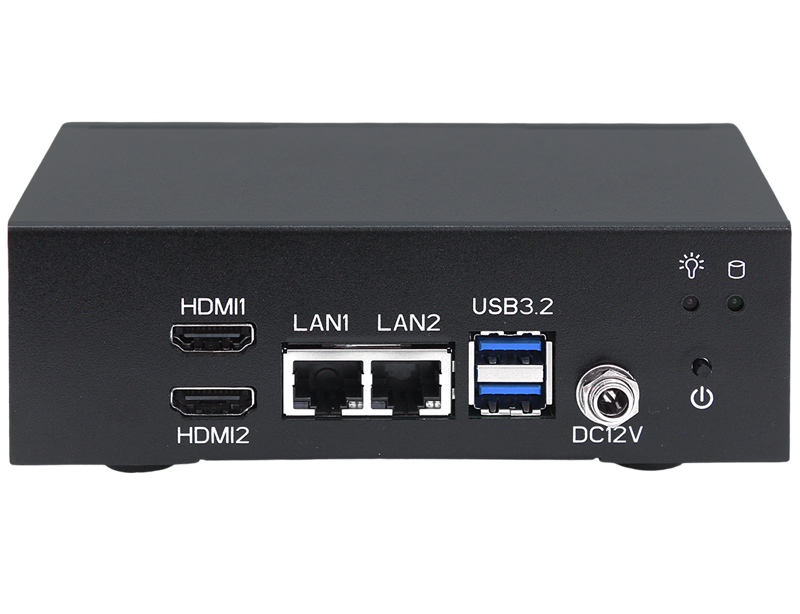

| I/O Connectors |
 |
 |
| Features |
|
● Onboard LPDDR4 Memory 4GB |
|
| System |
| CPU | A1:Intel® Celeron ® N6210, Dual -Core, 1.5M Cache,1.2GHz (2.6GHz), 6.5W A2: Intel® Celeron® J6412, Quad-Core, 1.5M Cache, 2GHz (2.6GHz), 10W |
| Chipset | Intel Elkhart Lake SoC |
| Memory | N6210 On board 4GB J6412 On board 4GB |
| BIOS | AMI UEFI BIOS |
| WatchDog Timer | Software programmable 0~255 sec |
| Video |
| Graphic Controller |
Intel® Gen10 UHD Graphics |
| Video Memory | Shared Memory |
| Video Interface | 2 x HDMI 2.0 |
| Storage |
| Storage | A1:On board 32GB A2:On board 64GB |
| I/O |
| Ethernet | 2 x GbE LAN(RJ45) |
| Expansion Slot | 1x M.2 2230 E Key 1x Mini-PCI-e |
| USB | 2 x USB 3.2Gen1 Type A,2 x USB 2.0 Type A, |
| GPIO | 4 bit GPIO (Reserved) |
| COM | 2 x RS232/422/485 |
| Optional Parts | Power adaptor + Power Code Din Rail Mount Kits Intel Wi-Fi 6E Module Sata & Power cable |
| Power Requirement |
| Power Input | 12V DC in |
| Software |
| OS Support | Windows 10 Full,, Windows IOT Kernel 4.8,Ubuntu 22.04 |
| Mechanical & Environment |
| Dimension | 140 x 90 x 45mm |
| Operating Temp. | 0~60oC (32~140oF) |
| Safety | RoHS |
| Optional items |
| ● Power Adapter.12V.+ power cord x 1 |
| ● DIN-Rail Mount Kit x 1 |
| ● Intel Wi-Fi 6E AX210NGW + 2 x Antenna + Cables x 1 |
| ● Sata & power cable x 1 |
| Ordering Information |
| IES-12A1-01 | 01:N6210.2HDMI+ 4GB LPDDR4 .2LAN.2COM.4USB.32G eMMC. |
| IES-12A1-02 | 02:J6412.2HDMI 4GB LPDDR4 .2LAN.2COM.4USB.64GB eMMC. |
Specifications are subject to change without notice.
|
