| Description |
|

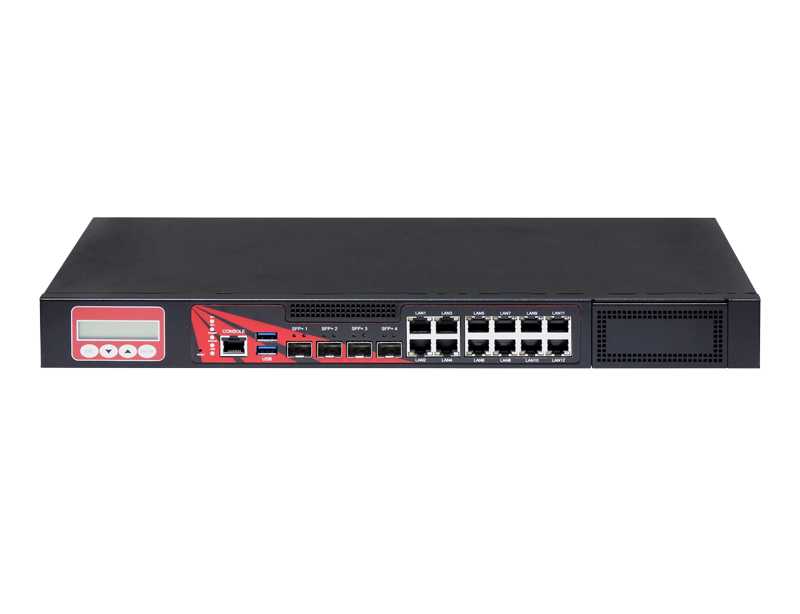

ANR-ICEDA1 is a 1U rackmount network appliance that provides high-speed networking and data storage capabilities. It features Intel Xeon processors, including the Xeon D-1713NT and Intel® Xeon® Ice-Lake D LCC processors. Additionally, it has 12 1Gb RJ45 ports, 2 LAN bypass pairs, 1 Network Interface Module (NIM) slot, and the ability to support 2 2.5" SATA-III storage devices. The device also has a Liquid Crystal Display (LCD) with a keypad for easy monitoring and control. It is ideal for businesses and organizations that need a powerful and compact network appliance to meet their demands, such as network server hardware, network security hardware, SDN/NFV, vCPE hardware, network appliances, and SD-WAN hardware solutions. |
| 了解更多 > |
|
| 英特尔 Ice Lake-D处理器 |
| • 提供高密度BGA封裝的伺服器級效能和I/O，適用於堅固的焊接應用 • Intel Xeon D-1700：四至十個核心，最高可達348 GB RAM，功率範圍為40W至67W • 搭載Intel® Slim Bootloader可實現更快的啟動速度 |
|
|
| 了解更多 > |
|
| I/O Connectors |
| 丰富的I/O接口 |

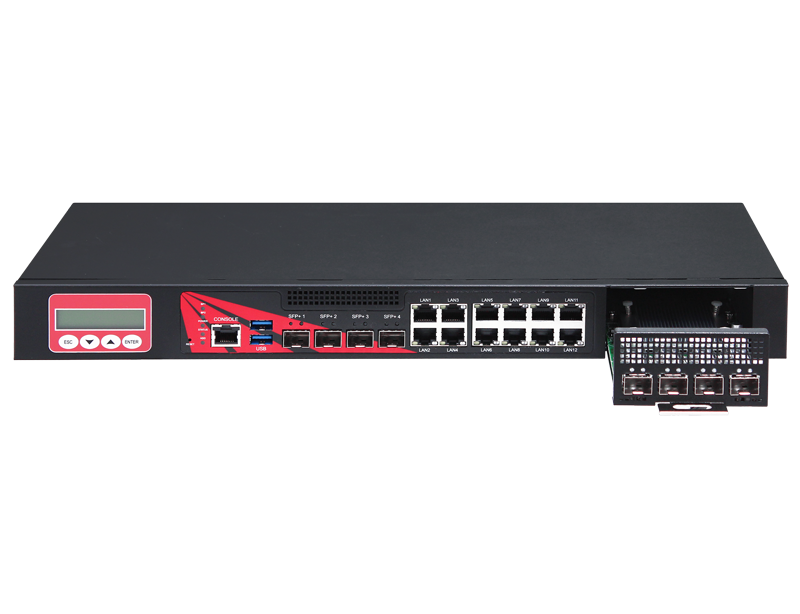

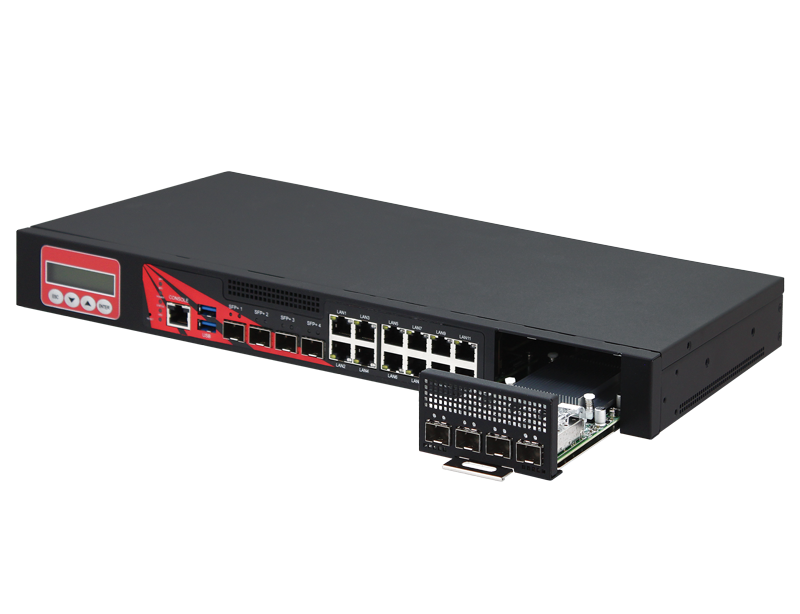

| • 12 x 1GbE RJ45 (I350 AM4 x 3 ) + 4 x 10GbE SFP+ • NIM 模組 : ACC-NM1ZA-01C4 (1G Copper x 4) / ACC-NM1ZA-10F4(10G SFP+ x 4) |
 |
| 询问专家 > |
|
| Acrosser Academy |
| Th |
 |
| Features |
|
1. Intel® Xeon® ICE-Lake-D LCC Processor |
|
| System |
| CPU | Intel® XEON D-1713NT Processor, 4C/8T, Ice Lake-D Base Frequency : 2.20 GHz, 45W |
| Chipset | SoC |
| Memory | 2 x DDR4 288 Pin SO-DIMM ECC DIMM slots |
| BIOS | AMI |
| WatchDog Timer | Software programmable 0~255 sec. |
| Ethernet |
| Ethernet port | 12 x 1GbE RJ45 (I350 AM4 x 3 ) + 4 x 10GbE SFP+ |
| LAN bypass | 2-Pair Bypass |
| Storage |
| SATA | 2 SATA III (6Gbps) |
| Storage Device | 2 2.5" SSD/HDD Tray |
| I/O |
| Console port | 1 x RJ-45 Console |
| USB port | 2 x Type A USB 3.2 Gen1 |
| Expansion | 1 x M.2 (B key 3052) for 4G/5G (USB3.0 + PCIe) with SIM 1 x M.2 (E key 2230) (PCIe) |
| LCD Module | 1 x LCM with Keypad |
| Exp. NIM | 1G/10G/40G, Fiber/Copper/LAN Bypas |
| LED | Power LED, Status LED, Active LED |
| Others |
| TPM | Optional By Request |
| Watchdog Timer | 1~255 |
| Battery | Internal RTC |
| Fan | 1 x System Fan |
| Software Button | 1 |
| Power Requirement |
| Power Input | 220W Power |
| Software |
| OS Support | Linux or Ubuntu 20.04.2 or above |
| Mechanical & Environment |
| Dimension | 430(W) x 44(H) x 200(D)mm |
| Operating Temp. | 0~ 40°C (32~104°F) |
| Storage Temp. | 32°F ~ 104°F (0°C ~ 40°C ) |
| Humidity | 10%~80% relative humidity, non-condensing |
| Shock | 10 G peak acceleration (11 m sec. duration), operation |
| Vibration | 0.5 g rms/ 5 ~ 500Hz / operation (2.5” Hard Disk Drive) |
| EMC | CE / FCC class A |
| Packing List |
| ● ANR-ICEDA1 system |
| ● Console Cable |
| ● Ear Brackets |
| ● 2 x SATA Cable |
| ● 2 x SATA Power Cable |
| ● 2 x HDD brackets |
| Ordering Information |
| ANR-ICEDA1 | 1U Rackmount Server With Intel Xeon D-1713NT CPU |
| Optional Accessory |
| DDR4 32G | Certified DDR4 32GB 3200MHz ECC SO-DIMM |
| DDR4 16G | Certified DDR4 16GB 3200MHz ECC SO-DIMM |
| DDR4 8G | Certified DDR4 8GB 3200MHz ECC SO-DIMM |
| DDR4 4G | Certified DDR4 4GB 3200MHz ECC SO-DIMM |
| ACC-NM1ZA-01C4 | Intel® 82580EB PCI-Express 1G Copper Ethernet 4 Ports Module(2Pair bypass) for ANR-ICEDA1 |
| ACC-NM1ZA-10F4 | Intel® Fortville XL710 PCI-Express 10G SFP+ 4 Ports Module for ANR-ICEDA1 |
Specifications are subject to change without notice.
|
