| Description |
|
欣扬电脑IES-5410系列，这是一款用于车载和边缘计算应用的无风扇计算机。它采用第11代Intel Core i7/i5/i3处理器和Intel Iris Xe Graphics，可实现高性能计算和实时图形渲染。AIV-TGH7B系列可以在-20℃至55℃的温度范围内运行，非常适合用于乘客信息计算机、数字标牌、电源充电设备、AGV和AMR等应用。它具有各种I/O接口，包括GigE LAN、2.5GigE LAN、USB 3.2和SATA III，以及mini PCIe和M.2插槽，可进行灵活扩展。 |
 |
| 了解更多AIV-TGH7B > |
 |
 |
| 询问专家 > |

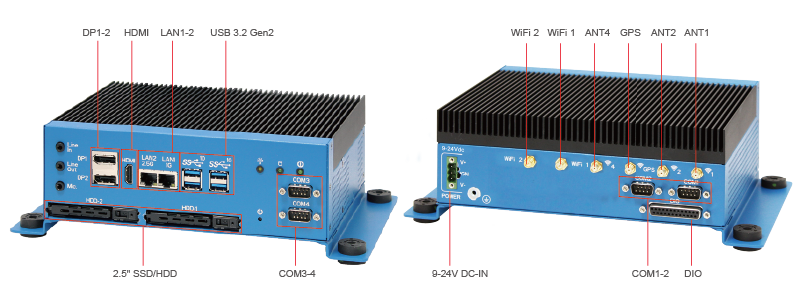

| I/O Connectors |
 |
| Acrosser Academy |
|
什么是边缘计算? 边缘计算通常应用于需要高实时性能和低延迟的场景，例如智能城市、物联网、工业自动化、自动驾驶等领域。它能够快速地进行本地数据分析和决策，从而提高系统效率、可靠性和安全性。 |
| 为什么选择欣扬电脑边缘计算？ √ 坚固可靠 欣扬电脑的边缘计算设备坚固可靠，适用于恶劣环境。 √ 弹性可定制 它们可定制，可根据您特定的业务需求进行个性化定制。 √ 灵活可扩展 它们可扩展，随着业务的发展，您可以轻松地添加更多设备。 √ 安全防护 它们安全可靠，具备内置的安全功能，保护您的数据。 |
 |
| Features |
|
1. Intel® 11th Generation Core™ i7/i5/i3 Processor
|
|
| System |
| CPU | Intel® 11th Generation Core™ i7/i5/i3 Processor(Tiger Lake- H) i7-11850HE (8C/16T, 2.60GHz, up to 4.70GHz) i5-11500HE (6C/12T, 2.60GHz, up to 4.50GHz) i3-11100HE (4C/8T, 2.40GHz, up to 4.40GHz) |
| Chipset | Intel® HM570E |
| Memory | 1 DDR4-3200 Memory supports up to 32GB (ECC) |
| Video |
| Graphic Controller |
Intel® Iris® X Graphics |
| Video Interface | 1 x HDMI , 2 x DP |
| Storage |
| SATA | 2 x SATA III (6Gbps) support S/W RAID 0, 1 |
| Storage Device | 2 Front-access 2.5" SSD/HDD Tray Max total current is 2A for dul SATA devices |
| I/O |
| LAN | LAN 1 : RJ45 Type Intel® I225 2.5GigE LAN LAN 2 : RJ45 Type Intel® I219 GigE LAN |
| Serial | 2 x DB9 Type RS-232/RS422/485 2 x DB9 Type RS-232 |
| USB | 4 x Type A USB 3.2 Gen2 |
| DIO | 16 x DIO, DB25 Type connector |
| Audio | 1 x Mic-in, 1 Line-in, 1 Line-out |
| LED | Power, HDD, Status |
| Button | 1 x Power Press Button |
| Antenna Hole | 6 x Antenna Holes |
| Expansion |
| Mini PCIe | 1 x Half Size Mini PCIe slot |
| M.2 | 1 x M.2 B Key(3052) (Default PCIe[x1]+USB3.0+USB2.0) M.2 1 x M.2 M Key(2280) (PCIe 4.0[x4]) |
| SIM Slot | 1 Nano SIM Slot (Internal) |
| Others |
| TPM | Optional By Request |
| Watchdog Timer | 255 Levels |
| Smart Management |
Wake on LAN, PXE supported |
| HW Monitor | Monitoring temperature, voltages. Auto throttling control when CPU overheats. |
| Software |
| OS Support | Windows 10, Linux |
| Power Requirement |
| Power Input | 9V to 24V, DC-in |
| Power Interface | 3-pin Terminal Block |
| Mechanical & Environment |
| Dimension | 220mm(W) x 175mm(D) x 73mm(H) (8.66" x 6.89" x 2.87") |
| Weight | TBD |
| Mounting | Wallmount |
| Operating Temperature |
-20°C to 55°C (-4°F to 131°F) |
| Storage Temp | -40°C to 80°C (-40°F to 176°F) |
| Humidity | 5% to 90% Humidity, non-condensing |
| Shock | IEC 60068-2-27 SSD : 50G @ wallmount, Half-sine, 11ms |
| Vibration | IEC 60068-2-64 SSD : 5Grms, 5Hz to 500Hz, 3 Axis |
| EMC | CE / FCC class A |
| Packing List |
| ● 1 x IES-5410 |
| ● 3-Pin Terminal block |
| ● Wall mount bracket Set |
| ● Screws Package |
| Order Information |
| IES-5417-01 | Intel i7-11850HE, CAN Bus |
| IES-5415-01 | Intel i5-11500HE, CAN Bus |
| IES-5413-01 | Intel i3-11100HE, CAN Bus |
| Optional Accessories |
| DDR4 | 4GB/8GB/16GB/32GB |
| WiFI & BT module | WiFi & Bluetooth Module with Dual Antenna |
| 4G Module | 4G & GNSS Module with 3 Antennas, 1 GPS antenna |
| 5G Module | 5G & GNSS Module with Dual Antenna |
Specifications are subject to change without notice.
|

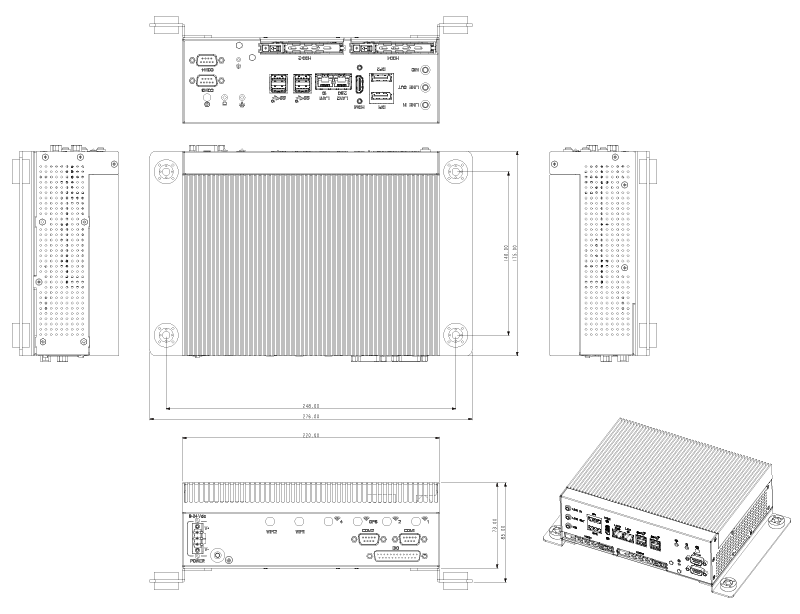

| Dimens |
|
|
|
