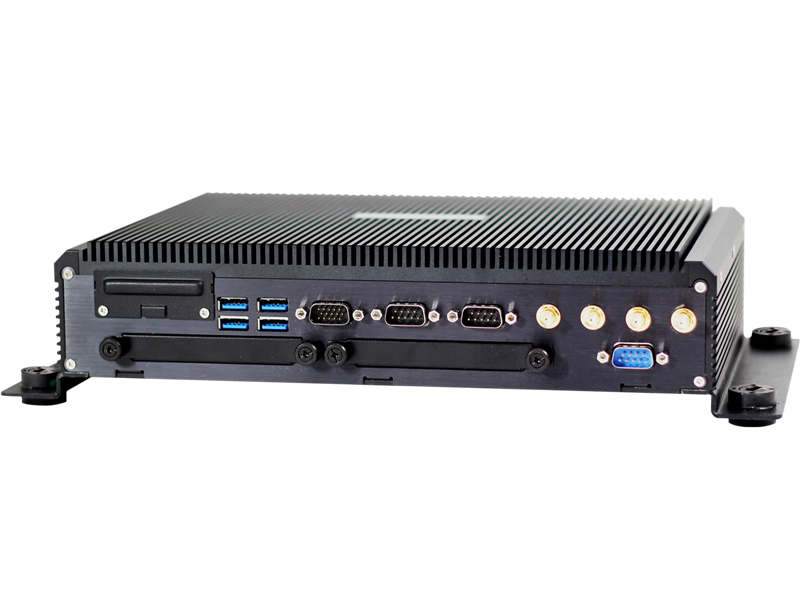

Acrosser IVS-6000 is equipped with the latest Intel Skylake-S 6th Core i CPU, features 4 x POE GbE LAN port with RJ45 connectors (802.3at, total 60W max) , 2 x swappable 2.5” SSD bay, 8 x USB 3.0 ports, and supports 3 x Mini PCI-e (For 4G & GPS module with 2 x SIM card Socket, Wi-Fi/Bluetooth, G Sensor, Dead Reckoning , CAN BUS or OBD II J1939,and etc. )
1. Intel® 6th Generation Core™ Desktop Processor
2. Support 4 X POE GbE LAN port with RJ45 connector
3. Support 2 x swappable 2.5 inch SSD bay
4. Support 3 x Mini PCI-e
5. In-vehicle power design : 9-36Vdc power input with power ignition
| System |
| CPU | Intel® Sky-lake-S 6th Gen Core™ i7-6700 TE Intel® Sky-lake-S 6th Gen Core™ i5-6500 TE Intel® Sky-lake-S 6th Gen Core™ i3-6100 TE |
| Chipset | Intel® Q170 chipset |
| Memory | 2 x DDR4-SO-DIMM |
| Video |
| Chipset | Intel® HD Graphics 530 |
| Video Memory | Intelgrated |
| Video Interface | 1 x HDMI (With locking bracket) 1 x VGA 1 x DVI-D |
| Storage |
| SATA | 2 x SATA III port |
| Disk Bay | 2 x swappable 2.5 inch SSD bay |
| CF | 1 x CFast |
| I/O |
| Ethernet | 2 x GbE, RJ45, Intel i210IT chipset |
| PoE | 4 X POE GbE LAN port with RJ45 connector (802.3at ,total 60W max) |
| USB | 8 X USB 3.0 |
| Serial Port | 4 X COM - DB9 (RS232/RS422/485) |
| CAN Bus | CAN Bus 2.0B or OBD II (J1939) by SKU |
| GPIO | GPIO 4-in / 4-out, |
| Audio | 3 x Audio jack Green: Audio out Blue: Remote switch Pink : Mic in |
| Mini-PCI-e | 3 x Mini PCI-e socket |
| SIM Card | 2 x SIM card Socket |
| Others |
| WatchDog Timer | 1~255 sec. software programmable(0=Disable) |
| TPM | On-board TPM 2.0 (By request) |
| G Sensor | 1 x G Sensor board |
| Software |
| OS Support | Windows 10 (64 bit) / Linux kernel to 4.4 or above(64 bit) |
| Power Requirement |
| Power Input | Power sub system spec:9-36Vdc Power Input with power ignition function |
| Mechanical & Environment |
| Dimension | 270mm x 170mm x 63mm |
| Operating Temp. | -25°C ~ 60°C |
| Chassis | Aluminum extrusion heat sink & metal chassis |
| Thermal Design | Fan less |
| Weight | 6.2 Kg |
| Storage Temp. | -40~80°C (-40~176°F) |
| Safety | CE, FCC class B, E-Mark |
| Packing List |
| ● 1 x IVS-6000 |
| ● 1 x System Driver CD |
| ● 1 x Terminal block female 3pin |
| ● 1 x HDMI locking bracket |
| ● 1 x 8 bit GPIO/CAN Cable |
| ● 1 x Remote switch cable |
| Ordering Information |
| IVS-6000-01 | with CAN Bus |
| IVS-6000-02 | with OBD II |
| IVS-6000-03 | with CAN Bus , S SKU for install Sierra wireless module use |
| IVS-6000-04 | with OBD II, S SKU for install Sierra wireless module use |
| Option Module List |
| ● EC20/EC25 (Quectel)(4G + GPS + Glonass)module |
| ● Sierra MC7430(APAC)(4G + GPS + Glonass)for s moodel only |
| ● Sierra MC7455(America)(4G + GPS + Glonass)for s moodel only |
| ● Jwx6058 (Qualcomm. QCA6174A-5)Wi-Fi5+BT5.0 |
| ● G sensor Board (ADXL345) |
| ● 4GB DDR4 2133 SO-DIMM 1Rx8 |
| ● 8GB DDR4 2133 SO-DIMM 2Rx8 |
Specifications are subject to change without notice.
