Intel Core i7/Xeon COM Express Basic Type 6 Module

1. Newest platform and highest performance COM Express Basic Type 6
2. The Intel CM246 Chipset
3. Intel® Core i7- 9850HE/Xeon 2176M Processor
4. Support Two DDR4 SODIMM , up to 64GB
5. 24 PCI-e Lanes
6. 1x GbE


 System
 CPU  Intel® Core i7-9850HE Processor
 (2.7GHz/4.4GHz, 6C/12T,9MB)
 Intel® Xeon E 2176M Processor
 (2.7GHz/4.4GHz, 6C/12T,12MB)
 Chipset  Intel CM246
 Memory  2 x 2666 DDR4 SODIMM up to 64GB
 BIOS  AMI
 WatchDog Timer  Software programmable 0~255 sec
 Video
 Graphic
 Controller
 ● Intel® UHD Graphics 630
 Video Interface  ● 1 x VGA DB15 Display Output,supports max resoiution
   2048 x 1536@75Hz
 ● 2 x DDI Port Output, supports max resoloution up to
   4096x2304@60Hz
 Storage
 SATA ● 4 x SATA III with 6Gb/s
 I/O
 Ethernet Chip  ● 1 x Intel I210AT GbE Lan, supports PXE Boot
 Expansion
 Interface
 ● 16 x PCI-e 3.0 Lanes
 ● 8 x PCI-e 2.0 Lanes
 Serial Interface  2 x COM port Interface (TX/RX only)
 USB  4 x USB 3.1, 8 x USB 2.0
 GPIO  8-bit Digital I/O, 4-bit DI and 4-bit DO
 Audio Codec  Intel High Definition Audio
 Software
 OS Support  ● Linux Kernel 4.14 & above
 Power Requirement
 Power Input  ● 1 x 24-pin ATX Power Connector
 ● 1 x 8-pin ATX 12V Power Connector
 Power   Consumption  TBD
 Mechanical & Environment

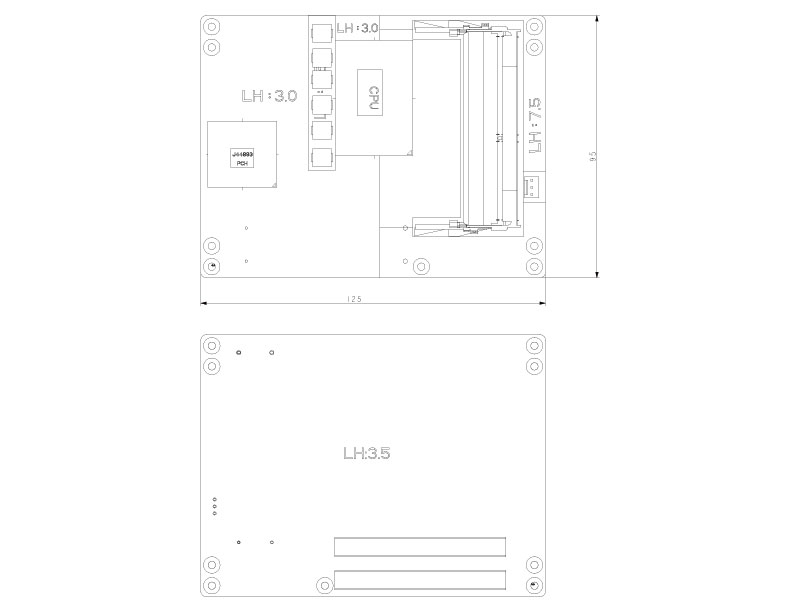

 Dimension  125 mm x 95 mm (4.92" x 3.74") COM Express Basic
 Weight  TBD
 Operating Temp.  0~60°C (32~140°F)
 Storage Temp.  -20~80°C (-4~176°F)
 Relative Humidity  0~90% @, non-condensing
 Safety  CE, FCC Compliant
 Packing List
 ● 1 x ACM-XE21B6
 ● 1 x CD Title
 ● 1 x Quick Guide
 Ordering Information
ACM-XE21B6 A1  Intel Xeon E 2176M, COM Express Type 6 Basic
ACM-XE21B6 A2  Intel core i7 9850HE, COM Express Type 6 Basic

Specifications are subject to change without notice.
