| Description |

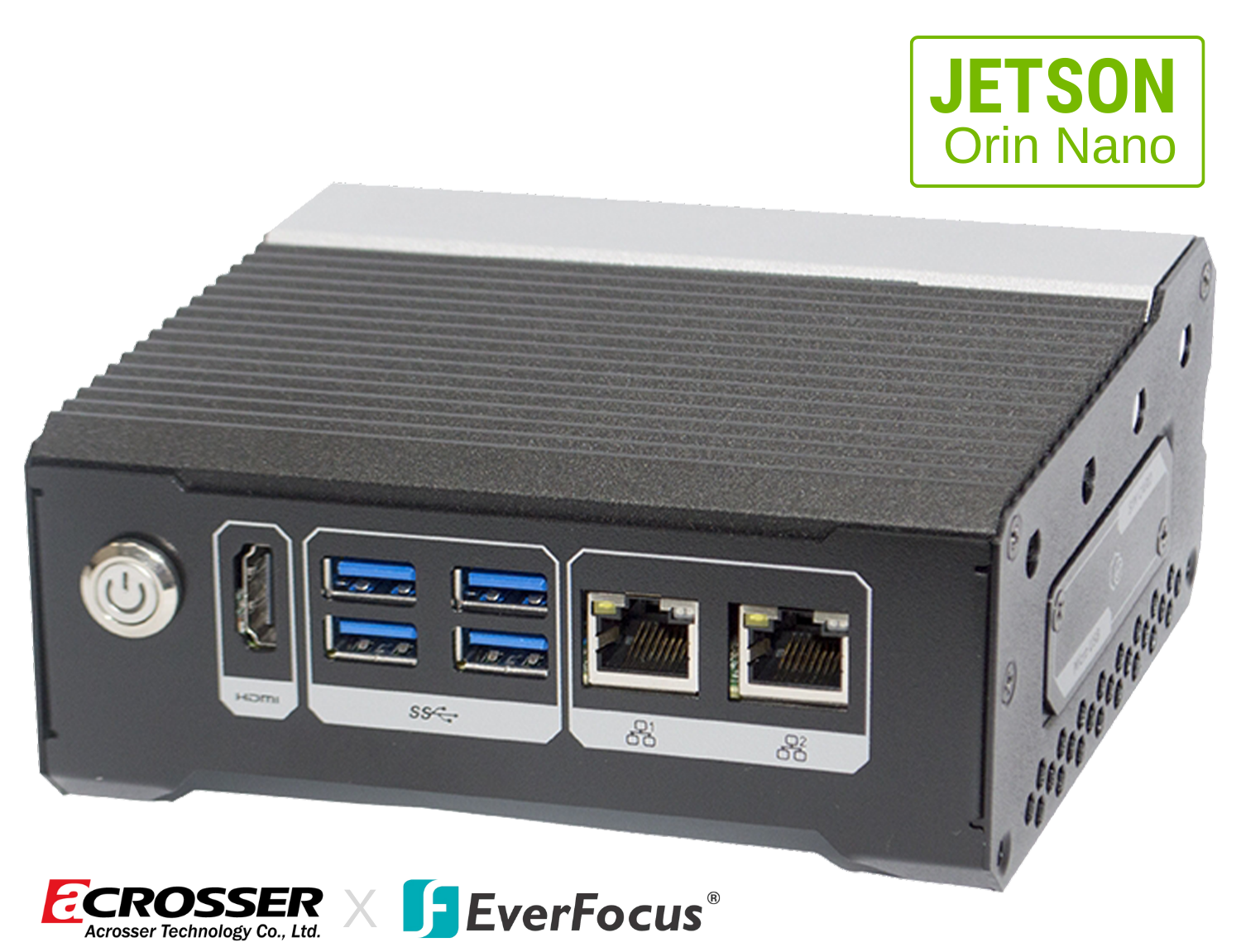

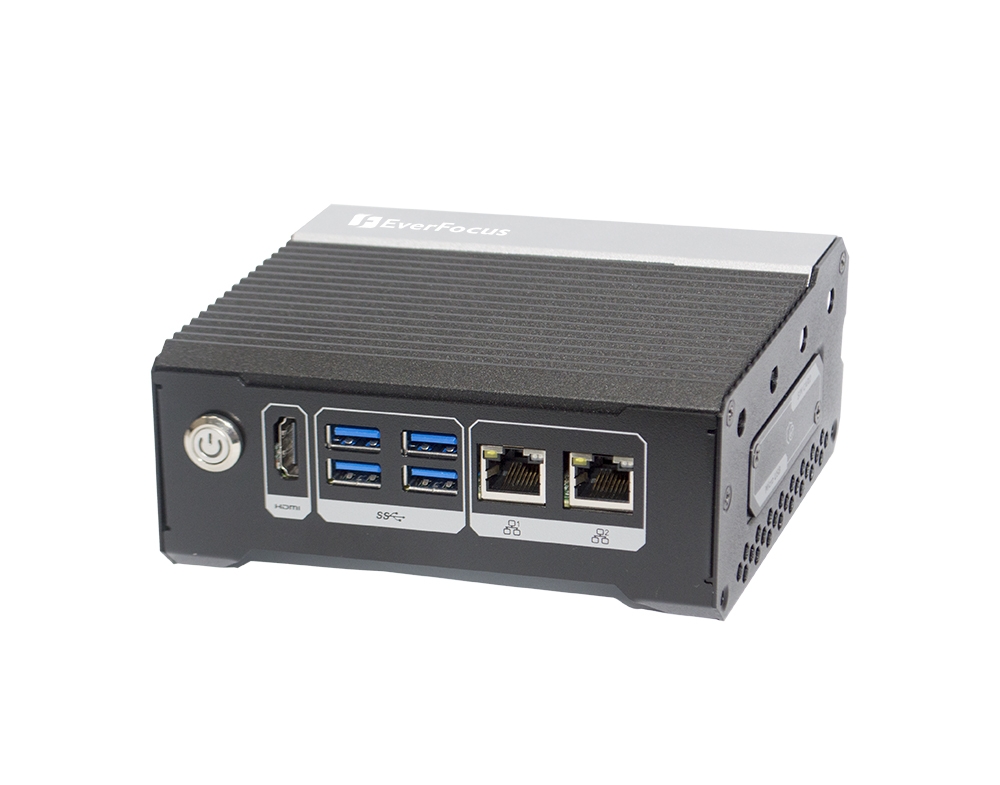

| AES-ORNOE is an NVIDIA-platform AI computing system. On a parallel trajectory, the NVIDIA Jetson Orin Nano module enters the stage with a capacity of up to 40 TOPS, an astonishing advancement that marks an 80-fold increase from its precursor, the Jetson Nano module. This monumental stride in processing capacity underscores the commitment to pushing the boundaries of technological innovation. |
| I/O Connectors |
 |
| Ask an Expert > |
|
| Acrosser Academy |
   3.gif) |
| Features |
|
• Powered by NVIDIA® Jetson Orin™ Nano • Onboard 8GB / 4GB 128-bit LPDDR5 • Multiple I/O interface connections for data collection • Gigabit LAN, USB 3.1, Serial Port, CAN-FD • Wide operating temperature range -20˚C to 60˚C |
| |
| System |
| CPU | NVIDIA® Jetson Orin™ NX 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1024/512-core NVIDIA Ampere architecture GPU with 32/16 Tensor Cores |
| Memory | Onboard 8GB / 4GB 128-bit LPDDR5 |
| Storage | 1 x M.2 M-Key 2280, support NVMe |
| Real time clock | Yes |
| Indicators | LED indicator x 1 (Power) |
| Wireless | 1 x M.2 E-Key 2230 1 x M.2 B-Key 3052 |
| Operating System | Linux (NVIDIA Jetpack 5.1.1 and above) |
| Power Supply |
| Power Requirement |
9 to 36 VDC |
| Video Memory | Max. 25W (with Fan) |
| MTBF (Hours) | -- |
| Environmental and Mechanical |
| Dimension | 136mm x 110mm x 57mm |
| Weight | 0.9 kg |
| Mouting/Installation | Din Rail, Wall Mount, VESA |
| Operating Temp. | -4 °F ~ 140 °F (-20 °C ~ 60 °C) |
| Storage Temp. | -40 °F ~ 176 °F (-40 °C ~ 85 °C) |
| Operating Humidity | 10% ~ 95% relative humidity, non-condensing |
| Certification |
| Regulations | CE, FCC |
| Carrier | Planning |

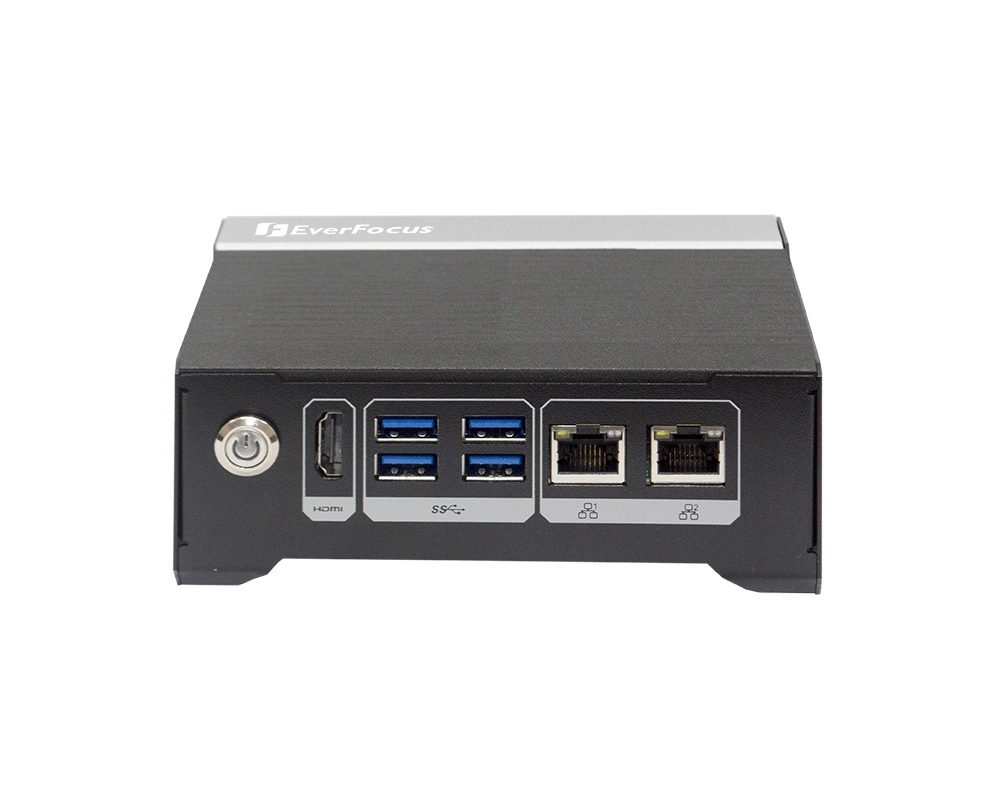

| Interface |
| Serial Port | 1 x RS-485 |
| CAN Bus | 1 x CAN bus |
| Ethernet | 2 x GbE LAN, RJ45 |
| USB | 4 x USB 3.1, Type-A |
| DI/DO | -- |
| AI/AO | -- |
| Display | 1 x HDMI 2.0-Out |
| Power Connector | Terminal Block |

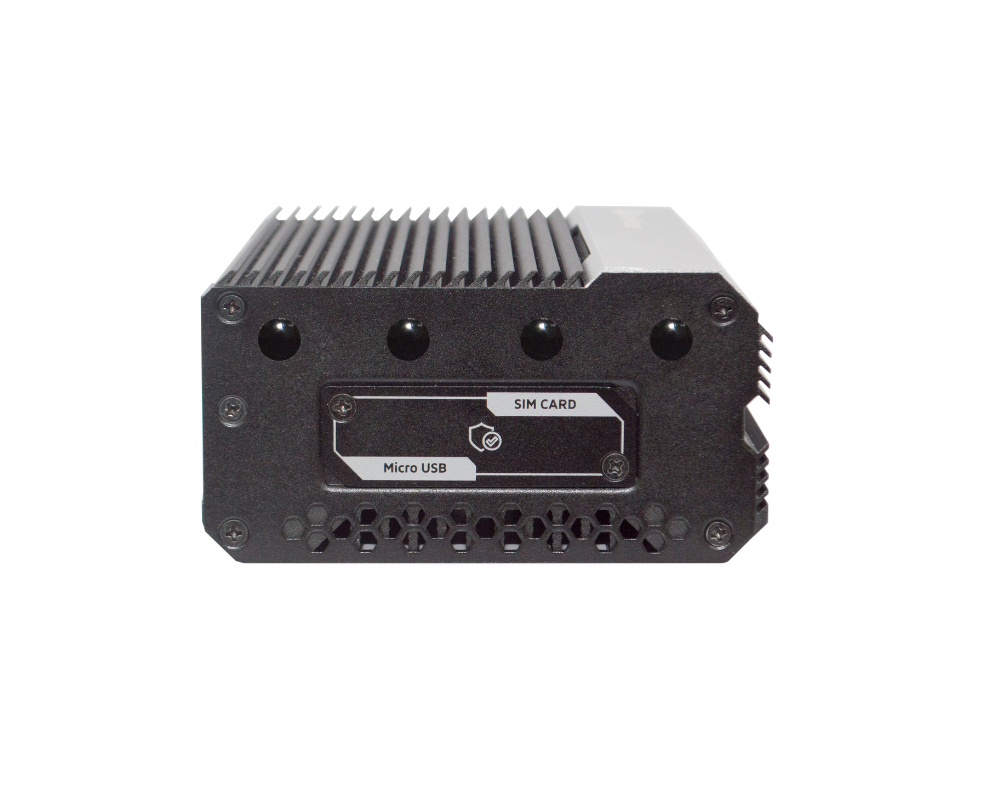

| Debug Port | 1 x Micro USB for console |
| Expansion Slot | 1 x SIM card slot 1 x Micro SD slot |
| Other Interface | -- |
| Radio Frequency |
| LTE 4G (CAT 1) (Optional) |
3GPP Rel.9 compliant protocol Frequency bands: FDD LTE: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19 /B20 /B25/B26/B28 TDD LTE: B38/B39/B40/B41 WCDMA: B1/B2/B4/B5/B6/B8/B19 GSM: B2/B3/B5/B8 |
| SIM card size: Micro-SIM slot Antenna type: External type Antenna connector: SMA-Male |
|
| GPS (Optional) | GPS/GLONASS/BeiDou (Compass)/Galileo |
| Packing List |
| ● AES-ORNOE x1 |
| ● 3-pin Terminal block Connector x1 |
| ● 5-pin Terminal block Connector x1 |
| ● Wall Mount x1 |
| Ordering Information |
| AES-ORNOE1 | NVIDIA® Jetson Orin™ Nano, 4GB, 9 to 36VDC |
| AES-ORNOE2 | NVIDIA® Jetson Orin™ Nano, 8GB, 9 to 36VDC |
| AES-ORNOE3 | NVIDIA® Jetson Orin™ Nano, 4GB, 128GB NVMe, 9 to 36VDC |
| AES-ORNOE4 | NVIDIA® Jetson Orin™ Nano, 8GB, 128GB NVMe, 9 to 36VDC |
| Optional Accessories |
| 4170A000012 | Cable,DC Jack to 2P,L=50 |
| 4B01XUD12060AS3 | Adapter (In:100-240V / Out: DC12V 5A 60W) |
| 4K02X00000030AR | Power Cord EU |
| 4K02X00000020AR | Power Cord US |
Specifications are subject to change without notice.
| |
