ANR-C627N1/ ANR-C627N1U/ ANR-C622N1/ ANR-C622N1U (EOL)

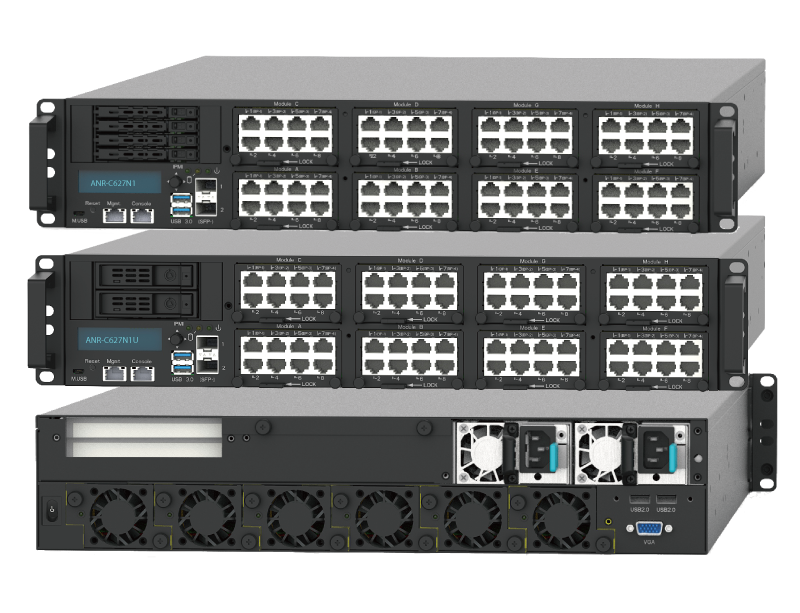

Acrosser ’s brand new 2U rack mount server, ANR-C627/622N1 series, are designed with X86 processor and positioned for Intel® Purley-based 2U network appliances which require high-performance computing (HPC) and multi-core (up to 28 cores) with hyper-threading (HT) functionality for a wide range of workloads with high memory bandwidth (DDR4-2666) and capacity.

Positioned as powerful network appliances, ANR-C627/622N1 equipped with the latest generation Intel® Xeon® Scalable processors are perfect for IoT Gateway, Edge Computing (EC), Cloud, Next Generation Firewall (NGFW), IPS/IDS, Security Gateway (Se-GW), Unified Threat Management (UTM) and Network Functions Virtualization (NFV). As excellence network appliances, ANR-C627/622N1 series support dual-socket Intel® Xeon® Scalable processors, 24* RDIMM/LRDIMM DDR4-2666, dual on-board SFP+ (10G fiber) and 8* Expandable Network Interface Modules (NIMs) for 1G/10G/40G (fiber/Copper/Bypass) various options. Strong networking ability can meet most of enterprise-class customers’ needs.

In addition, ANR-C627/622N also equipped with Intelligent Platform Management Interface (IPMI v2.0), 1+1 Redundant Platinum PSU, dual U.2 Non-volatile Memory Express (NVMe, PCIe Gen3 x4) SSDs or optional 4*2.5” hot-swappable SATA-III HDDs and smart cooling fans which enable 24/7 operation and long-term deployment. Besides, ANR-C627/622N front access I/O ports and drive bays are designed for easy access and maintenance. General speaking, ANR-C627/622N1 support a wide range of standard computing peripherals can be integrated with the chassis to meet different application requirements.

The Acrosser brand new 2U network appliances, ANR-C627/622N1, are the ideal platform for IoT appliances, enterprise Internet Security, firewall, VPN, Access Control, WAN Optimization and Unified Threat Management applications.

Acrosser had committed its valuable resources to further develop its advanced network product lines. Because of these efforts, the ANR-C627/622N1 had developed as a perfect service/network machine for most IoT business networking applications. Acrosser Technology not only provides products with high reliability and availability, but also networking appliances and products with the best scalability and manageability in the industry. Acrosser Technology is your best choice for building servers and workstations in today’s industrial IoT environment.

Product EOL Notice
(This model will be EOL after 2022/12/31)

  1.  Intel® C627/C622 Platform
  2.  2 x Intel® Xeon® Scalable Processors
  3.  24 x RDIMM/LRDIMM DDR4-2666/2400
  4.  8 x Exp. NIM (1G/10G/25G/40G, Fiber/Copper/LAN Bypass)
  5.  1 x Management port
  6.  2 x 10G Fiber (SFP+)
  7.  4 x 2.5” SATA-III Hot-swappable / 2 x U.2 NVMe Hot-swappable
  8.  1 x mSATA & 1 x CFast
  9.  Hot-swappable smart cooling fan
10. 1+1 Redundant Platinum PSU (800W)


 CPU  Intel® Xeon® Scalable Processors
 Intel® Xeon® Platinum 8168 (24C, 2.7GHz)
 Intel® Xeon® Gold 6132 (14C, 2.6GHz)
 Intel® Xeon® Gold 5119T (14C, 1.9GHz)
 Intel® Xeon® Gold 5115 (10C, 2.4GHz)
 Intel® Xeon® Silver 4116T (12C, 2.1GHz)
 Intel® Xeon® Silver 4114T (10C, 2.2GHz)
 Chipset  Intel® PCH C622 (QAT:n/a)
 Intel® PCH C627 (QAT:100Gbps)
 Memory  24 x RDIMM/LRDIMM DDR4-2666/2400
 WatchDog Timer  Software programmable 0~255 sec.
 Video Interface  VGA
 Chipset  1 x Intel® I210
 1G  1 x GbE Copper (RJ-45) via I210 (Mgmt.)
 10G/40G  2x 10G Fiber (SFP+)
 LAN bypass  Support with Exp. NIM
 HDD Bay  4 x 2.5” SATA-III Hot-swappable / 2 x U.2 NVMe Hot-   swappable
 mSATA  1 x mSATA socket
 Fast  1 x CFast socket
 Console port  1 x Serial console (RJ-45)
 1 x USB console (micro-USB)
 USB port  2 x USB 3.0 (front-side)
 2 x USB 2.0 (rear-side)
 LCM  Graphic LCM
 GPIO  8-bit GPIO (4-In, 4-Out), on-board pin header
 Exp. NIM  8 x Exp. NIM Hot-swappable
 (1G/10G/25G/40G, Fiber/Copper/LAN Bypass)
 Exp. PCIe slot  1 x Exp. PCIe Gen3 x16 slot (FHFL)
 Power Requirement
 Power Supply Unit  1+1 Redundant Platinum PSU (800W) 100-240VAC
 OS Support  Linux Kernel 4.4 or above, (64-bit)
 Mechanical & Environment
 Dimension  440 (W) x 89 (H) x 670 (D) mm
 Operating Temp.  0~ 40°C (32~104°F)
 Storage Temp.  -20~80°C (-4~176°F)
 Relative Humidity  0 to 90% @40°C, non-condensing
 Operating Temp.  CE, FCC Class A, RoHS 2, cULus
 Packing List
 ● ANR-C62xN1 system x 1
 ● SATA cable x 4
 ● CD utility x 1
 ● RJ45 console cable (RJ45 <-> DB9) x 1
 ● USB console cable (Micro-B <-> Type A) x 1
 ● USA / EU / JPN / UK / AS / NZS / SA / India power cord x 2
 ● Rack bracket x 1
 ● Box packing x 1
 ● Screw pack x 1
 ● Slide Rail x 1
 Ordering Information
 2U Rackmount IoT Gateway/Network Server
 .Intel® PCH C627/C622 + Purley platform
 .8 x Exp. NIM (1G/10G/25G/40G, Fiber/Copper/LAN Bypass)
 .1 x Management port
 .2 x 10G Fiber (SFP+)
 .4 x 2.5” SATA-III Hot-swappable (S/W RAID 0/1/5/10)
 .1+1 Redundant Platinum PSU (800W)
 2U Rackmount IoT Gateway/Network Server
 .Intel® PCH C627/C622 + Purley platform
 .8 x Exp. NIM (1G/10G/25G/40G, Fiber/Copper/LAN Bypass)
 .1 x Management port
 .2 x 10G Fiber (SFP+)
 .2 x U.2 NVMe Hot-swappable (S/W RAID 0/1)
 .1+1 Redundant Platinum PSU (800W)

Specifications are subject to change without notice.
