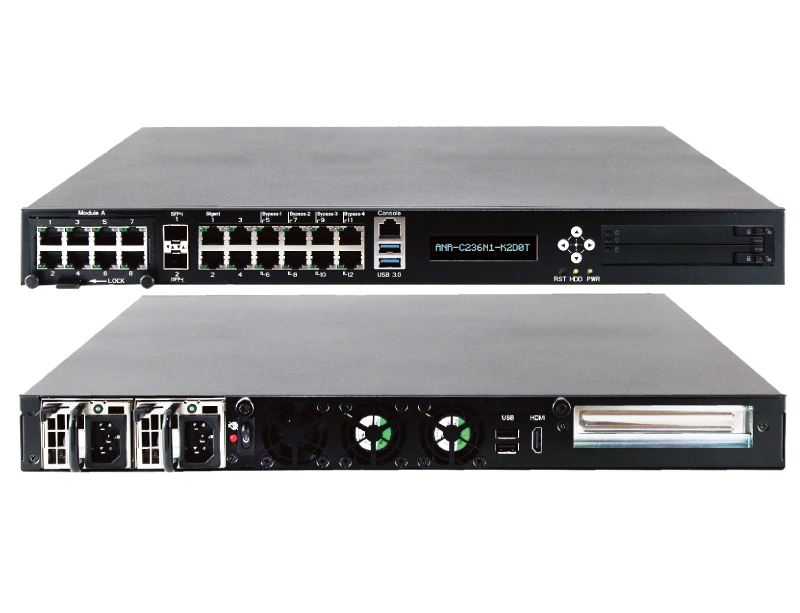

ANR-C236N1, a powerful 1U rackmount server with unique Dual-Protection feature which allows simultaneously supporting both hot swappable HDD/SSD and the highly-effective redundant power supply. This Dual-Protection can eliminate unnecessary failures, reduce the chance of system errors, and improve server efficiency, as well as the IT staff efficiency.
Whether it is the web server, mail server, UTM or any other network application platform, stability and reliability are absolutely the first 2 priority considerations for buyers. Even for a short period, mechanical failure will cause great loss in business.
To meet these needs, the new and powerful Acrosser ANR-C236N1 series server comes with its unique Dual-Protection feature which protects your server/network to run safety 24/7. The ANR-C236N1 is equipped with a hot-swappable HDD/SSD for RAID 0/1 which allows your IT staff to remove the malfunctioning HDD/SDD without shutting down the machine, thereby eliminating machine downtime. The other feature of Dual-Protection is the ANR-C236 is also equipped with 1+1 redundant power supply units (RPSU) which avoids the unexpected power failure and increase the power supply product life by balancing the power output.
1. Intel® C236 Platform
2. Intel® Xeon® E3-1275 Family v6
3. Intel® 7th Gen CPU Kabylake-S Core™ i7/i5/i3
4. 4 x UDIMM DDR4-2400, ECC/non-ECC, (up to 64GB)
5. 1 x Exp. NIM (1G/10G/40G Fiber/Copper/LAN Bypass)
6. 2 x SFP+ (10G Fiber)
7. 12 x GbE Copper (4-pair bypass) & 1 Mgmt. port
8. 2 x 2.5" Hot-swappable (RAID 0/1), 1 x mSATA & 1 x CFast
9. 3 x Smart cooling fan
10. 1+1 Redundant PSU
| System |
| CPU | Intel® Xeon® E3-1275 v6 Intel® 7th Gen CPU Kabylake-S Core™ i7-7700 Intel® 7th Gen CPU Kabylake-S Core™ i5-7500 Intel® 7th Gen CPU Kabylake-S Core™ i3-7101E |
| Chipset | Intel® PCH C236 |
| Memory | 4 x 288-pin UDIMM DDR4-2400, ECC/non-ECC,(up to 64GB) |
| BIOS | AMI |
| WatchDog Timer | Software programmable 0~255 sec. |
| Video |
| Video Interface | HDMI 1.4 |
| Ethernet |
| Chipset | Intel® I210/I350 (10/100/1000Mbps), LAN[1:8] / LAN[9:12] Intel® X710-BM2 (10G Fiber), SFP+[1:2] |
| Connector | 12x GbE Copper (RJ-45) 2x 10G Fiber (SFP+) |
| LAN bypass | 4-pair |
| Storage |
| mSATA | 1 x mSATA socket (support full-size module) |
| CFast | 1 x CFast socket |
| HDD Bay | 2 x 2.5” SATA-III Hot-swappable (RAID 0/1) |
| I/O |
| Console port | 1 x Serial console (RJ-45) |
| USB port | 2 x USB 3.0 (front-side) 2 x USB 2.0 (rear-side) |
| LCM | 16 x 2 characters LCM with 4-key button |
| GPIO | 8-bit GPIO (4-In, 4-Out), on-board pin header |
| Exp. NIM | 1 x Exp. NIM(1G/10G/40G, Fiber/Copper/LAN Bypass) |
| Exp. PCIe slot | 1 x Exp. PCIe slot |
| OPMA slot | 1 x OPMA slot (for IPMI 2.0 module, by project) |
| Power Requirement |
| Power Supply Unit | 1+1 Redundant PSU (250-300W) 100-240VAC |
| Software |
| OS Support | Linux Kernel 4.4 or above, (64-bit) |
| Mechanical & Environment |
| Dimension | 440 (W) x 44 (H) x 500 (D) mm |
| Operating Temp. | 0~ 40°C (32~104°F) |
| Storage Temp. | -20~80°C (-4~176°F) |
| Relative Humidity | 0 to 90% @40°C, non-condensing |
| Operating Temp. | CE, FCC Class A, RoHS 2, cULus |
| Packing List |
| ● ANR-C236N1 series system x 1 |
| ● SATA cable x 2 |
| ● CD utility x 1 |
| ● Console cable (RJ-45 to DB9) x 1 |
| ● USA / EU / JPN / UK / AS / NZS / SA / India power cord x 2 |
| ● Rack bracket x 1 |
| ● Box packing x 1 |
| ● Screw pack x 1 |
| ● Slide Rail x 1 |
| Ordering Information |
| ANR-C236N1- K2D0T |
Networking 1U Rackmount Intel® C236 PCH + Kabylake platform 1 Exp. NIM, 12 GbE LANs + 1 Mgmt., 2 SFP+ Redundant PSU |
| ANR-C236N1- K2D00 |
Networking 1U Rackmount, Intel® C236 PCH + Kabylake platform, .1x Exp. NIM (1G/10G/40G, Fiber/Copper/LAN Bypass) .12x GbE LANs (4-pair bypass) + 1x Mgmt. .1+1 Redundant PSU |
| ANR-C236N1- K1D00 |
Networking 1U Rackmount, Intel® C236 PCH + Kabylake platform, .1x Exp. NIM (1G/10G/40G, Fiber/Copper/LAN Bypass) .12x GbE LANs (4-pair bypass) + 1x Mgmt. .Single PSU, |
Specifications are subject to change without notice.
