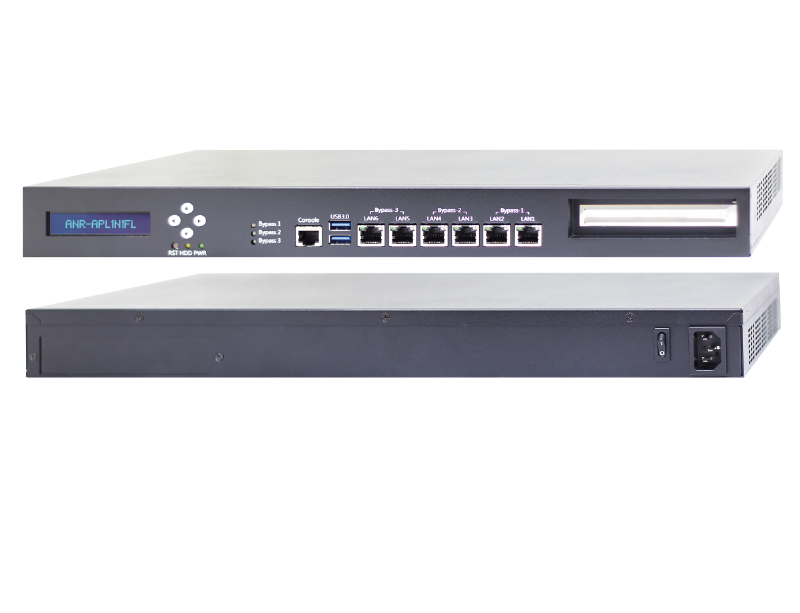

Intel® Apollo Lake SoC series Networking 1U Rack Mount Fanless Solution,
6 x GbE LANs with 3-pair Bypass

1. Intel® Apollo Lake SoC J-series/N-series/E-series
2. 1 x SO-DIMM DDR3L-1866 MHz, up to 8GB
3. 6 x GbE, 2 x USB 3.0
4. 1 x PCIe Expansion Slot
5. 8 x GPIO
6. 1 x LCM


 CPU  Intel® Apollo Lake SoC J3455 CPU
 Intel® Apollo Lake SoC J3355 CPU
 Intel® Apollo Lake SoC N4200 CPU
 Intel® Apollo Lake SoC N3350 CPU
 Intel® Apollo Lake SoC E3950 CPU
 Intel® Apollo Lake SoC E3940 CPU
 Intel® Apollo Lake SoC E3930 CPU
 Chipset  Intel® Denverton SoC
 Memory  1 x SO-DIMM DDR4-2400 for Atom C3558


 Graphic Controller  Intel® HD Graphics
 Video Interface  1 x VGA (1 x internal header)


 SATA  1 x SATAIII / mSATA (Optional)
 CF  1 x CF Card / CFast (Optional)


 Ethernet  6 x GbE,Intel® I210-AT Ethemet Controllers
 3rd LAN Bypass  3-pair
 Expansion Slot  1 x PCle x 8 Slot (x1 Signal)
 Serial Port  1 x Console Port (RJ45)
 USB  2 x USB 3.0 Port
 GPIO  8-bit Digital I/O
 LCM  16 x 2 characters LCM with 4-key button


 Hardware Feature
 Hardware 1) CPU Voltage
2) CPU Temperature
3) System Temper
4) RTC Battery Voltage
 WatchDog Timer Software programmable 1~255 sec.


 Power Requirement
 Power Input  60W Open Frame Power Supply


 OS Support  Windows 10 IoT Enterprise LTSB Entry
 Ubuntu 18.04 64bit


 Mechanical & Environment
 Security  TPM 2.0
 Dimension  440 x 266 x 44mm
 Operating Temp.  0~40°C (32~104°F)
 Storage Temp.  -20~80°C (-4~176°F)
 Safety  CE, FCC class A


 Packing List
 ● ANR-APL1N1FL system
 ● 1 x Driver CD
 ● 1 x Quick Guide
 ● 1 x Console Cable (DB9)
 ● 1 x SATA Cable
 ● 1 x SATA Cable


 Ordering Information
 ANR-APL1N1FL-   series 1U Rack Mount Fanless Solution with
Intel® Apollo Lake SoC J-series/N-series/E-series,
PCIe Expansion Slot


 Packing List
 ● 2GB DDR3L-1866 memory (non-ECC SO-DIMM)
 ● 4GB DDR3L-1866 memory (non-ECC SO-DIMM)
 ● 8GB DDR3L-1866 memory (non-ECC SO-DIMM)
 ● Acrosser LOGO sticker x 2 (Top Front)


Specifications are subject to change without notice.
