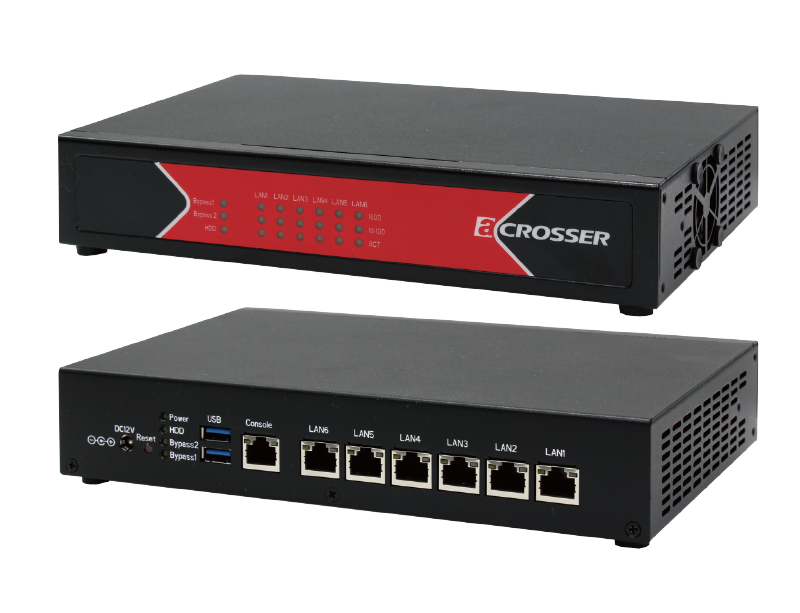

Acrosser’s Microbox Network device AND-G420N1 is powered by AMD®
G-Series GX-420MC, 4-core@2.0GHz, 2MB L2 cache, DDR3-1600 memory (up to16GB). The
CPU supports AES (Advanced Encryption Standard) technology, making it an ideal
choice for network security vendors, encryption faster and more secured.
With a remarkable 6x Intel® GbE LAN Controller, AND-G420N1 offers the utmost
compatibility & connectivity with a mini form factor. Besides, the model can handle
2-pair LAN bypass configured via software APIs or hardware jumpers. AND-G420N1
also provides luxurious sets of I/O, including 2x USB3.0 ports, 1x SATA-II port, 1x
Console port and pin headers for 2x USB2.0 & GPIOs (4-In, 4-Out) internally
AND-G420N1 is an ideal desktop network appliance for network security , UTM applications,network security hardware, Network Server Hardware,like Firewall, IDP/IPS, anti-spam/virus, VPN…etc.
1. AMD® G-Series GX-420MC, 4-core@2.0GHz, 2MB L2
2. 2 x 204-pin SO-DIMM socket, DDR3-1600 MHz, Up to 16GB
3. 6 x Intel® GbE LAN
4. 2 x USB 3.0
5. 2 x USB 2.0 (internal pin header)
6. 1 x Console (RJ45)
7. 8 x GPIO (4-In, 4-Out) internal pin header
| System |
| CPU | AMD® G-Series GX-420MC, 4-core@2.0GHz, 2MB L2 |
| Memory | 2 x 204-pin SO-DIMM socket support 1600MHz DDR3 up to 16GB |
| BIOS | AMI® UEFI BIOS |
| WatchDog Timer | Software programmable 0~255 sec. (0=Disable Timer) |
| Ethernet |
| Chipset |
6 x Intel® I210-AT GbE chip |
| Connector | 6 x RJ45 with LED |
| LAN bypass | 2-pair |
| Storage |
|
SATA |
1 x SATAII port |
|
CF |
1 x Compact Flash Type-II socket(Support UDMA) |
| HDD Bay | 1 x 2.5” HDD Bay |
| I/O |
| Console Port | 1 x Console (RJ45) |
| USB | 2 x USB 3.0 |
| USB |
2 x USB 2.0 (internal pin header) |
| GPIO | 8-bit GPIO (4-In, 4-Out) internal pin header |
| Power Requirement |
|
Power Input |
1 x DC 12V/60W input |
| Software |
|
OS Support |
● Ubuntu 14.04 (32/64-bit) |
| Mechanical & Environment |
|
Dimension |
242 mm x 149.5 mm x 44 mm |
|
Operating Temp. |
0~40°C (32~104°F) |
|
Storage Temp. |
-20~80°C (-4~176°F) |
|
Relative Humidity |
0 to 90% @40°C, non-condensing |
|
EMC & Safety |
CE, FCC class A |
| Packing List |
| ● 1 x AND-G420N1 System |
| ● 1 x Console Cable |
| ● 1 x Quick User Manual |
| ● 1 x CD with Driver and Manual |
| ● 1 x Power Adaptor |
| ● 1 x Power Cord (Option for US/EU/UK/JPN) |
| ● 1 x Screw Pack |
| ● 1 x Pull-tab Opener |
| Ordering Information |
|
AND-G420N1 |
Networking Microbox, AMD® G-Series GX-420MC, |
Specifications are subject to change without notice.
