Intel® Denverton Platform, Desktop Networking Appliance.
Acrosser recommended fixiwan on AND-DNV3N3-4C, and AND-DNV3N3-4C is tested and certificated by flexiwan.
1. Intel® Denverton C3000 Platform
2. 4 core SoC
3. 1 x SO-DIMM DDR4
4. 1 x 2.5" SSD, & 1 x CFast
5. Fanless Design
| System |
| CPU | Intel® Atom® C3558 Processor (4 core) |
| Chipset | Intel® Denverton SoC |
| Memory | 1 x SO-DIMM DDR4 |
| BIOS | AMI |
| WatchDog Timer | Software programmable 0~255 sec. |
| Ethernet |
| Chipset | Intel® I211, X553 |
| Connector | 8 x GbE Copper (RJ-45) 2 x 10GbE Fiber (SFP+) |
| Storage |
| HDD Bay | 1 x 2.5” SATA-III port |
| CFast | 1 x CFast socket |
| I/O |
| Console Port | 1 x Serial console (RJ-45) |
| USB port | 2 x USB 3.0 |
| Antenna port | 4 x SMA for WLAN (IEEE 802.11a/b/g/n/ac)&4GLTE |
| GPIO | 8-bit GPIO (4-In, 4-Out), on-board pin header |
| Expansion | 2 x Mini PCIe Socket, one with SIM Socket |
| Others |
| Battery | Lithium Battery, 3V 220mAH (CR2032) |
| Hardware Monitoring |
CPU Volt. CPU & SYS Temp. |
| QAT & DPDK | Support QAT & DPDK |
| Power Requirement |
| Power Supply Unit | 12V(40W) |
| Software |
| OS Support | Linux Kernel 4.8 or above, (64-bit) |
| Mechanical & Environment |

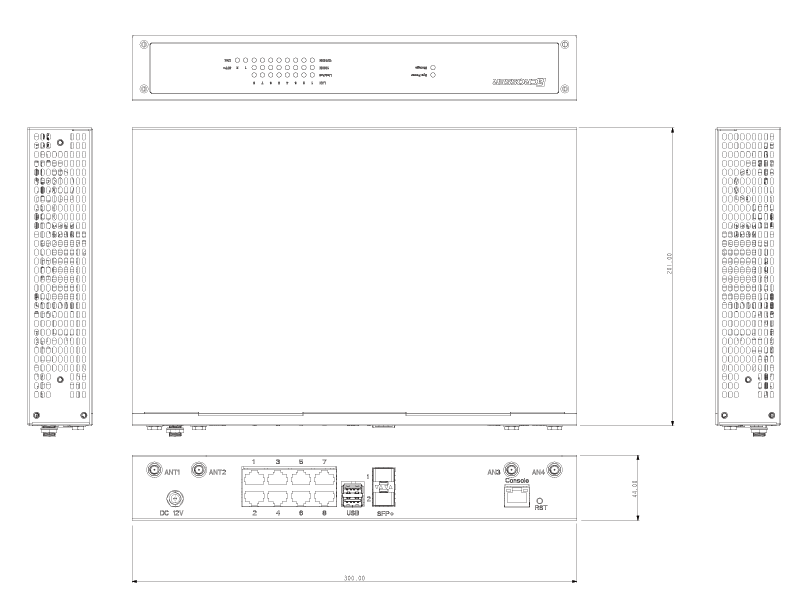

| Dimension | 300 (W) x 44 (H) x 201 (D) mm |
| Operating Temp. | 0~ 40°C (32~104°F) |
| Storage Temp. | -20~80°C (-4~176°F) |
| Relative Humidity | 0 to 90% @90°C, non-condensing |
| Certifications | CE, FCC Class A, RoHS 2, cULus |
| Model Name |
| AND-DNV3N3- 02/04/08 | Desktop Networking Appliance Intel® Denverton-NS platform 8 x GbE Copper 2 x SFP+ |
| Packing List |
| ● 1 x AND-DNV3N3-4C system x 1 |
| ● 1 x SATA cable x 1 |
| ● 1 x CD utility x 1 |
| ● 1 x Console cable (RJ-45 to DB9) x 1 |
| ● 1 x USA / EU / JPN / UK / AS / NZS / SA / India power cord x 2 |
| ● 1 x Box packing x 1 |
| ● 1 x Screw for bracket (for rack + HDD bracket) x 14 |
| Ordering Information |
| AND-DNV3N3-4C | Intel Atom® C3558 SoC, 8GbE Copper , 2xSFP+,2 USB 3.0, 1x2.5" SATAIII,1xCFast , 2x mPCle socket (for WLAN and 4G LTE) ,1x 12V DC-In |
Specifications are subject to change without notice.
