● Intel® Atom C3558 Denverton-NS Platform
● 4-Core SoC
● 2x SO-DIMM DDR4
● 6x GbE, 2x USB 3.0
● 2x Mini PCIe, One support SIM card socket
● 1x 2.5" SSD,
● TPM 2.0
|
System |
|
CPU |
Intel® Atom® C3558 Processor (4 core) |
|
Chipset |
Intel® Denverton SoC |
|
Memory |
2 x SO-DIMM DDR4-2400 for Atom C3558 |
|
BIOS |
AMI |
|
WatchDog Timer |
Software programmable 0~255 sec. |
|
Video |
|
Video Interface |
None |
|
Ethernet |
|
Chipset |
Intel® I210,Marvell 88E1543 |
|
Connector |
4x GbE Copper (RJ-45) |
|
LAN bypass |
Two Pairs |
|
Storage |
|
HDD Bay |
1 x 2.5” SATA-III port |
|
I/O |
|
Console Port |
1x Serial console (RJ-45) |
|
USB port |
2x USB 3.0 (rear-side) |
|
Antenna port |
4x SMA for WLAN (IEEE 802.11a/b/g/n/ac) & LTE |
|
GPIO |
8-bit GPIO (4-In, 4-Out), on-board pin header |
|
Expansion |
2x mini PCIe socket, One supports SIM Card Socket |
|
Others |
|
Battery |
Lithium Battery, 3V 220mAH (CR2032) |
|
Hardware |
CPU Volt. |
|
Security |
TPM 2.0 (Infineon chipset) |
|
QAT & DPDK |
Support QAT & DPDK |
|
Power Requirement |
|
Power Supply Unit |
1x DC-in 12V / AC Adapter (40W) |
|
Software |
|
OS Support |
Linux Kernel 4.8 or above, (64-bit) |
|
Mechanical & Environment |
|

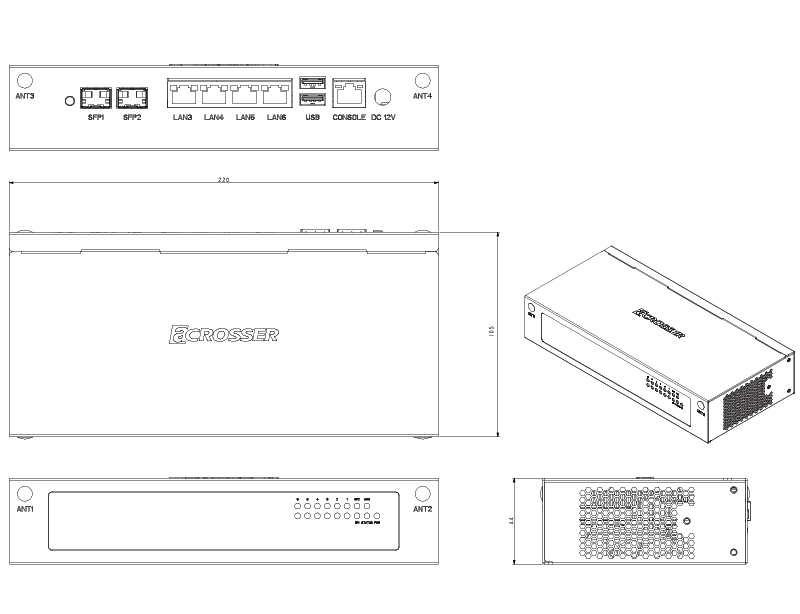

Dimension |
230 (W) x 44 (H) x 105 (D) mm |
|
Operating Temp. |
0~ 40°C (32~104°F) |
|
Storage Temp. |
-20~80°C (-4~176°F) |
|
Relative Humidity |
0 to 90% @40°C, non-condensing |
|
Certifications |
CE, FCC Class A, RoHS 2, |
|
Model Name |
|
AND-DNV3N2- |
Desktop Networking Appliance |
|
AND-DNV3N2- |
Desktop Networking Appliance |
|
Packing List |
|
● AND-DNV3N2XXP system x 1 |
|
● Console Cable x 1 |
|
● CD with Driver and Manual x 1 |
|
● Power Adapter x 1 |
|
● USA/EU/JPN/UK/AS/NZS/SA/IND power cord x 1 |
|
● Screw Pack x 1 |
|
● SATA & SATA power cable x 1 |
|
● Ear Bracket x 2 |
|
Ordering Information |
|
AND-DNV3N2- |
Desktop Networking Appliance |
|
AND-DNV3N2- |
Desktop Networking Appliance |
Specifications are subject to change without notice.
