CPU
|
Intel® Apollo Lake SoC J3455 CPU
Intel® Apollo Lake SoC J3355 CPU
Intel® Apollo Lake SoC N4200 CPU
Intel® Apollo Lake SoC N3350 CPU
Intel® Apollo Lake SoC E3950 CPU
Intel® Apollo Lake SoC E3940 CPU
Intel® Apollo Lake SoC E3930 CPU
|
|
Chipset
|
Intel® Denverton SoC
|
|
Memory
|
1 x SO-DIMM DDR3L-1866 MHz, up to 8GB
|
|
Graphic Controller
|
Intel® HD Graphics
|
|
Video Interface
|
1 x VGA (1 x internal header)
|
|
SATA
|
1 x SATAIII / mSATA (Optional)
|
|
CF
|
1 x CF Card / CFast (Optional)
|
|
Ethernet
|
6 x GbE,Intel® I210-AT Ethemet Controllers
|
|
3rd LAN Bypass
|
3-pair
|
| Expansion Slot |
(support Wifi, 4G module w/ antenna)
1 x Mini PCle Slot |
|
Serial Port
|
1 x Console Port (RJ45)
|
|
USB
|
3 x USB 3.0
|
|
GPIO
|
8-bit Digital I/O
|
|
Hardware
|
1) CPU Voltage
2) CPU Temperature
3) System Temper
4) RTC Battery Voltage
|
|
WatchDog Timer
|
Software programmable 1~255 sec.
|
|
Power Input
|
12V / 60W Adupter
|
|
OS Support
|
Windows 10 IoT Enterprise LTSB Entry
Ubuntu 18.04 64bit
|
|
Security
|
TPM 2.0
|
|

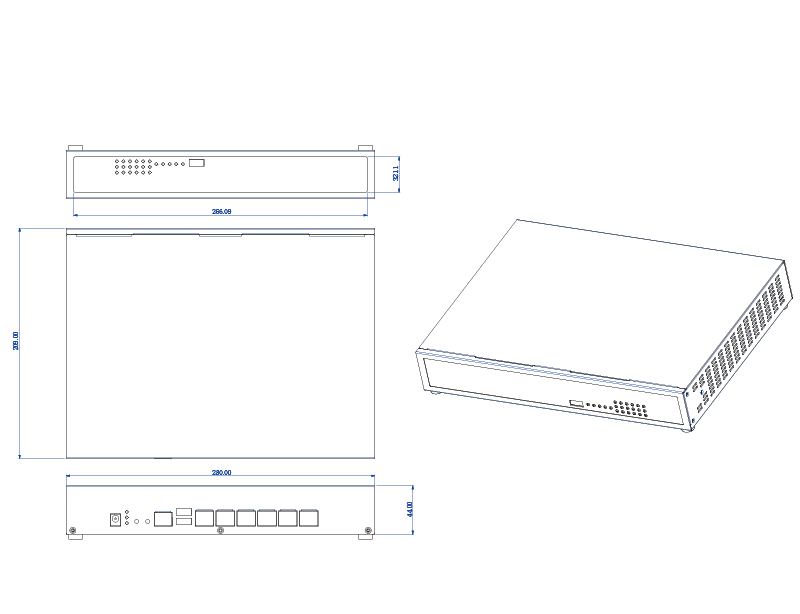

Dimension
|
280 x 209 x 44mm
|
|
Operating Temp.
|
0~40°C (32~104°F)
|
|
Storage Temp.
|
-20~80°C (-4~176°F)
|
|
Safety
|
CE, FCC class A
|
|
● AND-APL1N1FL system
|
|
● 1 x Driver CD
|
|
● 1 x Quick Guide
|
|
● 1 x Console Cable (DB9)
|
|
● 1 x SATA Cable
|
|
● 1 x SATA Power Cable
|
|
AND-APL1N1FL series
|
Microbox Fanless Solution with
Intel® Apollo Lake SoC J-series/N-series/E-series,
GbE, USB 3.0, SO-DIMM DDR3L-1866, SATA III, CF,
Mini PCIe
|
| ● 2GB DDR3L-1866 memory (non-ECC SO-DIMM) |
| ● 4GB DDR3L-1866 memory (non-ECC SO-DIMM) |
| ● 8GB DDR3L-1866 memory (non-ECC SO-DIMM) |
| ● WiFi module w/ antenna |
| ● 4G module w/ antenna |
| ● Arosser LOGO sticker x1(Top only) |
Specifications are subject to change without notice.
|
