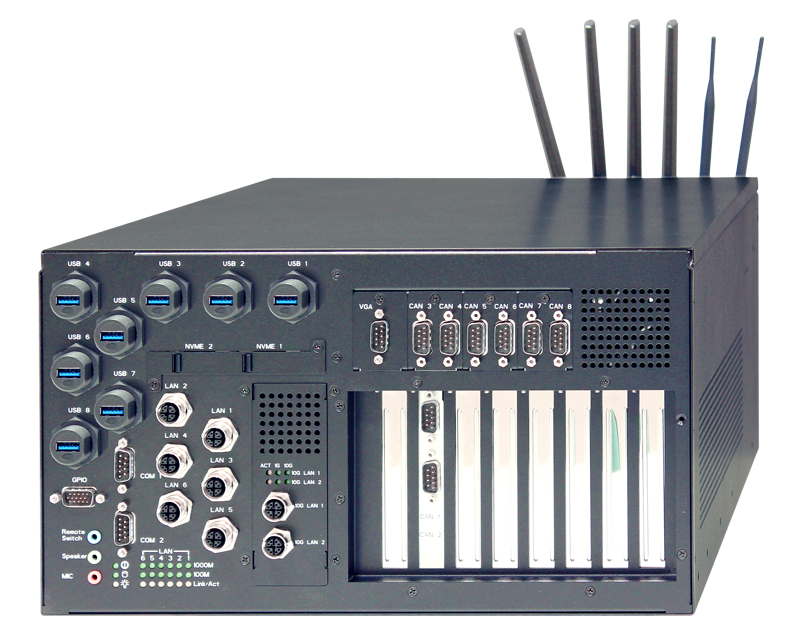

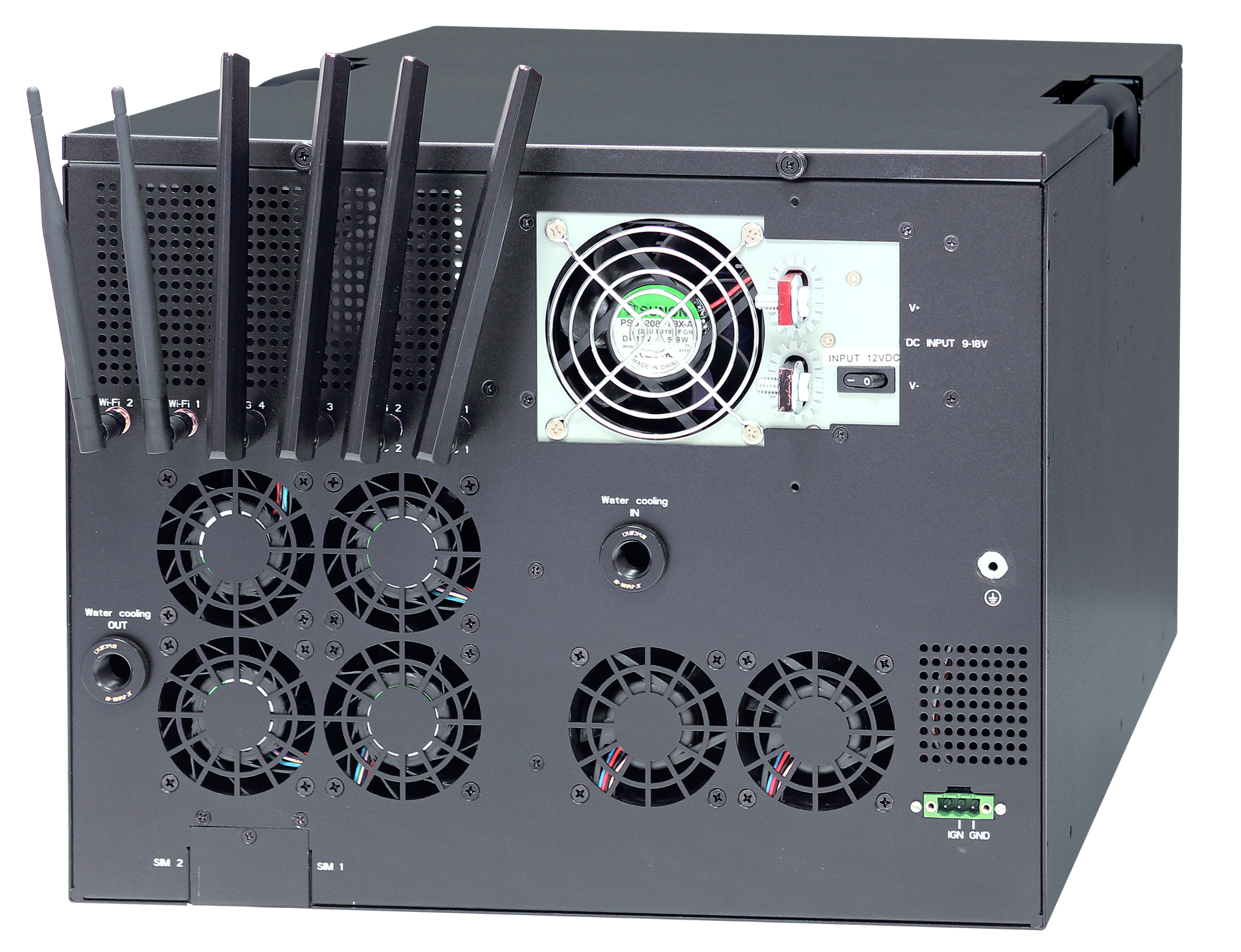

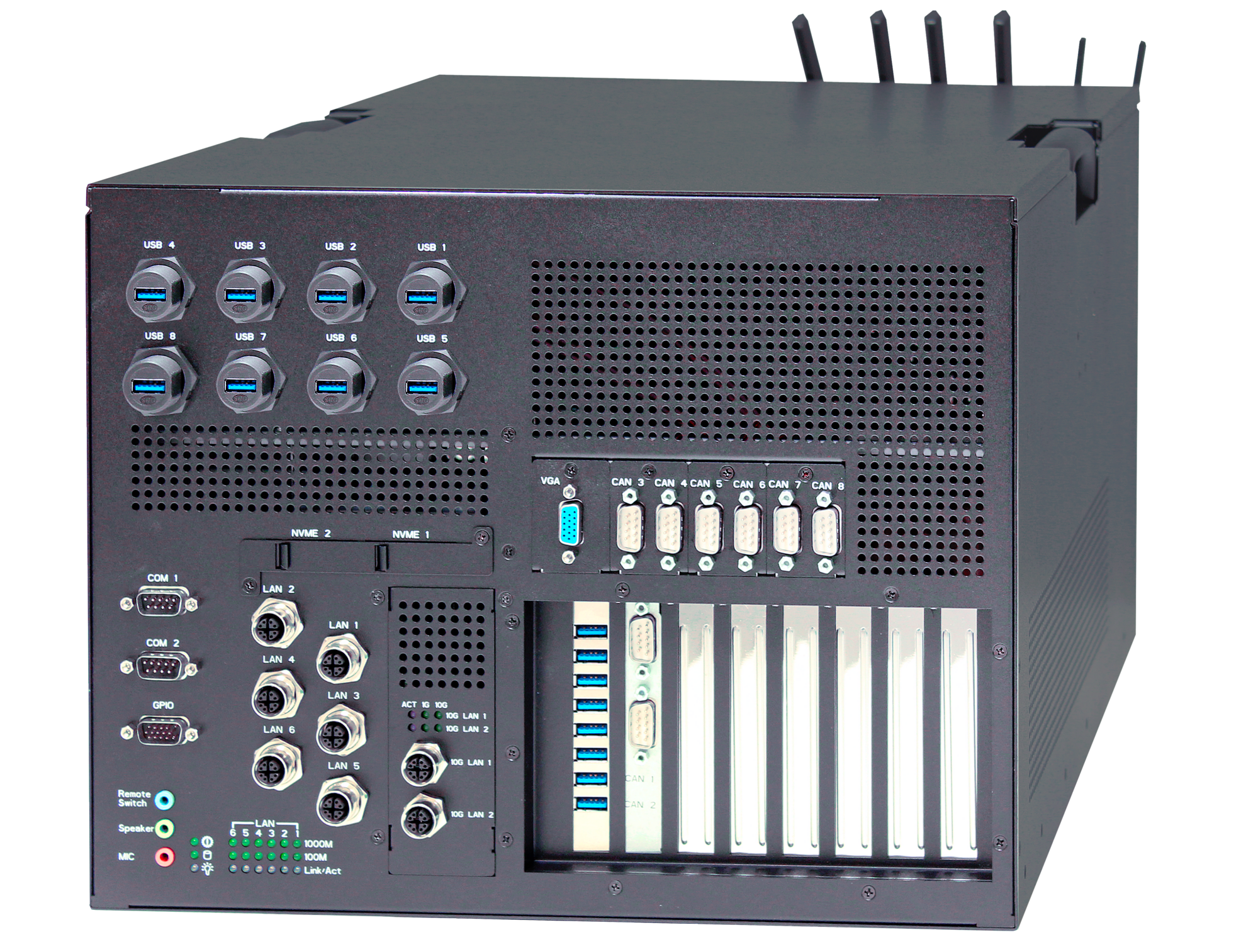

AAD-C622AX is a breakthrough Autonomous driving server and Edge AI CPU computing product that can support a maximum of 5 GPU cards.
AAD-C622AX has six major features and advantages:
With these features and advantages, Acrosser Autonomous Driving Servers can be deployed to any environment and application. There are six important applications perfect for Acrosser AAD-C622AX. They are
1. Intel® C622 Platform
2. Intel® 2nd Gen Xeon Scalable Processor
3. 6 x RDIMM DDR4-2933 (up to 384GB)
4. 3x Exp. PCIe Gen3 x16 slot (x8 signal, 1 for I/O card, 2 for GPU card)
5. 2x Exp. PCIe Gen3 x16 slot (x4 signal ,for I/O card )
6. 8 x USB3.2 Gen1 x1 (5Gbps) 13/16"-28UN USB Connector
7. 2 x 2.5" SATA-III internal Storage Bay,2 x M.2 MVME swappable SSD bay
8. 2 x 10GbE M12, 6x GbE M12 X Code
9. DC +12 V PSU power input
| System |
| CPU | Intel®2nd Gen Xeon Scalable processor |
| Chipset | lntel® C622 PCH |
| Memory | 6 x DDR4-2933 RDIMM (up to 384GB) |
| Video |
| Video Memory | Intelgrated |
| Video Interface | 1 x VGA DB15(By optional accessory kit) |
| Storage |
| SATA | 2 x SATA III internal SSD bay |
| NVME | 2 x NVME swappable SSD bay |
| I/O |
| Ethernet | 6x GbE M12 X Code (intel i210-iT) 2 x 10GbE M12 (PCH C622)(By optional accessory kit) |
| USB | 8 x USB 3.2 Gen1x1(5 Gbps)13/16”-28UN connector |
| Serial Port | 2 x COM – DB9 (RS232/RS422/485) |
| CAN Bus | By optional accessory kit |
| GPIO | 4 in/ 4 out, DB9 |
| Audio | 3 x Audio jack ● Green: Audio out ● Blue: Remote switch ● Pink : Mic in |
| Mini-PCIe | 1 x Mini PCIe socket (for WiFi) 1 x M.2 socket (for 4G/5G) |
| Exp. PCIe slot | 3 x Exp. PCIe Gen3 x16 slot (x8 signal) 2 x Exp. PCIe Gen3 x16 slot (x4 signal) |
| SIM Card | 2 x SIM card Socket |
| Others |
| WatchDog Timer | 1~255 sec. software programmable(0=Disable) |
| Security | TPM 2.0 (Infineon chipset) |
| Power Requirement |
| Power Input | 12Vdc with power ignition,max,1000W 21/48Vdc with power ignition,max,1200w |
| Software |
| OS Support | Ubuntu 18.04LTS. |
| Mechanical & Environment |

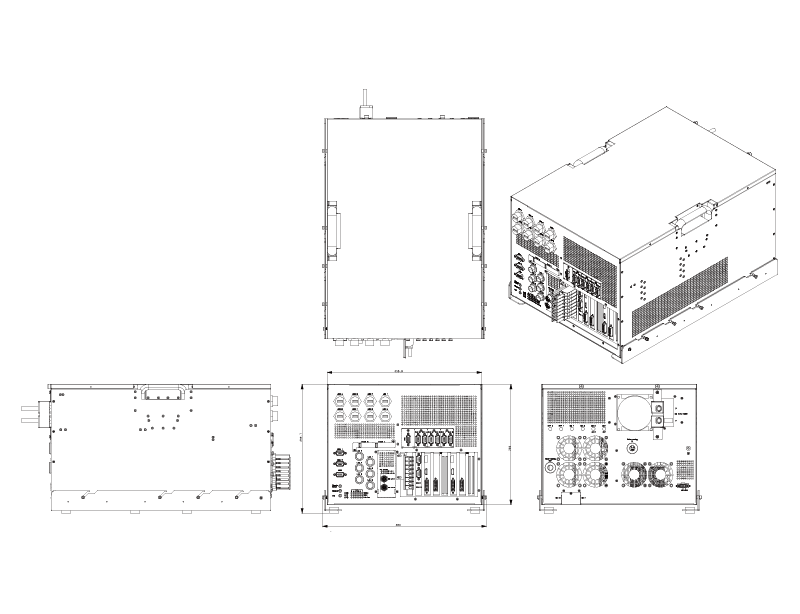

| Dimension | AAD-C622A1 359*280*510 mm without wall mount kit AAD-C622A2 359*200*510 mm without wall mount kit |
| Operating Temp. | -20 ~ 60°C with GPU cards |
| Chassis | metal chassis |
| Thermal Design | Smart Cooling Fan |
| Storage Temp | -40~80°C (-40~176°F) |
| Safety Vibration Shock |
CE / FCC class B / E Mark / RoHS IEC 60068-2-64, 5~500Hz, 3GRMS(CF/SSD) IEC 60068-2-27, 50G 500m/s2 11MS |
| Packing List |
| ● 1 x x AAD-C622A1/A2 |
| ● 1 x Ignition Terminal Block |
| ● 1 x System Bracket |
| ● 6 x M12 GbE M12 X-Coded Cable |
| ● 1 x GPU Card Retaining Set |
| Optional Module List |
| ● 8/16/32GB DDR4 2933 RDIMM |
| ● 5G + GPS + GNSS module (100070174)(SIM8202G-M2) |
| ● Wi-Fi +BT Module (100070170) |
| ● 2 ports M12 X-coded 10G kit (100070177) |
| ● 8 ports CAN FD Kit (100070180) |
| ● 8 ports CAN 2.0B kit (100070181) |
| ● 8 port USB card =>100070172 |
| ● 1DB15 VGA (100090084)(ADB-VGA2) |
Specifications are subject to change without notice.
