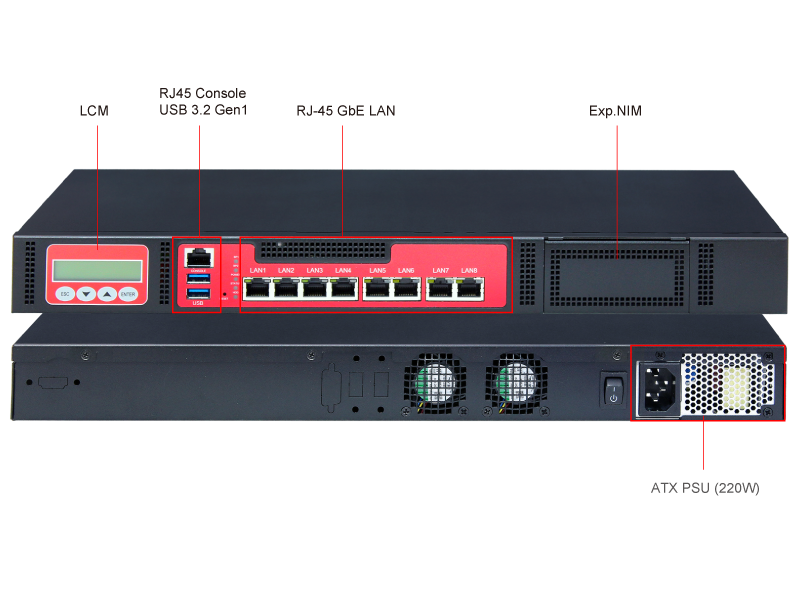

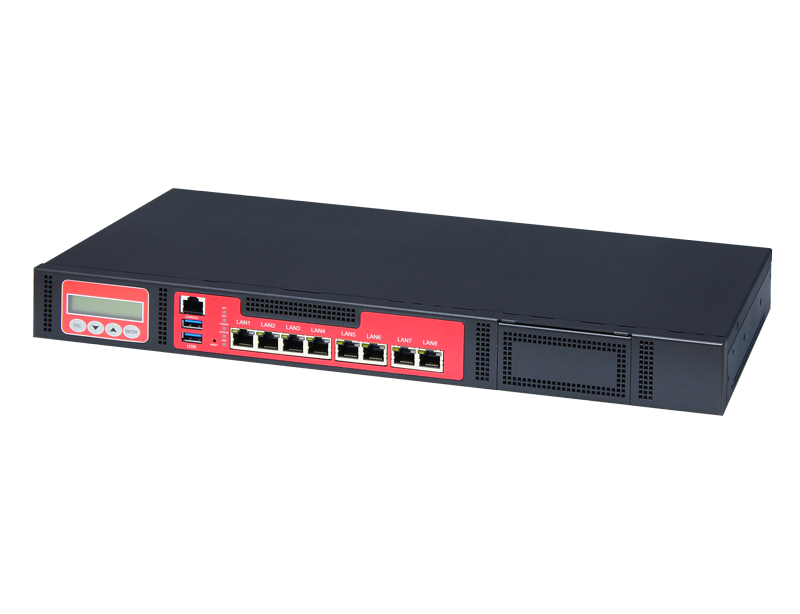

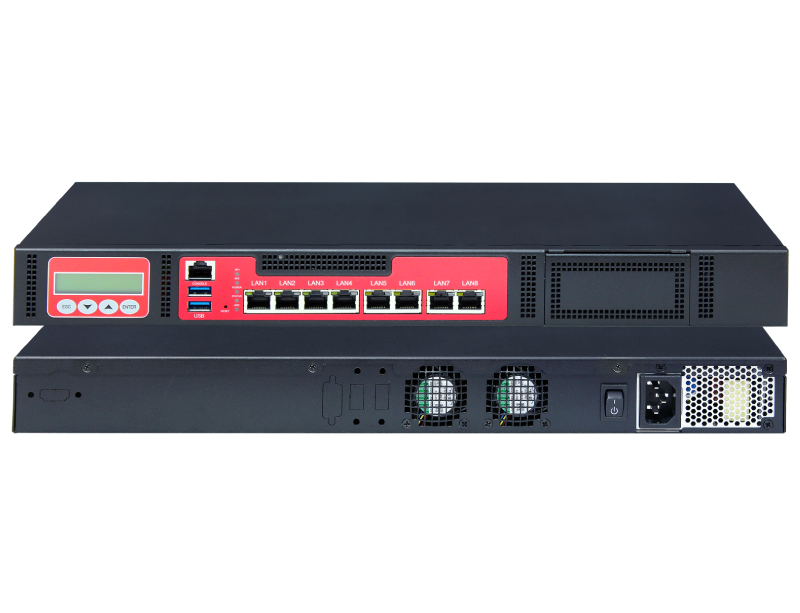

1U Rackmount Network server Intel® 8/9th Gen Coffee Lake-S Xeon E, Core™ i7, i5, i3, 1 Exp. NIM
1. Intel® 8/9th Gen Xeon E, Core™ i7/i5/i3
2. 2 x SO-DIMM DDR4
3. 1 x Exp. NIM (1G/10G/40G, Fiber/Copper/LAN Bypass)
4. 8 x GbE Copper (RJ-45)
5. 2 x 2.5"SATA-III
6. 1 x mPCIe/mSATA socket
| System |
| CPU | Intel® Xeon® E-2278GE Intel® Coffee Lake-S Core™ i7-9700E Intel® Coffee Lake-S Core™ i7-8700E Intel® Coffee Lake-S Core™ i5-9500E Intel® Coffee Lake-S Core™ i3-9100E |
| Chipset | Intel® C246 PCH |
| Memory | 2 x SO-DIMM DDR4 |
| BIOS | AMI |
| WatchDog Timer | Software programmable 0~255 sec. |
| Ethernet |
| Ethernet port | 8 x GbE Copper (RJ-45) |
| LAN bypass | 2-Pair Bypass |
| Storage |
| HDD Bay | 2 x 2.5"/3.5" SATA-III |
| mSATA | 1 x mSATA Socket shared with mPCIe socket |
| I/O |
| Console port | 1 x Serial Console (RJ-45) |
| USB port | 2 x USB 3.2 Gen1.(Front-Side) |
| Expansion | Optional 1x NIM slot |
| LCD Module | 16 characters x 2 lines with 4-key button |
| GPIO | 8-bit GPIO (4-In, 4-Out), on-board pin header |
| Exp. NIM | 1G/10G/40G, Fiber/Copper/LAN Bypass |
| Video |
| Video Interface | HDMI(Rear-Side) |
| Others |
| Battery | Lithium Battery, 3V 220mAH |
| Hardware Monitoring |
CPU Volt. CPU & SYS Temp. FAN Speeds |
| Security | Optional TPM 2.0 |
| Power Requirement |
| Power Unit | 1x ATX PSU(220W), 100-240V |
| Software |
| OS Support | Linux kernel 5.2 and above |
| Mechanical & Environment |
| Dimension | 430(W) x 44(H) x 200(D)mm |
| Operating Temp. | 0~ 40°C (32~104°F) |
| Storage temp | -20~80°C (-4~176°F) |
| Relative Humidity | 0 to 90% @40°C, non-condensing |
| Certifications | CE, FCC Class A, RoHS 2, |
| Packing List |
| ● 1 x ANR-C246E1 system |
| ● 2 x HDD/SSD kit |
| ● 1 x RJ45 console cable (RJ45 <-> DB9) |
| ● 1 x USA / EU / JPN / UK / AS / NZS / SA / power cord |
| ● 1 x Rack bracket |
| ● 1 x Screw pack |
| Ordering Information |
| ANR-C246E1 | .1U Rackmount Network Server .Intel® 8/9th Gen Xeon E, Core™ i7/i5/i3 .1 x Exp. NIM (1G/10G/40G, Fiber/Copper/LAN Bypass) .8 x 1G GbE .2 x 2.5” SATA-III .1 x mSATA/mPCIe socket .ATX PSU (220W) |
Specifications are subject to change without notice.
