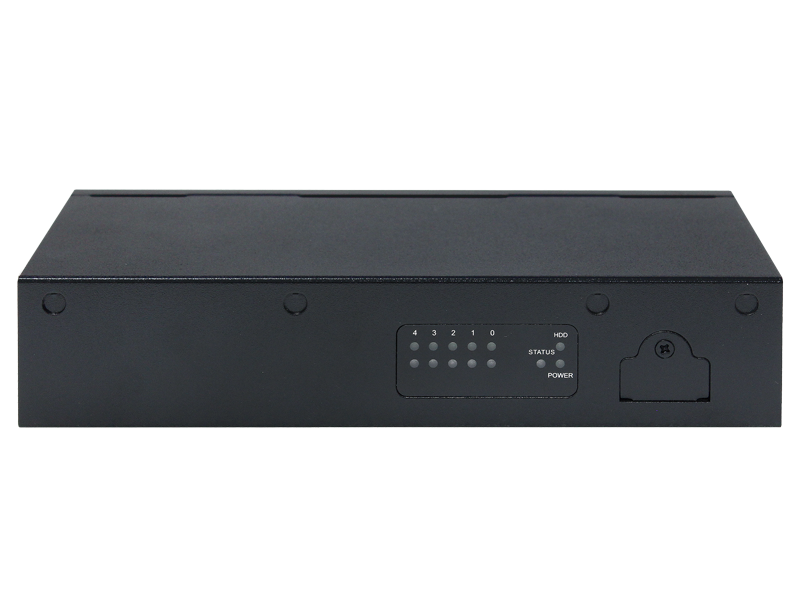

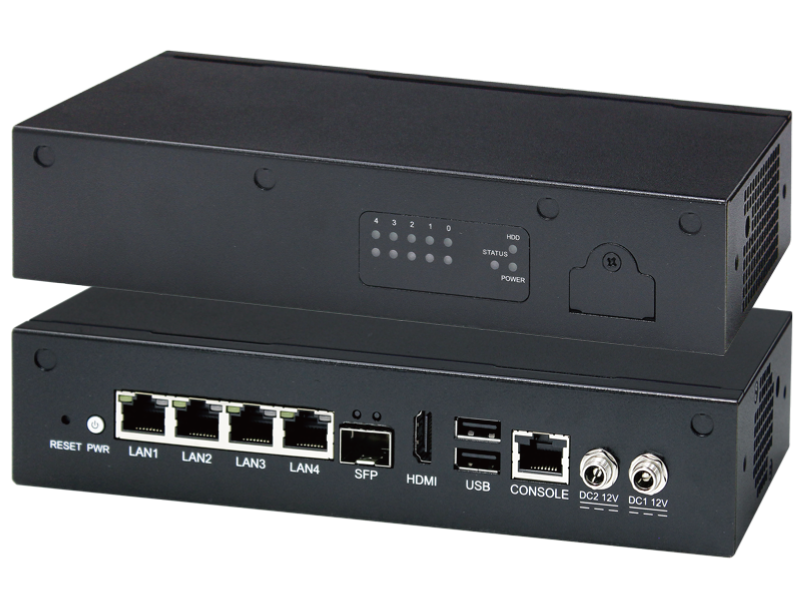

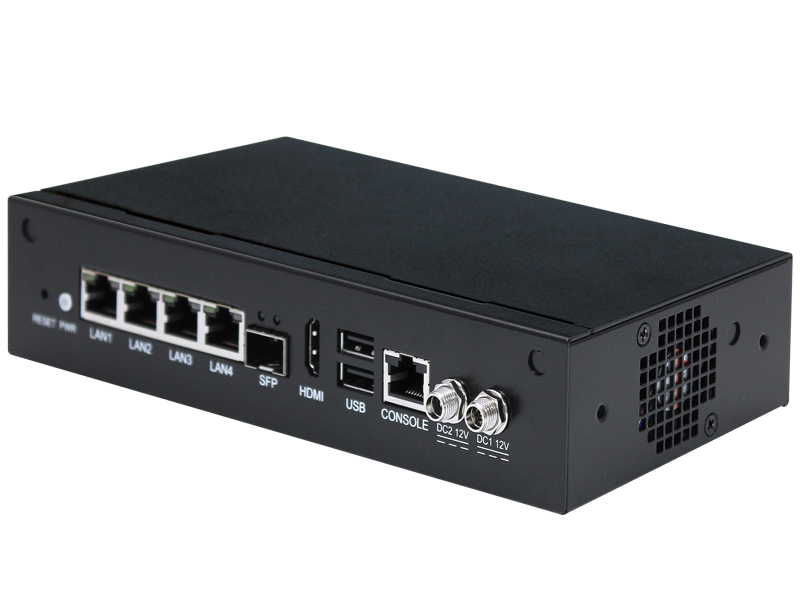

Intel® Elkhart Lake Platform, Desktop Networking Appliance
1. Intel® Elkhart Lake Platform
2. 4 core SoC
3. 1 x SO-DIMM DDR4
4. 1 x 2.5" SSD, & 1 x mSATA
5. Fanless Design
6. Dual DC-in for redundancy
| System |
| CPU | Intel® Celeron® J6412 Processor (4 core) |
| Chipset | Intel®Elkhart Lake SoC |
| Memory | 1 x SO-DIMM DDR4 |
| BIOS | AMI |
| WatchDog Timer | Software programmable 1~255 sec. |
| Video |
| Video Interface | HDMI |
| Ethernet |
| Chipset | Intel® i210 |

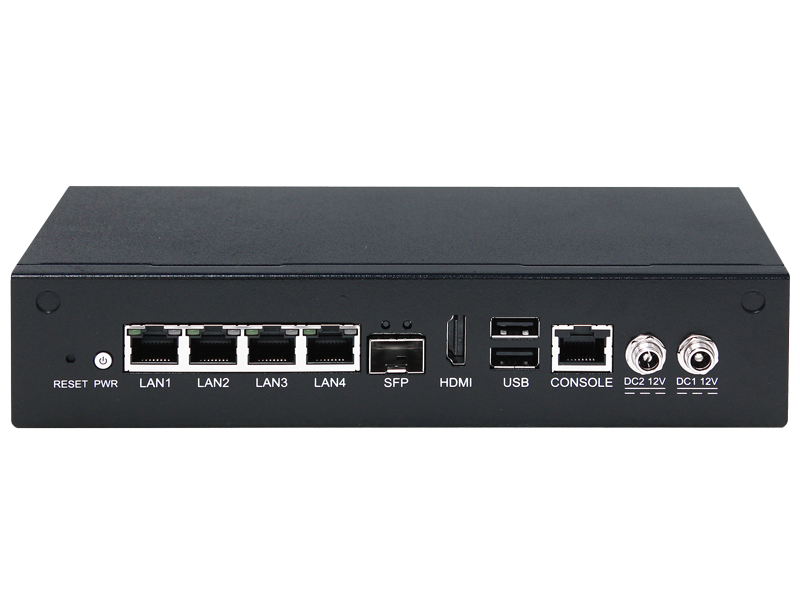

| Connector | 4 x GbE Copper (RJ-45) 1 x 1GbE Fiber (SFP) |
| LAN bypass | None |
| Storage |
| HDD Bay | 1 x 2.5” SATA-III port |
| mSATA | 1 x mSATA socket |
| I/O |
| Console port | 1 x Serial console (RJ-45) |
| USB port | 2 x USB |
| GPIO | 8-bit GPIO (4-In, 4-Out),Optional on-board pin header |
| Expansion | Mini Card Socket (PCIe + USB 2.0, full size) with SIM x1 Mini Card Socket (PCIe, half size) x1 Optional 2nd 4/5G feature (Project base) |
| Antenna port | 6 x SMA for WLAN&4/5GLTE |
| Others |
| Battery | Lithium Battery, 3V 220mAH (CR2032) |
| Hardware Monitoring |
CPU Volt. CPU & SYS Temp. |
| Security | Optional TPM 2.0 (Infineon chipset) |
| Crypto | AES-NI |
| Power Requirement |
| Power Input | 2x DC 12V 40W Adapter |
| Software |
| OS Support | Linux Kernel 4.8 or above, (64-bit) |
| Mechanical & Environment |
| Dimension | 210 (W) x 44 (H) x 105 (D) mm |
| Operating Temp. | 0~ 40°C (32~104°F) |
| Storage Temp. | -20~80°C (-4~176°F) |
| Relative Humidity | 0 to 90% @40°C, non-condensing |
| Certifications | CE, FCC Class A, RoHS 2 |
| Packing List |
| ● 1 x AND-EL6KE1 series system |
| ● 1 x SATA kit |
| ● 2 x USA / EU / JPN / UK / AS / NZS / SA / India power cord |
| ● AC adapter |
| ● 14 x Screw for bracket (for rack + HDD bracket) |
| Ordering Information |
| AND-EL6KE1 | Desktop Networking Appliance Intel® Elkhart Lake platform 4 x GbE Copper 1 x SFP,1x DC 12V Adapter Options for WiFi and 4G |
Specifications are subject to change without notice.
