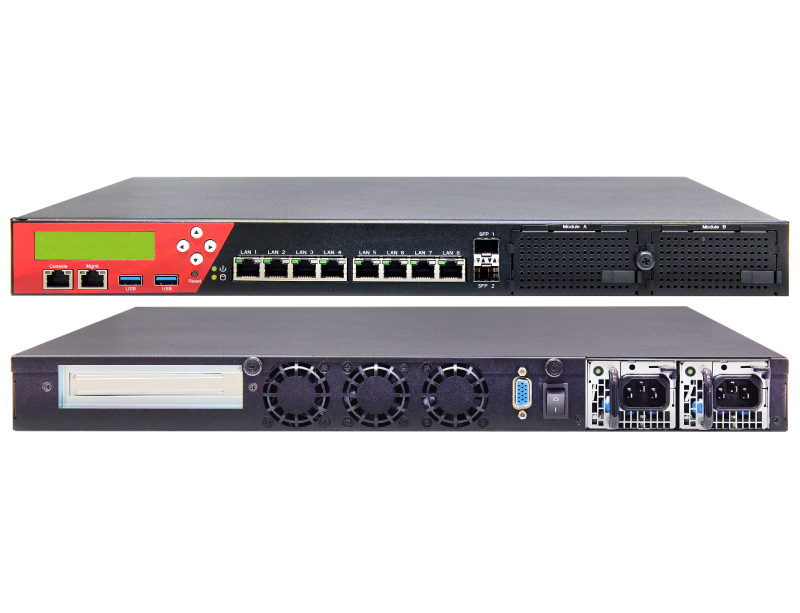

1U Rackmount Network server Intel® 10th Gen Comet Lake-S Xeon W, Core™ i9, i7, i5, i3, 2 Exp. NIMs & 1+1 Redundant PSU
1. Intel® 10th Gen Comet Lake-S Xeon W, Core™ i9/i7/i5/i3
2. 4 x UDIMM DDR4
3. 2 x Exp. NIM (1G/10G/40G, Fiber/Copper/LAN Bypass)
4. 1 x Serial Console (RJ-45)
5. 2 x 1G Fiber
6. 9 x GbE Copper with 2-pairs LAN Bypass
7. 2 x 2.5" SATA-III
8. 1 x M.2
9. Optional for ATX 300W or 1+1 Redundant PSU (300W)
| System |
| CPU | Intel® Xeon® W-1290E Intel® Xeon® W-1270E Intel® Comet Lake-S Core™ i9-10900E Intel® Comet Lake-S Core™ i7-10700E Intel® Comet Lake-S Core™ i5-10500E Intel® Comet Lake-S Core™ i3-10100E |
| Chipset | Intel® W480E PCH |
| Memory | 4 x UDIMM DDR4 |
| BIOS | AMI |
| WatchDog Timer | Software programmable 0~255 sec. |
| Ethernet |
| Ethernet port | 9 x GbE Copper (RJ-45) 2 x 1G Fiber |
| LAN Bypass | 2-Pair Bypass -1st LAN bypass by LAN[1:2] -2nd LAN bypass by LAN[3:4] |
| Storage |
| HDD Bay | 2 x 2.5"/3.5" SATA-III |
| M.2 | 1 x M.2 B key Socket 2242 or 2280 |
| I/O |
| Console port | 1 x Serial Console (RJ-45) |
| USB port | 2 x USB 3.2 Gen1.(Front-Side) |
| Expansion | ANR-W480A1 : 2 x NIM module.(PCIe x 8)(for) ANR-W480A2 : 2 x NIM module (PCIe x 8, PCIe x 4) 1 x PCIe x 8 slot |
| LCD Module | 16 characters x 2 lines with 4-key button(optional) |
| GPIO | 8-bit GPIO (4-In, 4-Out), on-board pin header |
| Exp. NIM | 1G/10G/40G, Fiber/Copper/LAN Bypass |
| Video |
| Video Interface | VGA(Rear-Side) |
| Others |
| Battery | Lithium Battery, 3V 220mAH (CR2032) |
| Hardware Monitoring |
CPU Volt. CPU & SYS Temp. FAN Speeds |
| Security | TPM 2.0 |
| Power Requirement |
| Power Unit | BOM Optional For 1x ATX PSU(300W), 100-240V or 1+1 Redundant PSU(300W), 100-240V |
| Software |
| OS Support | Linux kernel 5.2 and above |
| Mechanical & Environment |
| Dimensions | 440(W) x 44(H) x 470(D)mm |
| Operating Temp. | 0~ 40°C (32~104°F) |
| Storage Temp. | -20~80°C (-4~176°F) |
| Relative Humidity | 0 to 90% @40°C, non-condensing |
| Certifications | CE, FCC Class A, RoHS 2, |
| Model Name |
| ANR-W480A1 | .1U Rackmount Network Server .Intel® 10th Gen Xeon W, Core™ i9/i7/i5/i3 .2 x Exp. NIM (1G/10G/40G, Fiber/Copper/LAN Bypass) .9 x 1G GbE .2 x 1G Fiber .2 x 2.5” SATA-III .1 x M.2 .1+1 Redundant PSU (300W) or ATX PSU (300W) |
| ANR-W480A2 | .1U Rackmount Network Server .Intel® 10th Gen Xeon W, Core™ i9/i7/i5/i3 .1 x Exp. NIM(1G/10G/40G/Copper/Fiber/LAN Bypass) .1 x Exp. NIM(1G/10G/Copper/Fiber/LAN Bypass) .9 x 1G GbE .2 x 1G Fiber .2 x 2.5” SATA-III .1x PCIe x8 slot .1 x M.2 .1+1 Redundant PSU (300W) or ATX PSU (300W) |
| Packing List |
| ● ANR-W480A system x 1 ● SATA cable x 2 ● RJ45 console cable (RJ45 <-> DB9) x 1 ● Rack bracket x 1 ● Box packing x 1 ● Screw pack x 1 |
