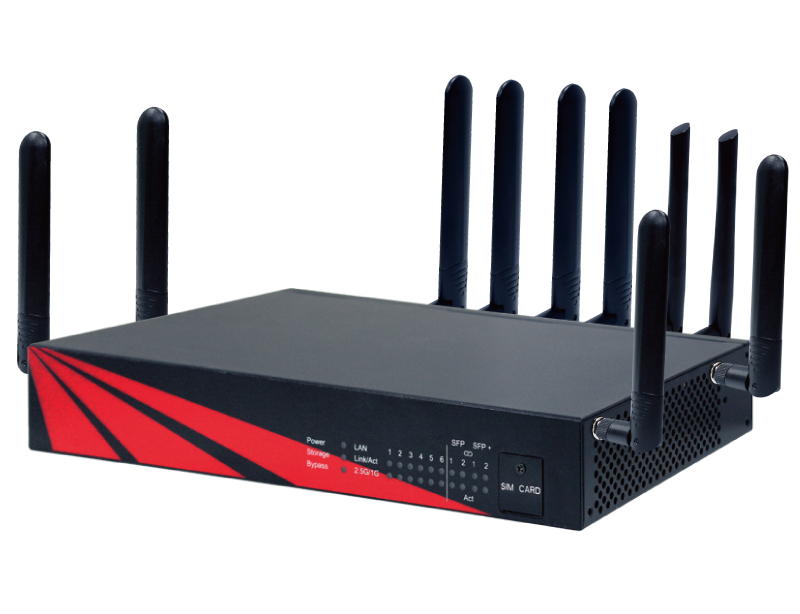

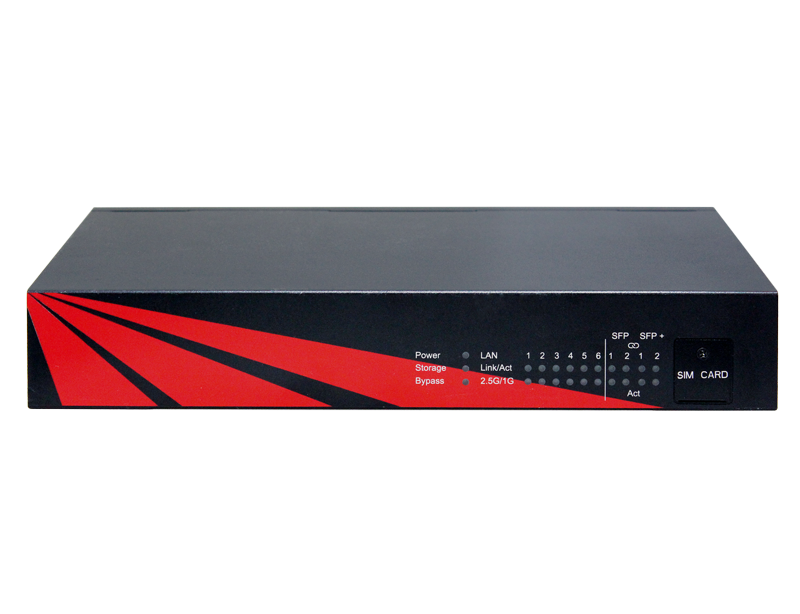

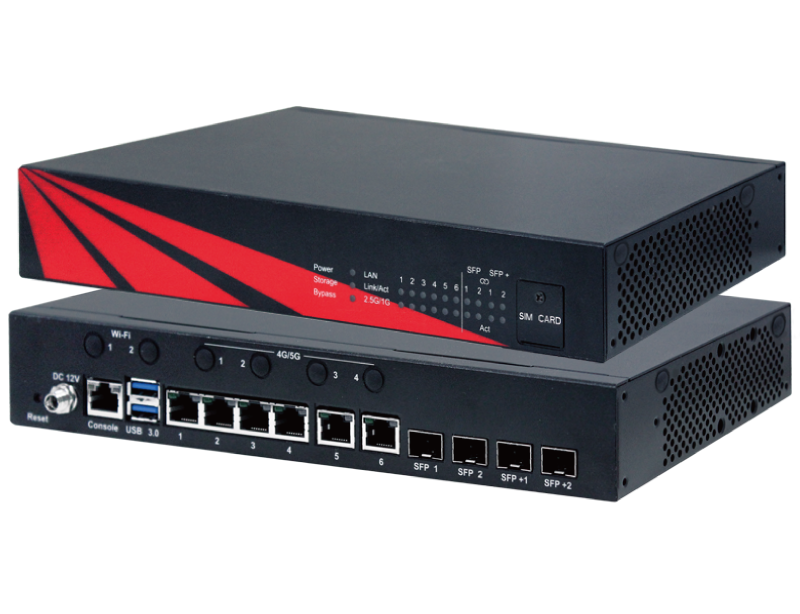

Intel® Atom® C3000 Processor, 6 2.5GbE, 2SFP, 2SFP+ Networking Appliance
1. Intel® Atom® C3338R/C3558/C3758 Processor
2. Support 1 x DDR4 Non-ECC SODIMM
3. Support 6 x 2.5GbE, 2 x 1GbE SFP, 2 x 10GbE SFP+
4. Support 1-pair Bypass
5. Optional 3G, 4G LTE, 5G, WiFi And WiFi 6
System |
CPU | Intel® Atom® C3338R, 2C2T, 1.89GHz Intel® Atom® C3558, 4C4T, 2.20GHz Intel® Atom® C3758, 8C8T, 2.2GHz |
Chipset | Intel® SoC |
Memory | 1 x DDR4 ECC SODIMM |
BIOS | AMI |
WatchDog Timer | Software programmable 1~255 sec. |
Ethernet |
Chipset | Intel® I226, I210IS |
Connector | 6 x GbE RJ-45 & 2 x SFP(B1) 6 x GbE RJ-45 & 2 x SFP & 2 x 10GbE SFP+(B2&B3) |
LAN bypass | 1-pair LAN Bypass |
Storage |
Storage Device | 1 x 2.5” SATA Storage 1 x M.2 2242/2280 B key |
I/O |

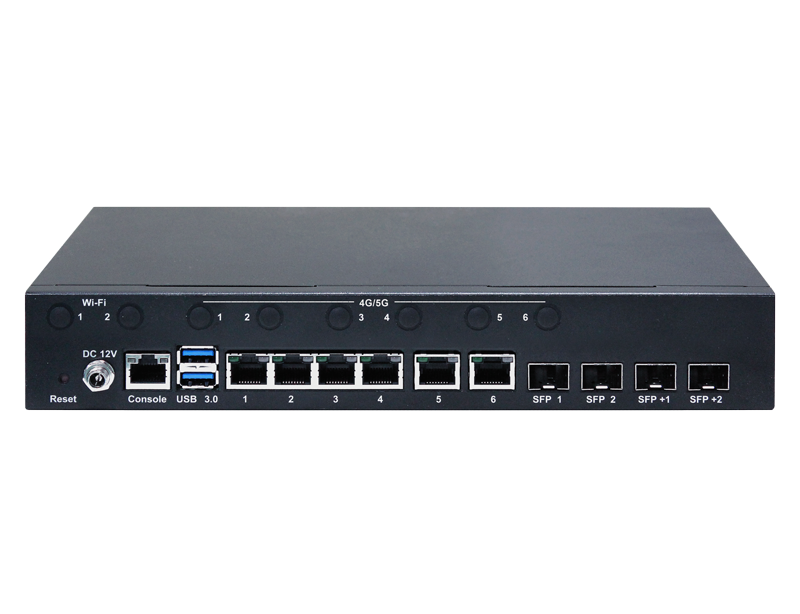

I/O connector | 6 x GbE RJ-45 & 2 x SFP 2 x 10GbE SFP+ (C3558 & C3758 SKU) 2 x USB 3.0 1 x RJ45 Type Console 1 x DC-in DC Jack connectors(12V) 10 x Antenna holes Reset Button LED Indicators 2 x External Easy Access SIM Slots |
Expansion | 1 x M.2 2230 E key(For Install WiFi Module) 1 x M.2 3042/3052 B key(For Install 4G/5G Module) 1 x M.2 2242/2280/3042/3052 B key(Could Install SATA Storage/4G/5G Module) * For B1, default signal is SATA signal, you could change to signal from SATA to USB under BIOS setting |
OS support | Linux Kernel 5.15 LTS & above, (64-bit) |
Others |
TPM | Support TPM 2.0 |
QAT & DPDK | Support QAT&DPDK |
Cooling | Fanless : C3338R, C3558 System Fan : C3758 |
Mechanical & Environment |
Dimensions | 270 x 160 x 44mm (W x D x H) |
Weight | 2.4Kg |
Power Supply |
DC input | DC Jack, 12Vdc 40W Adapter or DC Jack, 12Vdc 60W Adapter |
Packing List |
● AND-DNV3B-system x 1 |
● Power Adapter(12V) x 1 |
● USA/EU/JPN/UK/AS/NZS/SA power cord x 1 |
● Screw Pack x 1 |
Optional Accessories |
● DDR4 |
● WiFI module |
● WiFI6 module |
● 4G Module |
● 5G Module |
Ordering Information |
AND-DNV3B1 | Intel® Atom® C3338R 6x 2.5GbE Copper 2x SFP Include 12V 40W Adapter |
AND-DNV3B2 | Intel® Atom® C3558 6x 2.5GbE Copper 2x SFP, 2x SFP+ Include 12V 40W Adapter |
AND-DNV3B3 | Intel® Atom® C3758 6x 2.5GbE Copper 2x SFP, 2x SFP+ Include 12V 60W Adapter |
Specifications are subject to change without notice.
