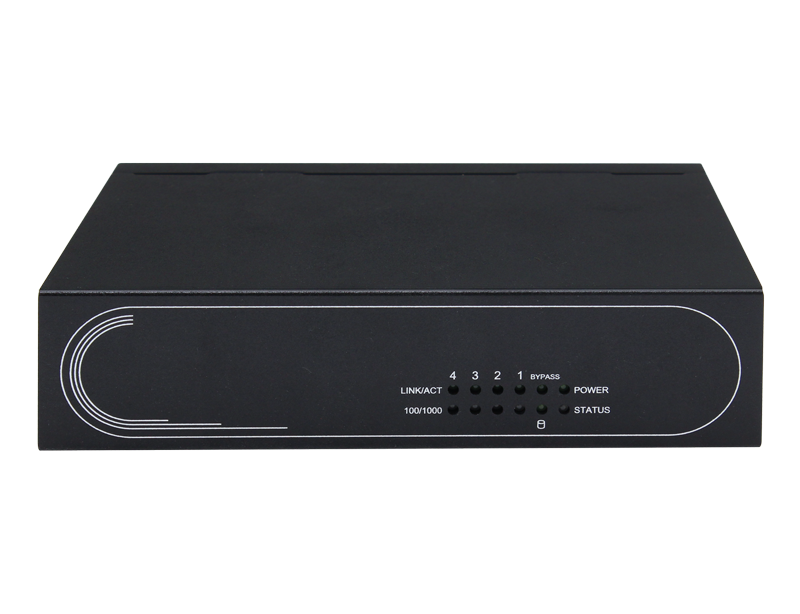

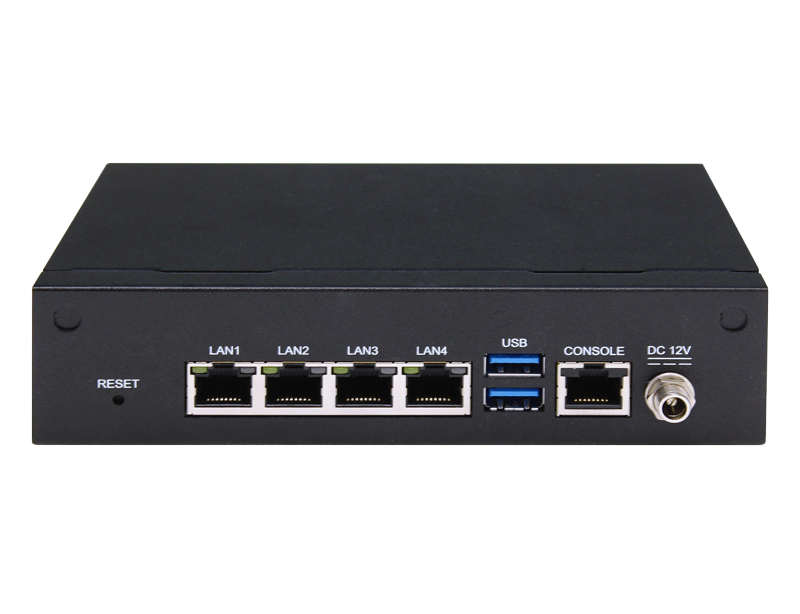

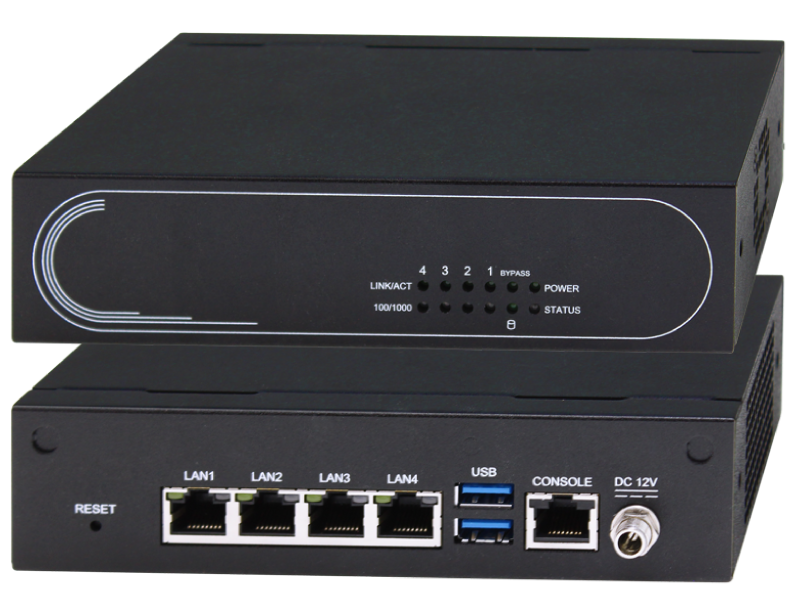

Intel® Apollo Lake Networking Microbox
1. Intel® Apollo Lake Ce leron N3350, Atom E3940
2. On board 2GB LPDDR4 memory, Optional 1x SO-DIMM slot
3. 4 x GbE, 2 x USB 3.2 Gen1
4. 1 x Mini PCIe Expansion
5. 1 x 2.5" SATA 3 bay, On board 8GB eMMC
| System |
| CPU | 1. Intel® Atom®E3940 Quad-core, clock speed 1.6GHz 2. Intel® Celeron® N3350, Dual-core, clock speed 2.41GHz |
| Memory | On board 2GB LPDDR4 memory. Optional 1x DDR3L SO-DIMM slot, Max. 8GB(for E3940) |
| BIOS | AMI UEFI |
| WatchDog Timer | Software programmable 1~255 sec. |
| Video |
| Graphic Controller |
Integrated graphics support for processors with Intel Graphics Technology |
| Ethernet |
| Chipset | 4 x Intel® i210 |
| Connector | 4 x GbE RJ-45 with LED |
| LAN bypass | 1 pair Bypass (for N3350) |
| Storage |
| SATA | 1 x SATAIII port |
| EMMC | On board 8GB eMMC |
| HDD Bay | 1 x 2.5” HDD Bay |
| I/O |
| Expansion | 1 x Mini PCIe socket with SIM socket (for E3940) |
| Console Port | 1 x Console (1 x RJ45) |
| USB | 2 x USB 3.2 Gen1 |
| Antenna Hole | Optional 2 x SMA for Wi-Fi (or 4G) (for E3940) |
| Power Requirement |
| Power Input | DC in 12V / Adapter |
| Software |
| OS Support | Linux Kernel 4.1.27 |
| Mechanical & Environment |
| Dimension | 165 x 92 x 40 mm |
| Operating Temp. | 0~40°C |
| Storage temp | -20~80°C |
| Packing List |
| ● 1 x AND-APL1E-system |
| ● 1 x SATA Cable |
| ● 1 x SATA Power Cable |
| ● 1 x Power Adaptor |
| ● 1 x Power Cord (Option for USA/UK/EU/JPN/AU/RSA) |
| Ordering Information |
| AND-APL1E1 | Intel Celeron N3350 Dual Core SoC 4x GbE, 1 pair LAN Bypass 2x USB 3.2 Gen1, 1x SATA3, |
| AND-APL1E2 | Intel Atom E3940 Quad Core SoC 4x GbE, 2x USB 3.2 Gen1, 1x SATA3, 1x mPCIe for WiFi or 4G |
Specifications are subject to change without notice.
