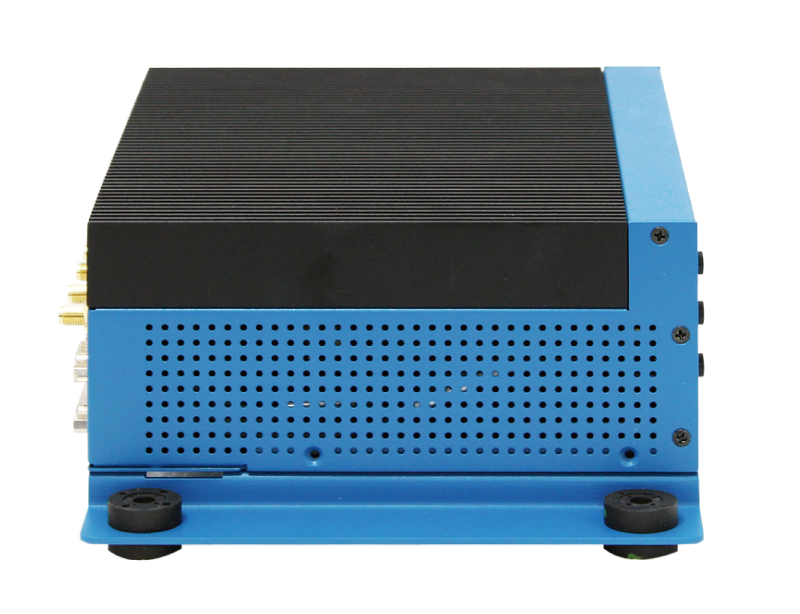

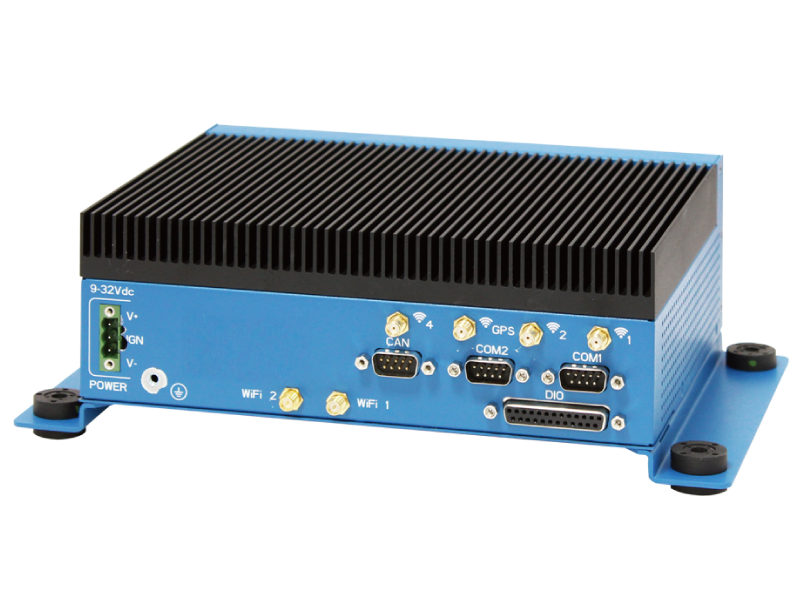

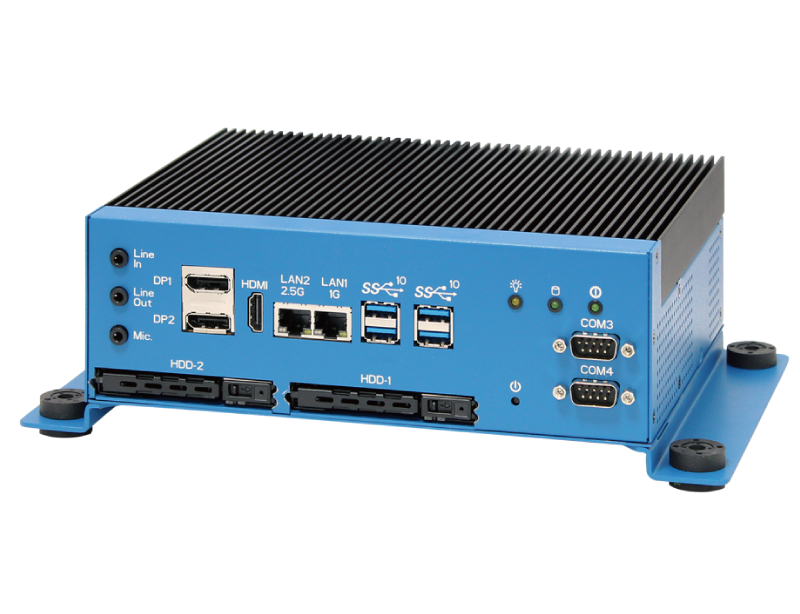

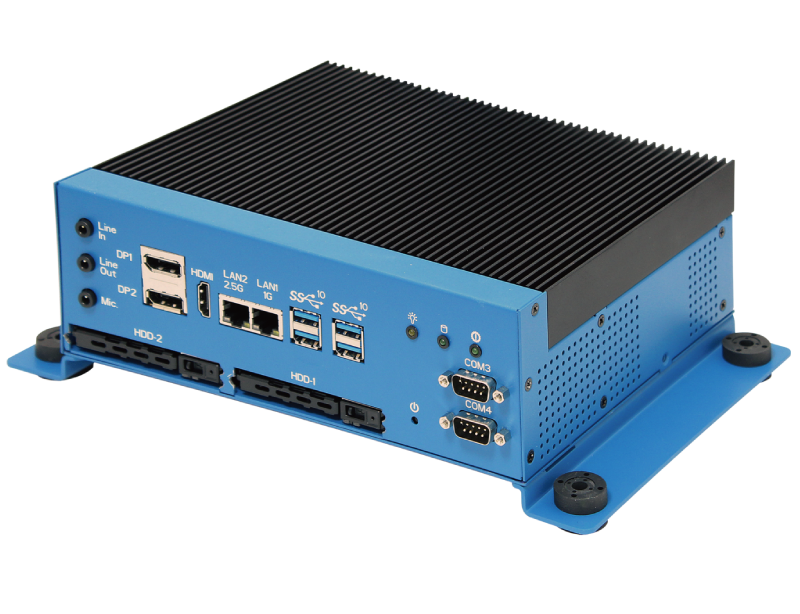

11th Gen Intel® CoreTM i7/i5/i3 Processor(Tiger Lake) Fanless In-Vehicle Computer AIV-TGH7E
1. Intel® 11th Generation Core™ i7/i5/i3 Processor
2. Support 1 DDR4 3200 SODIMM, up to 32GB
3. Support 2.5GbE, USB 3.2 Gen2
4. CAN Bus provide
5. Two front easy access 2.5” SATA III storage bay
6. 9-32Vdc w/in-vehicle power ignition control
7. Fanless design
8. Wide Operating Temperature -40~65°C
| System |
| CPU | Intel® 11th Generation Core™ i7/i5/i3 Processor(Tiger Lake- H) i7-11850HE (8C/16T, 2.60GHz, up to 4.70GHz) i5-11500HE (6C/12T, 2.60GHz, up to 4.50GHz) i3-11100HE (4C/8T, 2.40GHz, up to 4.40GHz |
| Chipset | Intel® HM570E |
| Memory | 1 DDR4-3200 Memory supports up to 32GB (ECC) |
| Video |
| Graphic Controller |
Intel® Iris® X Graphics |
| Video Interface | 1 x HDMI , 2 x DP |
| Storage |
| SATA | 2 x SATA III (6Gbps) support S/W RAID 0, 1 |
| Storage Device | 2 x Front-access 2.5" SSD/HDD Tray |
| I/O |
| LAN | LAN 1 : RJ45 Type Intel® I225 2.5GigE LAN LAN 2 : RJ45 Type Intel® I219 GigE LAN |
| Serial | 2 x DB9 Type RS-232/RS422/485 2 x DB9 Type RS-232 |
| USB | 4 x Type A USB 3.2 Gen2 |
| DIO | 16 x DIO, DB25 Type connector |
| Audio | 1 x Mic-in, 1 Line-in, 1 Line-out |
| CAN BUS | 1 x DB9 CANBu |
| LED | Power, HDD, Status |
| Button | 1 x Power Press Button |
| Antenna Hole | 6 x Antenna Holes |
| Expansion |
| Mini PCIe | 1 x Half Size Mini PCIe slot |
| M.2 | 1 x M.2 B Key(3052) |
| SIM Slot | 1 Nano SIM Slot (Internal) |
| Others |
| TPM | Optional By Request |
| Watchdog Timer | 255 Levels |
| Smart Management |
Wake on LAN, PXE supported |
| HW Monitor | Monitoring temperature, voltages. Auto throttling control when CPU overheats. |
| Software |
| OS Support | Windows 10, Linux |
| Power Requirement |
| Power Input | 9V to 32V, DC-in |
| Power Interface | 3-pin Terminal Block : V+, IGN, V- With Power Ignition Control |
| Mechanical & Environment |
| Dimension | 220mm(W) x 175mm(D) x 73mm(H) (8.66" x 6.89" x 2.87") |
| Weight | TBD |
| Mounting | Wallmount |
| Operating Temperature |
-40°C to 65°C (-40°F to 149°F) |
| Storage Temp | -40°C to 80°C (-40°F to 176°F) |
| Humidity | 5% to 90% Humidity, non-condensing |
| Shock | IEC 60068-2-27 SSD : 50G @ wallmount, Half-sine, 11ms |
| Vibration | IEC 60068-2-64 SSD : 5Grms, 5Hz to 500Hz, 3 Axis |
| EMC | CE / FCC class A/ E-Mark |
| Packing List |
| ● 1 x AIV-TGH7E |
| ● 2 x Wall mount bracket |
| ● 1 x 3-Pin Terminal block |
| ● 1 x Screws Package |
| Order Information |
| AIV-TGH7E7-A10 | AIV-TGH7EX, Intel i7-11850HE, CANBus |
| AIV-TGH7E5-A10 | AIV-TGH7EX, Intel i5-11500HE, CANBus |
| AIV-TGH7E3-A10 | AIV-TGH7EX, Intel i3-11100HE, CANBus |
| Ordering Information |
| DDR4 32G | Certified DDR4 32GB 3200MHz RAM |
| DDR4 16G | Certified DDR4 16GB 3200MHz RAM |
| DDR4 8G | Certified DDR4 8GB 3200MHz RAM |
| DDR4 4G | Certified DDR4 4GB 3200MHz RAM |
| 5G Module | 5G & GNSS Module with 2 Antennas, 1 GPS antenna |
| 4G Module | 4G & GNSS Module with 3 Antennas, 1 GPS antenna |
| WiFi & Bluetooth Module | WiFi & Bluetooth Module with Dual Antenna |
Specifications are subject to change without notice.
