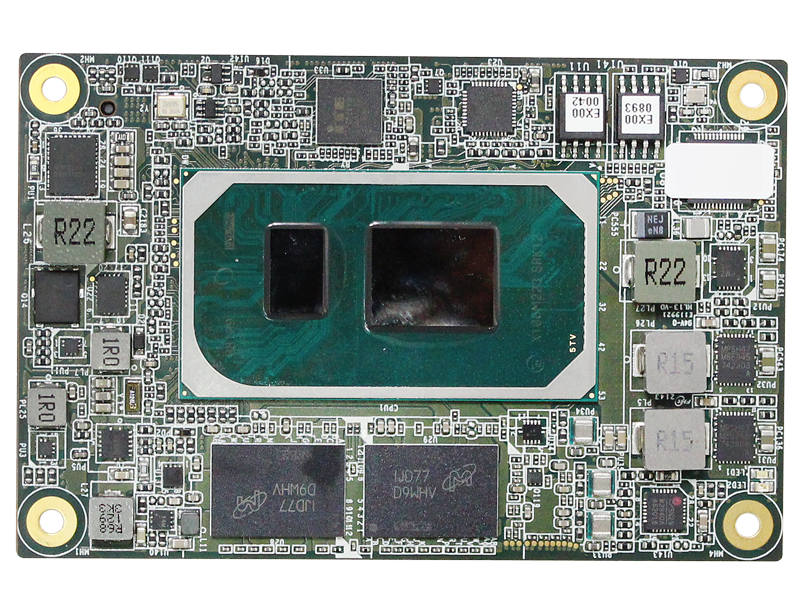

1. 11th Generation Intel® Core™ Processor Family(formerly Tiger Lake UP3)
2. Onboard LPDDR4x Memory 16 GB
3. 2.5 Gigabit Ethernet x 1
4. eDP x 1 , DDI x 1
5. High Definition Audio Interface
6. SATA3.0 x 2 , onboard PCIe SSD 64GB
7. USB 2.0 x 8, USB 3.2/2.0 x 2 (up to USB 3.2 Gen 2 support)
8. 4 x PCI-Express x 1
9. COM Express Type 10, Mini Size, 84 mm x 55 mm
| System |
| CPU | Intel® 11thCore™ I Processor |
| Chipset | SoC |
| Memory | Onboard LPDDR4 4266 memory 16GB In-band ECC supported by SoC |
| BIOS | AMI |
| WatchDog Timer | Software programmable 0~255 sec |
| Video |
| Graphic Controller |
Intel® Irix XE Graphic Intel® UHD Graphics for 11th Gen processor |
| Video Interface | 1 x eDP 1 x DDI port |
| Storage |
| SATA | 2 x SATA III with 6Gb/s |
| Storage | Onboard PCIe NVMe SSD 64GB |
| I/O |
| Ethernet Chip | 1 x Intel I225LM GbE Lan, supports PXE Boot |
| Expansion Interface | 4 x PCI-e 3.0 Lanes ● 4 x PCI-e 3.0 x1 |
| Serial Interface |
2 x COM port Interface (TX/RX only) |
| USB | 2 x USB 3.2 Gen2, 8 x USB 2.0 |
| GPIO | 8-bit Digital I/O |
| Audio Codec | High Definition Audio interface |
| Software |
| OS Support | Windows 10 / Linux |
| Mechanical & Environment |
| Dimension | 84 mm x 55 mm (3.31" x 2.17") COM Express type 10 |
| Weight | TBD |
| Operating Temp. | 0~60oC (32~140oF) |
| Storage Temp. | -20~70oC (-4~158oF) |
| Relative Humidity | 0 to 90%, non-condensing |
| Safety | CE, FCC Compliant |
| Packing List |
| 1 x ACM-TGLUE0 |
| 1 x CD Title |
| 1 x Quick Guide |

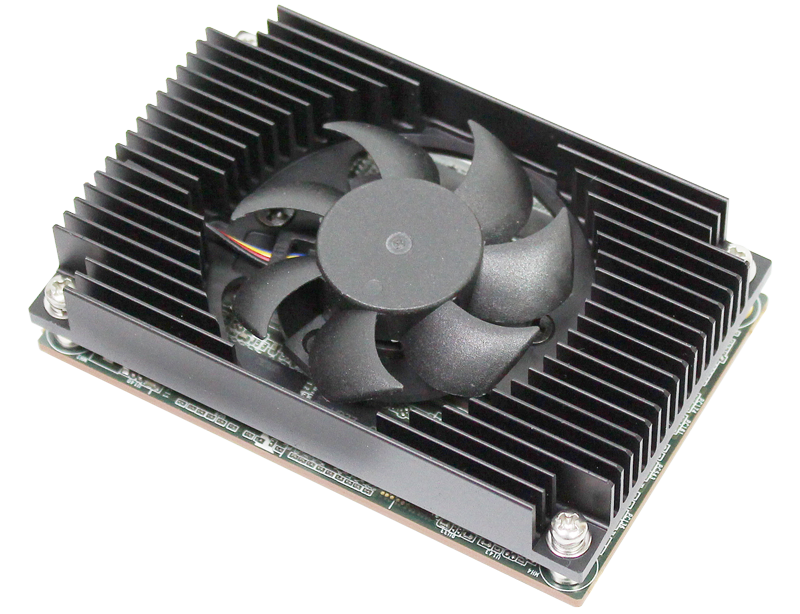

| CPU cooler.84*55*18 mm.Black. |
| Heat Spreader.84x55x11mm.Black |
| Ordering Information |
| ACM-TGLUE0-A0 | Intel 11th core i7-1185GRE(40°C~85°C) |
| ACM-TGLUE0-A1 | Intel 11th core i7-1187G7E (0°C ~ 60°C) |
| ACM-TGLUE0-A2 | Intel 11th core i5-1145G7E (0°C ~ 60°C) |
| ACM-TGLUE0-A3 | Intel 11th core i3-1115G4E (0°C ~ 60°C) |
| CPU Support |
| CPU | Core/ Thread |
Base Frequency /Turbo |
TOP | Graphic | In-band ECC |
Operating Temp |
| i7-1185G7E | 4/8 | 1.8GHz/4.4GHz | 15W (UP to 28W) |
Intel®Iris® Xe Graphics |
No | Commercial Temp |
| i5-1145G7E | 4/8 | 1.5GHz/4.1GHz | Intel®Iris® Xe Graphics |
No | Commercial Temp |
|
| i3-1115G7E | 2/4 | 2.2GHz/3.9GHz | Intel®UHD Graphics |
No | Commercial Temp |
|
| i7-1185G7E | 4/8 | 1.8GHz/4.4GHz | Intel®Iris® Xe Graphics |
Yes | Embedded/Industrial Extended Temp. |
|
| i5-1145G7E | 4/8 | 1.5GHz/4.1GHz | Intel®Iris® Xe Graphics |
Yes | Embedded/Industrial Extended Temp. |
|
| i3-1115G7E | 2/4 | 2.2GHz/3.9GHz | Intel®UHD Graphics |
Yes | Embedded/Industrial Extended Temp. |
|
| Celeron 6305E | 2/2 | 1.8GHz/... | 15W | Intel®UHD Graphics |
No | Commercial Temp |
Specifications are subject to change without notice.
