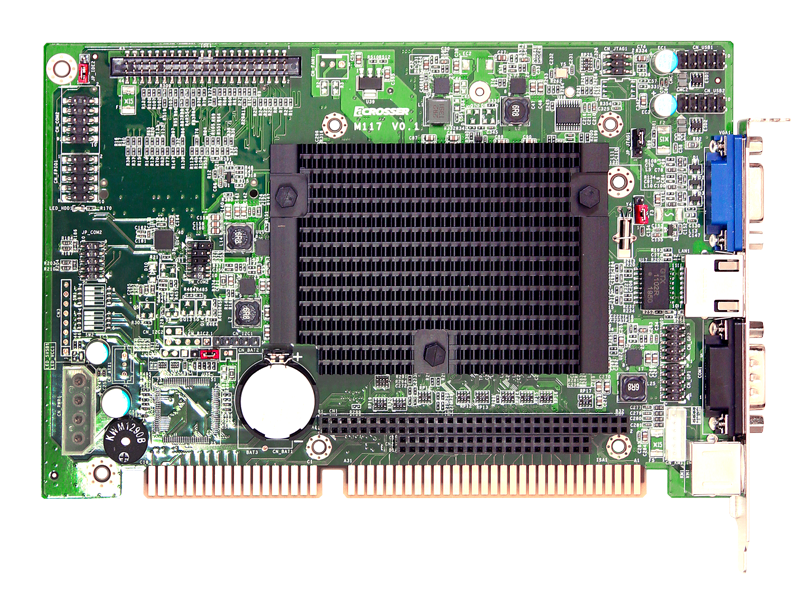

Fanless ISA Bus DM&P Vortex86DX3 Dual core 1GHz SBC
| Ethernet | 1 xRJ45 10/100 Mbps LAN |
| Expansion Slot | 1 x PC/104,I x ISA gold finger |
| Serial Port | ● COM1 RS-232 (1 x DB9) ● COM2 RS-232/422/485 (Pin header) |
| USB | 4 x USB 2.0 (4 x pin header) |
| GPIO | 16-bit Digital I/O |
| Parallel Port | 1 x LPT (1 x pin header) |
| Keyboard/Mouse | ● 1 x PS/2 ● 1 x JST |
1. Fanless Design
2. Onboard DM&P Vortex86DX3 1GHz dual core
3. Onboard 1GB DDR3 SDRAM
4. IDE, CF,Sata
5. PC/104 & ISA Interface
6. 2 x COM, 4 x USB 2.0, VGA, 1 xRJ45 10/100 Mbps LAN
| System |
| CPU | Onboard DM&P Vortex86DX3 1GHz, |
| Memory | Onboard DDR3 512MB SDRAM |
| BIOS | AMI |
| WatchDog Timer | Software programmable 0~255 sec.(0=disable) |
| Video |
| Graphic Controller | Integrated |
| Video Memory | shared with main memory(16/32MB) |
| Video Interface | 1 x VGA (DB15) |
| Storage |
| IDE | 1 x IDE (44-pin) |
| SATA | 1 x msata(Reserved) |
| CF | 1 x CF Card |
| I/O |
| Ethernet | 1 xRJ45 10/100 Mbps LAN |
| Expansion Slot | 1 x PC/104,I x ISA golden finger |
| Serial Port | ● COM1 RS-232 (1 x DB9) ● COM2 RS-232/422/485 (Pin header) |
| USB | 4 x USB 2.0 (4 x pin header) |
| GPIO | 16-bit Digital I/O |
| SRAM | 512K (Reserved) |
| Keyboard/Mouse | ● 1 x PS/2 ● 1 x JST |
| FPIO | 1 x FPIO |
| Power Requirement |
| Power Input | AT:5V + 12V input |
| Software |
| OS Support | Windows XP, Windows Embedded CE 6.0, Windows 7 (32 bits),DOS |
| Mechanical & Environment |
| Dimension | 185mm x 122mm (7.29" x 4.81") |
| Operating Temp. | 0~60oC (32 ~140oF) |
| Storage Temp. | -20~80°C (-4~176°F) |
| Relative Humidity | 0 to 90% @ 40°C, non-condensing |
| Safety | CE, FCC compliant |
| Packing List |
| ● 1 x AMB-VDX3H2 |
| ● 1 x Quick user guide |
| Ordering Information |
| AMB-VDX3H2A | 1 x AMB-VDX3H2A (1GHz CPU/512MB Memory, 1 x RS232/ 1 x RS232/RS422/RS485) CF+IDE 1 x Quick User Guide |
| AMB-VDX3H2A1 | 1 x AMB-VDX3H2A1 (1GHz CPU/512MB Memory, 1 x RS232/ 1 x RS232/RS422/RS485) CF+mSata 1 x Quick User Guide 1 x Utility CD |
| accessory | ACC-VDX3H2: 1 x 44-pin IDE cable 1 x DB9 cable w/bracket 1 x 2 port USB cable w/bracket 1 x KB/MS Y-cable |
Specifications are subject to change without notice.
