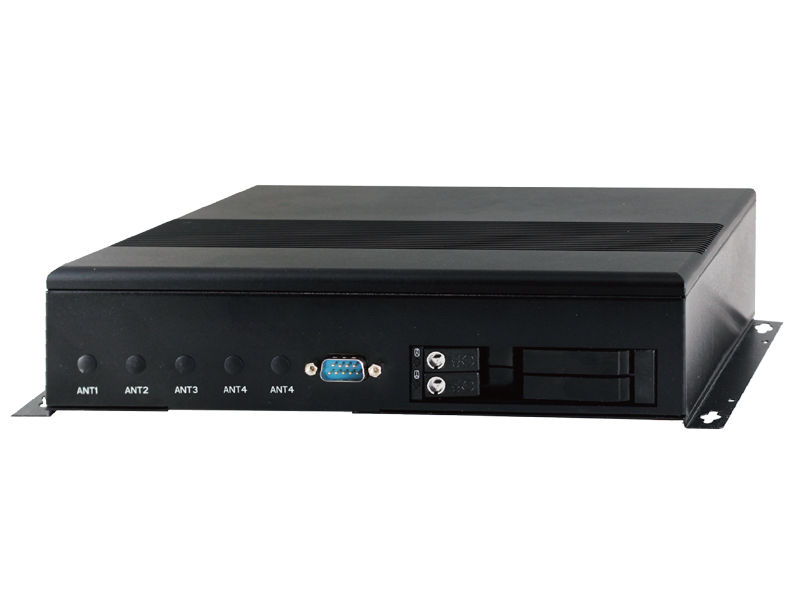

IVS-60A1, this powerful in-vehicle computer equipped with Intel Apollo lake SoC chipset and supported up to 8GB DDR3L 1866 MHz SO-DIMM memory. AIV-IVS-60A1 had built-in various car computing and communication technologies such as WiFi, Bluetooth, CAN-Bus, vehicle power management,and 3G/4G, can provide powerful communication ability to different scenarios.Moreover, AIV-APL1V1FL also equipped 2 x swappable 2.5”HDD bay which can provide massive data saving and processing during communication.
1. Rugged fan-less design
2. Support New Intel Pentium N4200 processors
3. 1 x DDR3L 1866 MHz SO-DIMM, up to 8GB
4. Support CAN 2.0A/2.0B & J1939 protocol(By SKU)
5. VGA & DVI video output
6. 2 x swappable 2.5” HDD bay
7. Variety Wireless Communication
8. Support 9-36Vdc with power ignition
| System |
| CPU | Intel® Pentium ™-N4200 |
| Chipset | Intel Apollo lake SoC |
| Memory | 2 x DDR3L 1866 MHz ,SO-DIMM, support up to 8GB |
| Video |
| Graphic Controller |
Intel HD Graphics 505 |
| Video Interface | 1 x VGA port (DB15) ,1 x DVI |
| Storage |
| SATA | 2 x SATA III port |
| Disk Bay | 2 x swappable 2.5” Disk bay with Anti-vibration/ Anti-shock solution for SSD only |
| I/O |
| Expansion slot | 3 x Mini PCI-e(Reserve for Wi-Fi and 4G LTE) |
| Ethernet | 2 x GbE RJ45, Intel i210AT |
| Serial Port | 1 x RS-232/422/485 3 x RS-232 |
| USB | 4 X USB 3.0 |
| GPIO | 8-bit GPIO (4 In, 4 Out) |
| Audio | 1 x MIC in 1 x Audio out |
| Antenna Hole | 1 x SMA for GPS 1 x SMA for 4G 2 x SMA for Wi-Fi & Bluetooth |
| SIM | SIM Slot x 2, SIM card changeable without opening case, latch to protect SIM uncertainly touch |
| CAN BUS | DB9 connector, support CAN 2.0A/2.0B protocol (J1939 for optional) |
| TPM | On-board TPM 1.2 / 2.0 (By Request) |
| Others Feature |
| WatchDog Timer | 1~255 sec. software programmable(0=Disable) |
| Power Requirement |
| Power Input | 9-36Vdc with power ingition |
| Software |
| OS Support | Windows 10 (64 bit) / Linux kernel to 4.4 or above(64 bit) |
| Mechanical & Environment |

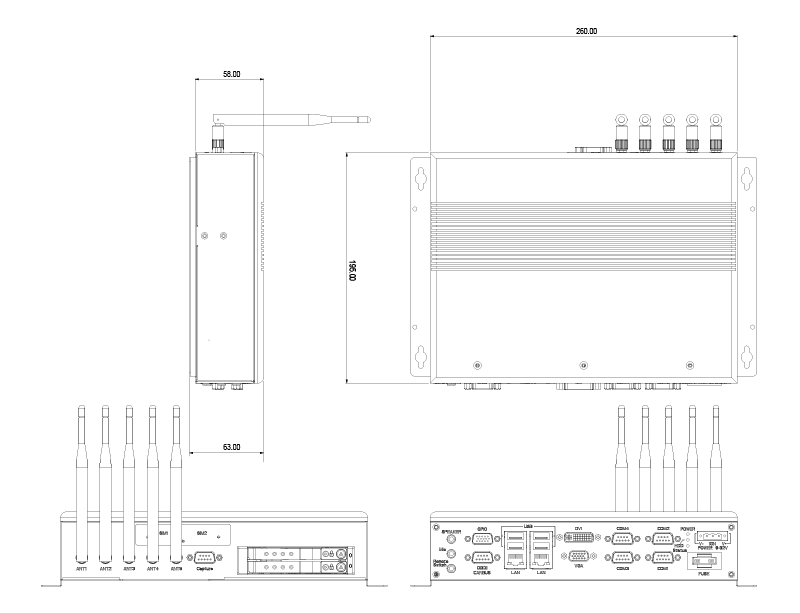

| Dimension | 260mm x 195mm x 63mm |
| Operating Temp | -25°C ~ 60°C |
| Vibration | IEC 60068-2-64, 5~500Hz, 3GRMS(SSD) |
| Shock | IEC 60068-2-27, 50G 500m/s2 11MS |
| Storage Temp | -40~80°C (-40~176°F) |
| Safety | CE, FCC class B, E-Mark |
| Smart In-Vehicle Power Management |
| O/S Anti-Crash | Smart O/S boot/shut-down control by power subsystem |
| System boot / Shut-down delay |
Delay time from 0 seconds to 60 minutes setting in BIOS |
| System boot fail retry |
3 times boot fail retry |
| Power on/off switches |
● System power switch by remote cable switch ● System power input serial connection to car battery and ignition switch |
| Packing List |
| ● 1 x IVS-60A1 |
| ● 1 x User Guide CD with Driver |
| ● 1 x GPIO/CAN Cable |
| ● 1 x Terminal block (Plug-DC connecter) |
| ● 1 x Remote Switch Cable |
| ● 1 x Antenna for GPS(option) |
| ● 1 x Antenna for Wi-Fi & Bluetooth (option) |
| ● 1 x Antenna for 4G LTE(option) |
| ● 1 x Spare Fuse |
| Ordering Information |
| IVS-60A1-01 | Intel Pentium N4200+CAN 2.0 |
| IVS-60A1-02 | Intel Pentium N4200+OBD II |
| Ordering Modules |
| EC20/EC25 | Quectel 4G + GPS + Glonass module |
| MC7455/MC7430 | Sierra 4G + GPS + Glonass module |
| Jwx6058 | Qualcomm. (QCA6174A-5) Wi-Fi5+BT5.0 |
| SC330N4 | Yuan Analog Capture card 4ch With Testing Cable |
| G-SenSor | G-SenSor board |
Specifications are subject to change without notice.
